Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

11 part groups · 2 illustrations

Illustrations

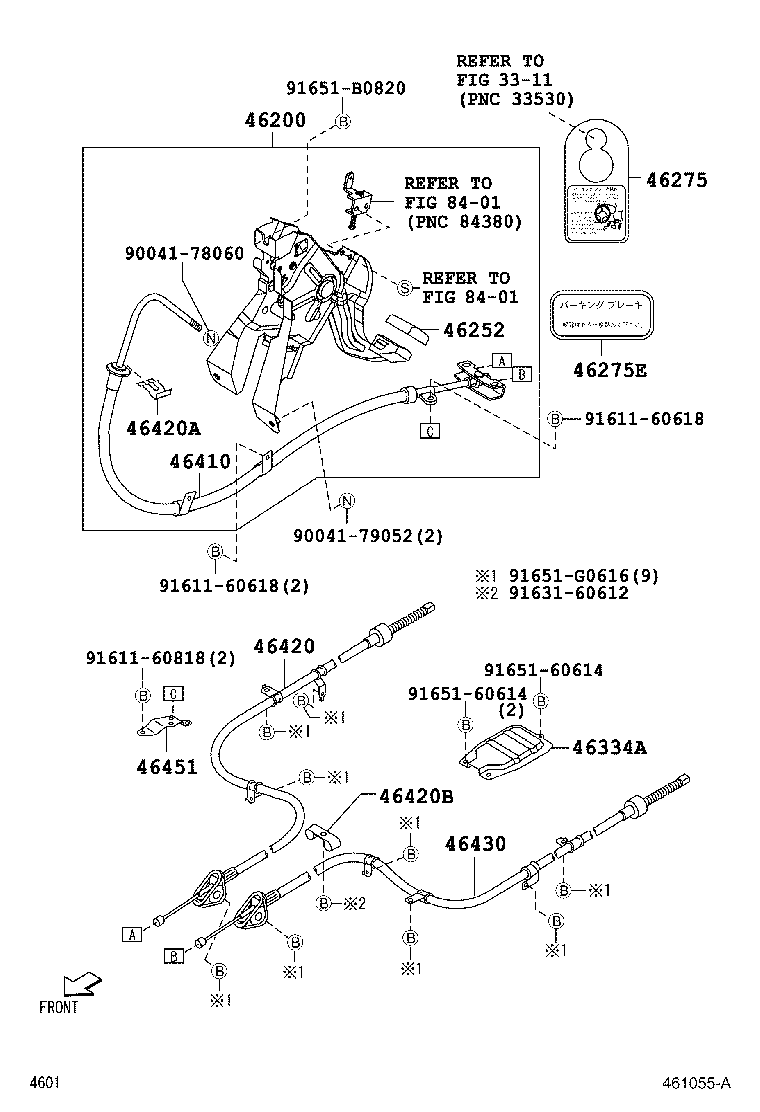

Figure 461054A 461054A 2004-05 → 2010-02 Figure 461055A 461055A 2004-05 → 2010-02

Part groups

PNCDescription
46200 Pedal Assy, Parking Brake Control
46252 Pad, Parking Pedal
46275 Plate, Parking Brake Release Caution
46275E Label, Parking Brake Release Information
46334A Protector, Parking Brake Cable Joint
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46451 Bracket, Cable Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
