Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 3 illustrations

Illustrations

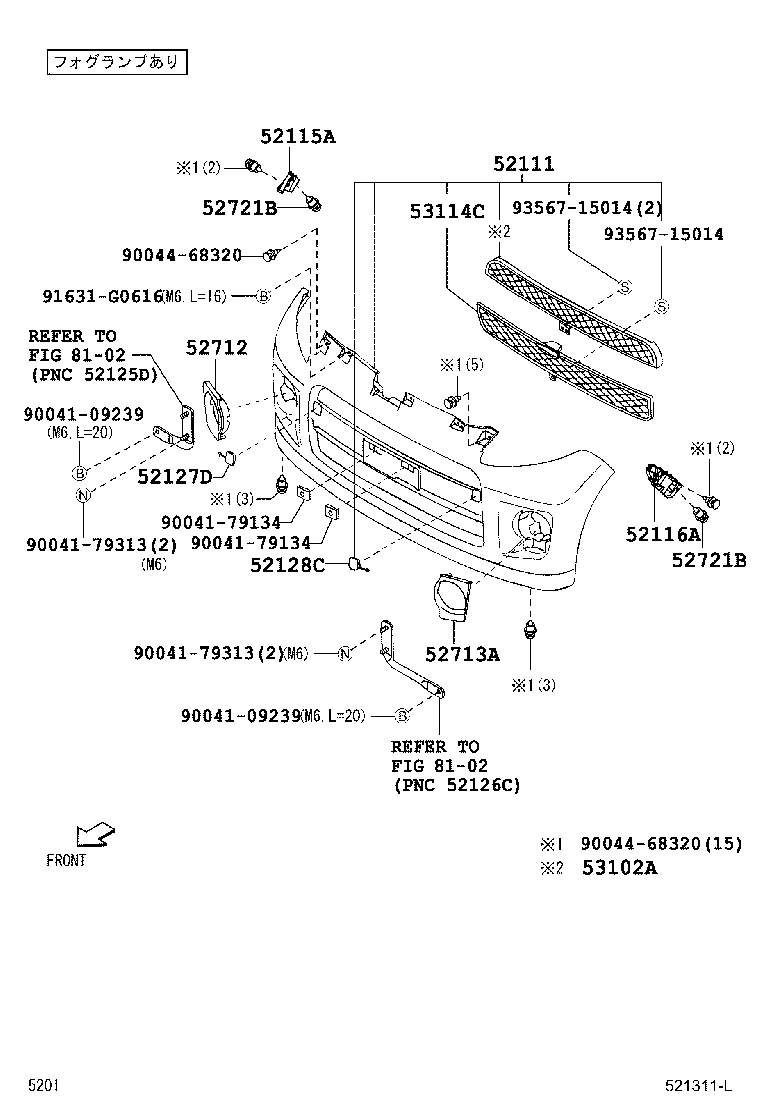

Figure 521235K 521235K 2004-05 → 2006-12 Figure 521677E 521677E 2006-12 → 2010-02 Figure 521311L 521311L 2004-12 → 2010-02

Part groups

PNCDescription
52111 Bumper Assy, Front
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
52721B Clip, Front Bumper Extension Moulding, NO.2
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53113E Grille, Radiator, Lower NO.2
53114C Grille, Radiator, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
