Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

9 part groups · 2 illustrations

Illustrations

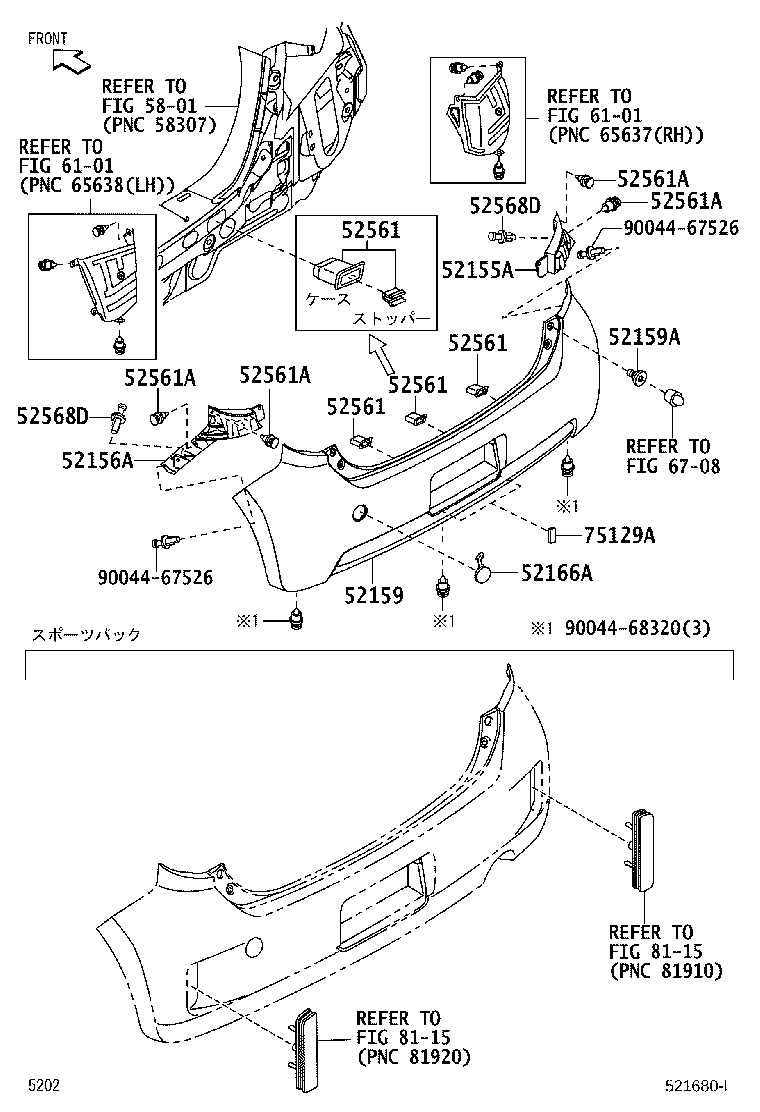

Figure 521236U 521236U 2004-05 → 2006-12 Figure 521680I 521680I 2006-12 → 2010-02

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52159A Bolt(FOR REAR BUMPER COVER)
52166A Cover, Rear Bumper, Upr LH
52561 Retainer, Rear Bumper, Upper Center
52561A Clip(FOR REAR BUMPER RETAINER)
52568D Retainer, Rear Bumper, Upper NO.2
75129A Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
