Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

17 part groups · 2 illustrations

Illustrations

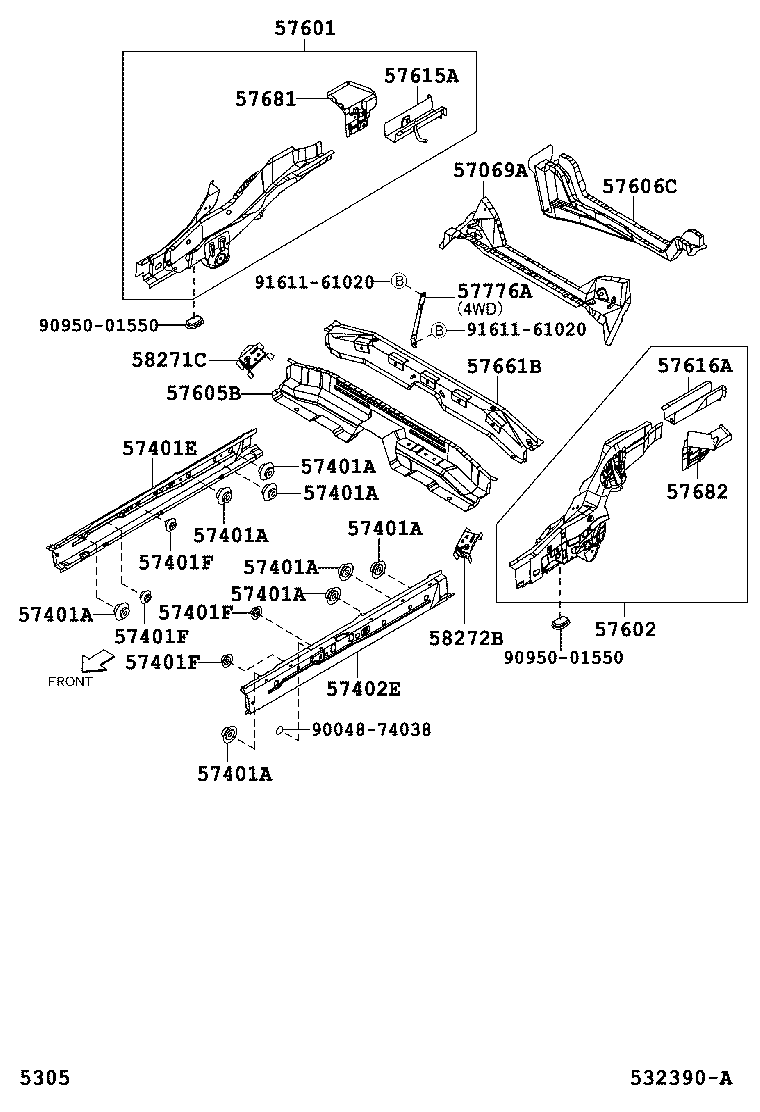

Figure 531793F 531793F 2004-05 → 2006-12 Figure 532390A 532390A 2006-12 → 2010-02

Part groups

PNCDescription
57069A Member, Rear Floor, Center
57401A Plug, Hole(FOR MAIN FLOOR SIDE MEMBER)
57401E Member Assy, Floor Side, RH
57401F Plug, Hole
57402E Member Assy, Floor Side, LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57606C Member Sub-assy, Rear Floor Cross, NO.2
57615A Member, Rear Floor Side, Rear RH
57616A Member, Rear Floor Side, Rear LH
57661B Member, Rear Floor Cross, Front
57681 Bracket, Rear Shock Absorber, RH
57682 Bracket, Rear Shock Absorber, LH
57776A Brace, Rear Lower Arm Bracket
58271C Reinforcement, Belt Anchor TO Froor Pan, NO.3
58272B Reinforcement, Belt Anchor TO Floor Pan, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
