Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

21 part groups · 2 illustrations

Illustrations

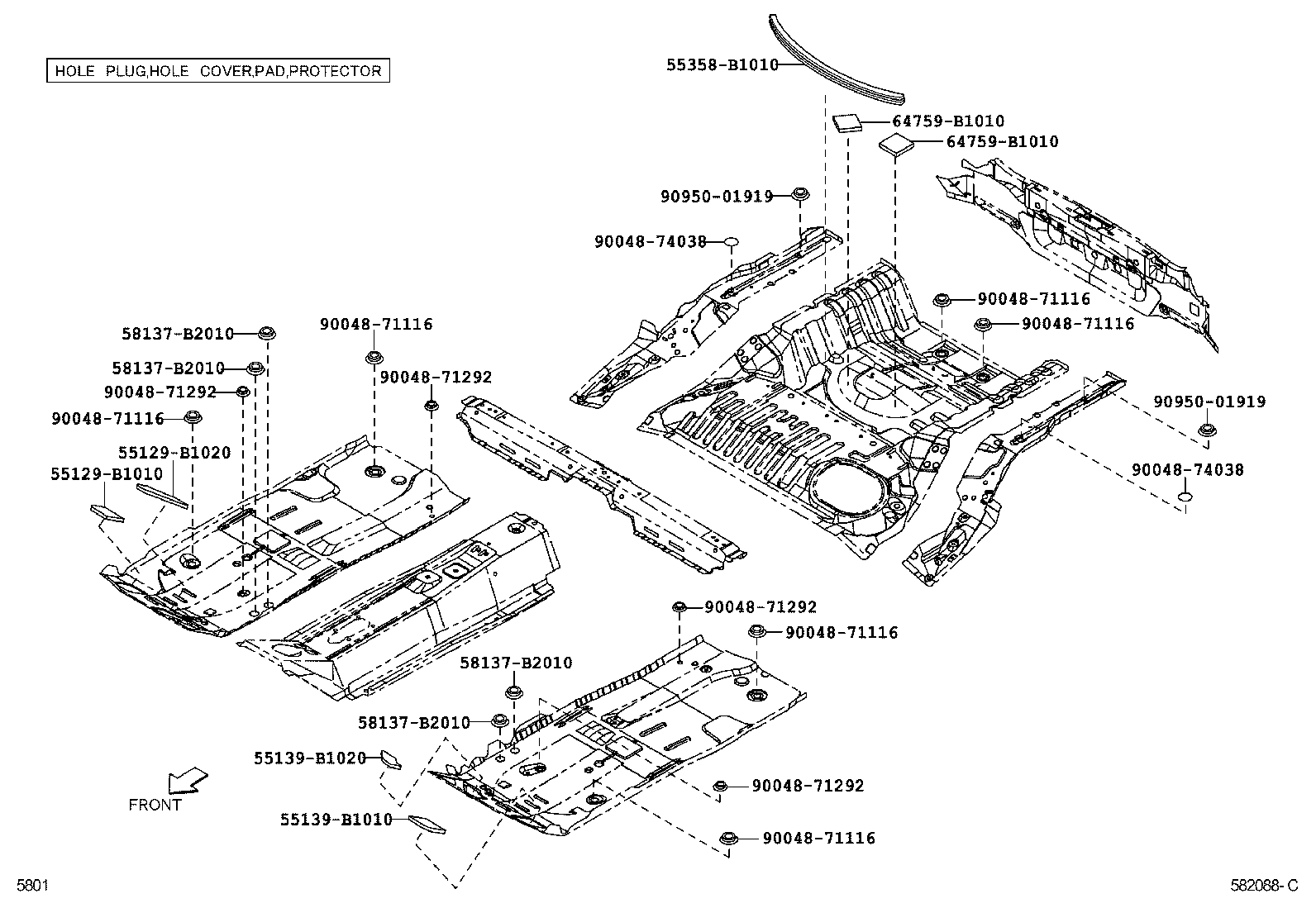

Figure 582087H 582087H 2004-05 → 2010-02 Figure 582088C 582088C 2004-05 → 2010-02

Part groups

PNCDescription
55214B Pad, Dash Panel Insulator, NO.2
55215B Pad, Dash Panel Insulator, NO.3
55216A Pad, Dash Panel Insulator, NO.4
57051A Member Sub-assy, Front Floor Cross, RH
57145D Reinforcement, Front Side Member TO Floor Pan
57468B Bracket, Front Seat, Rear
57615F Bracket, Rear Bumper Mounting
57665A Reinforcement, Rear Floor Crossmember, NO.2
58102A Reinforcement Sub-assy, Front Floor
58111A Pan, Front Floor, RH
58112A Panel, Front Floor, LH
58214E Bracket, Jack Support
58305 Bracket Sub-assy, Spare Wheel Clamp
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58315E Extension Rear Floor Side Panel, Front RH
58317C Extension, Rear Floor Side Panel, Rear LH
58325E Cover, Rear Floor Service Hole
58335A Seal, Rear Floor Side Service Hole Cover
C3173 Plate, Rear Floor Side, Rear LH
C9132 Plate, Chair Lift Hold
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
