Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 2 illustrations

Illustrations

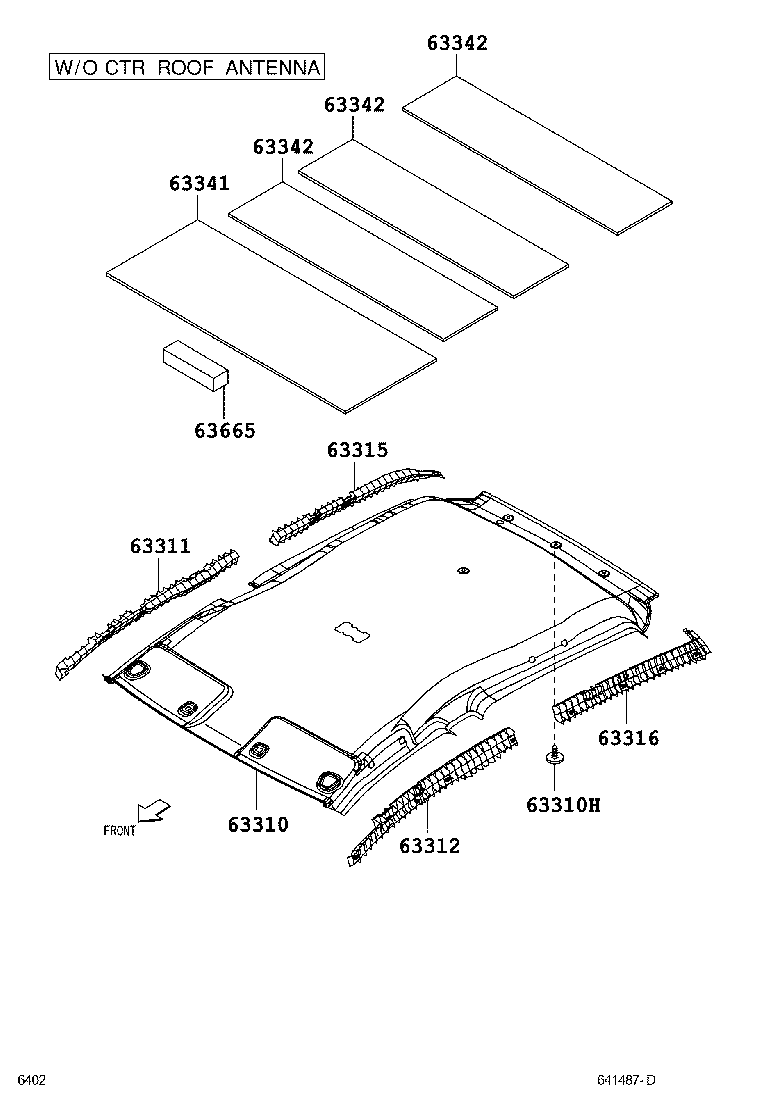

Figure 641489G 641489G 2004-05 → 2010-02 Figure 641487D 641487D 2004-05 → 2010-02

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63311 Garnish, Roof Headlining, Front RH
63312 Garnish, Roof Headlining, Front LH
63315 Garnish, Roof Headlining, Rear RH
63316 Garnish, Roof Headlining, Rear LH
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63665 Spacer, Roof Headlining
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
