Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

40 part groups · 4 illustrations

Illustrations

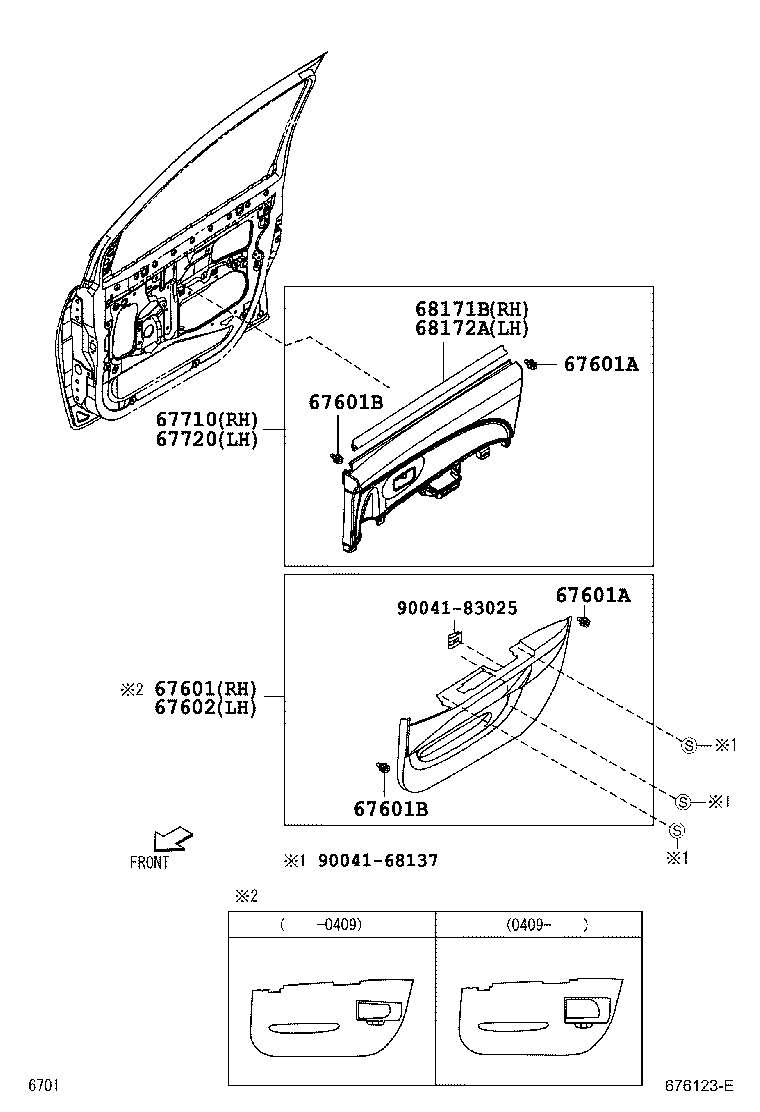

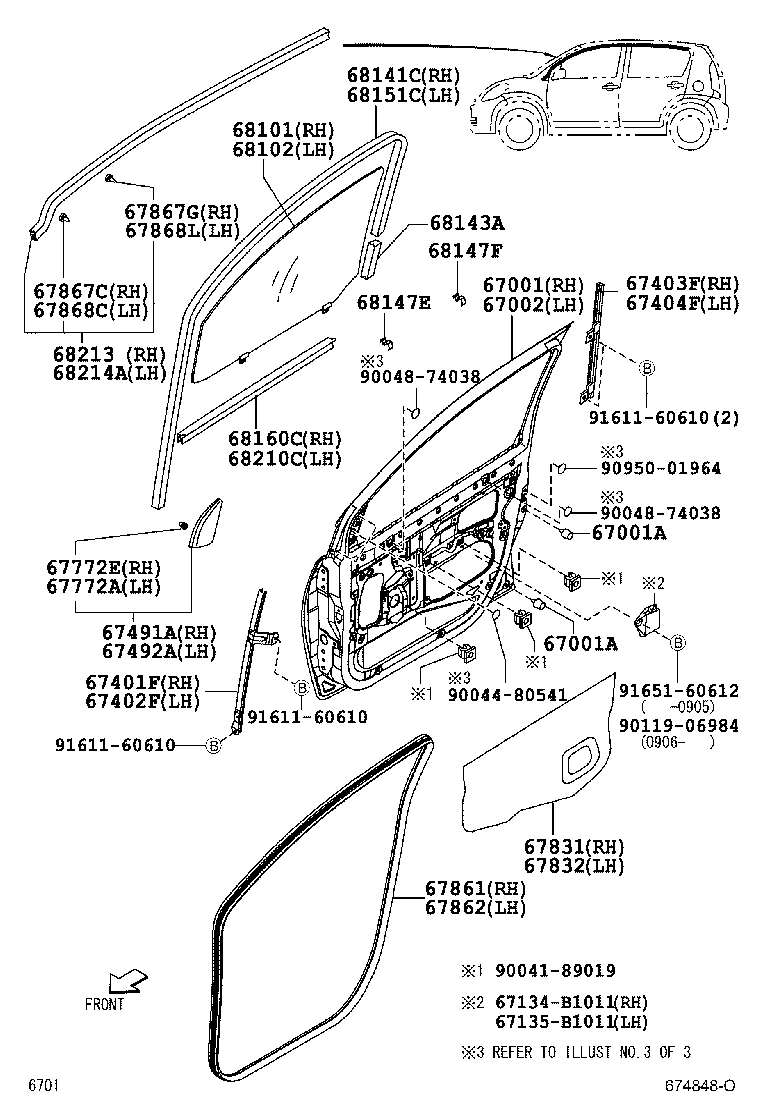

Figure 673606R 673606R 2004-05 → 2006-12 Figure 674848O 674848O 2006-12 → 2010-02 Figure 676123E 676123E 2004-05 → 2010-02 Figure 674908C 674908C 2004-05 → 2010-02

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601A Retainer(FOR FRONT DOOR TRIM BOARD)
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67710 Panel Assy, Front Door Trim, Upper RH
67720 Panel Assy, Front Door Trim, Upper LH
67772A Cap, Front Door Trim Retainer
67772E Cap, Front Door Trim Retainer
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67867G Retainer, Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67868L Retainer, Door Weatherstrip, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68143A Run, Front Door Glass, NO.2
68147E Stop, Front Door Glass, Upper
68147F Stop, Front Door Glass, Upper
68151C Run, Front Door Glass, LH
68160C Weatherstrip Assy, Front Door Glass, Outer RH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68213 Weatherstrip, Front Door Window, Outer RH
68214A Weatherstrip, Front Door Window, Outer LH
75923B Tape, Black Out, NO.2 RH
75924B Tape, Black Out, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
