Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

8 part groups · 2 illustrations

Illustrations

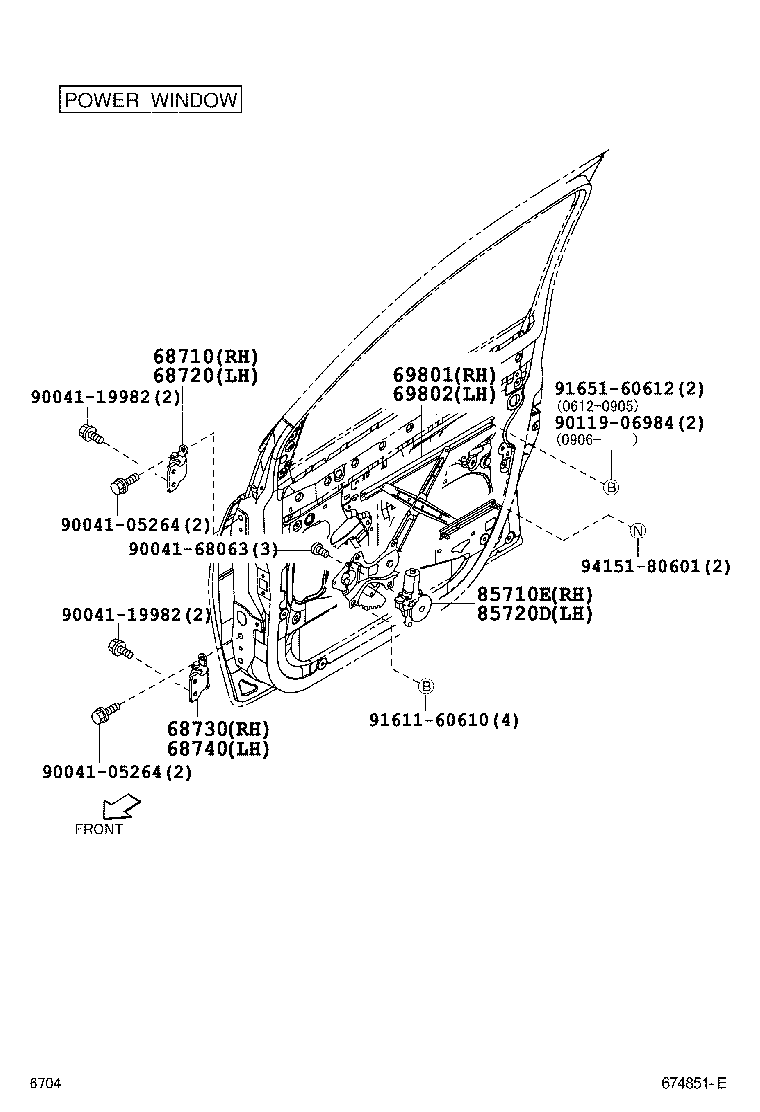

Figure 673599D 673599D 2004-05 → 2006-12 Figure 674851E 674851E 2006-12 → 2010-02

Part groups

PNCDescription
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
85710E Motor Assy, Power Window Regulator, RH
85720D Motor Assy, Power Window Regulator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
