Toyota Passo
2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan
Supported model
Data version 2010-10

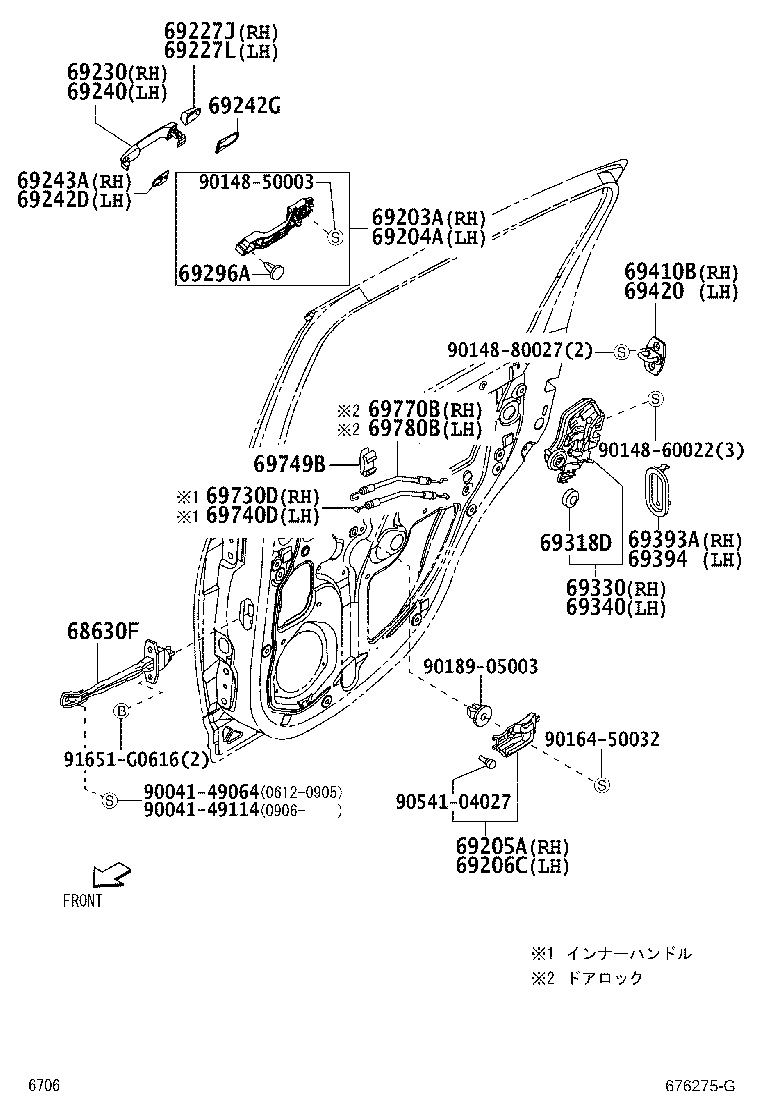

Rear Door Lock & Handle
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67836D | Cover, Rear Door Lock Child Protection |
| 68630F | Check Assy, Rear Door |
| 69203A | Frame Sub-assy, Rear Door Outside Handle, RH |
| 69204A | Frame Sub-assy, Rear Door Outside Handle, LH |
| 69205A | Handle Sub-assy, Rear Door Inside, RH |
| 69206C | Handle Sub-assy, Rear Door Inside, LH |
| 69227J | Cover, Rear Door Outside Handle, RH |
| 69227L | Cover, Rear Door Outside Handle, LH |
| 69230 | Handle Assy, Rear Door Outside, RH |
| 69240 | Handle Assy, Rear Door Outside, LH |
| 69241G | Pad, Rear Door Outside Handle, Front |
| 69242D | Pad, Rear Door Outside Handle, LH |
| 69242G | Pad, Rear Door Outside Handle, Rear |
| 69243A | Pad, Rear Door Outside Handle, RH |
| 69296A | Screw, Door Inside Handle |
| 69318D | Seal, Door Lock Wiring Harness |
| 69330 | Lock Assy, Rear Door, RH |
| 69340 | Lock Assy, Rear Door, LH |
| 69393A | Cover, Rear Door Lock, Outer RH |
| 69394 | Cover, Rear Door Lock, Outer LH |
| 69410B | Plate Assy, Rear Door Lock Striker |
| 69420 | Plate Assy, Rear Door Lock Striker |
| 69730D | Cable Assy, Rear Door Lock Remote Control, RH |
| 69740D | Cable Assy, Rear Door Lock Remote Control LH |
| 69749B | Clamp, Rear Door Lock Link |
| 69770B | Cable Assy, Rear Door Inside Locking, RH |
| 69780B | Cable Assy, Rear Door Inside Locking, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
