Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

9 part groups · 2 illustrations

Illustrations

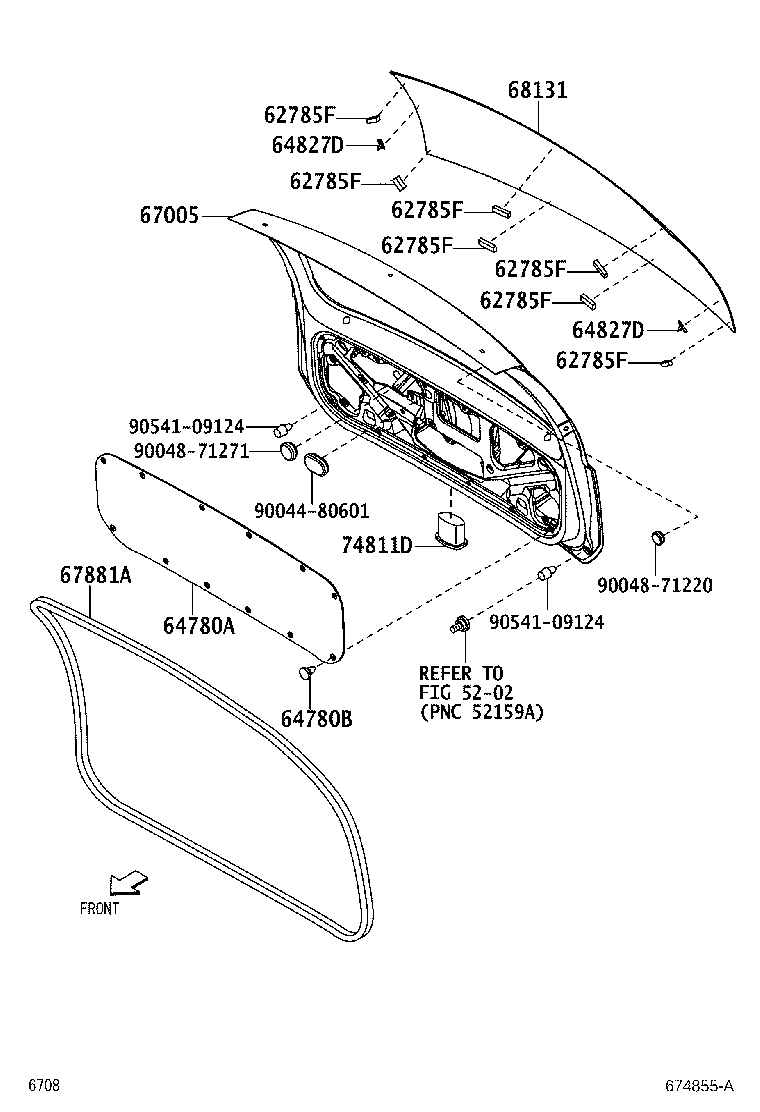

Figure 673609D 673609D 2004-05 → 2006-12 Figure 674855A 674855A 2006-12 → 2010-02

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64780A Panel Assy, Back Door Trim
64780B Clip(FOR BACK DOOR TRIM PANEL)
64827D Clip, Back Window Glass
67005 Panel Sub-assy, Back Door
67881A Weatherstrip, Back Door
68131 Glass, Back Door
74811D Handle, Door Pull
75129C Cushion, Rear Licence Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
