Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

62 part groups · 8 illustrations

Illustrations

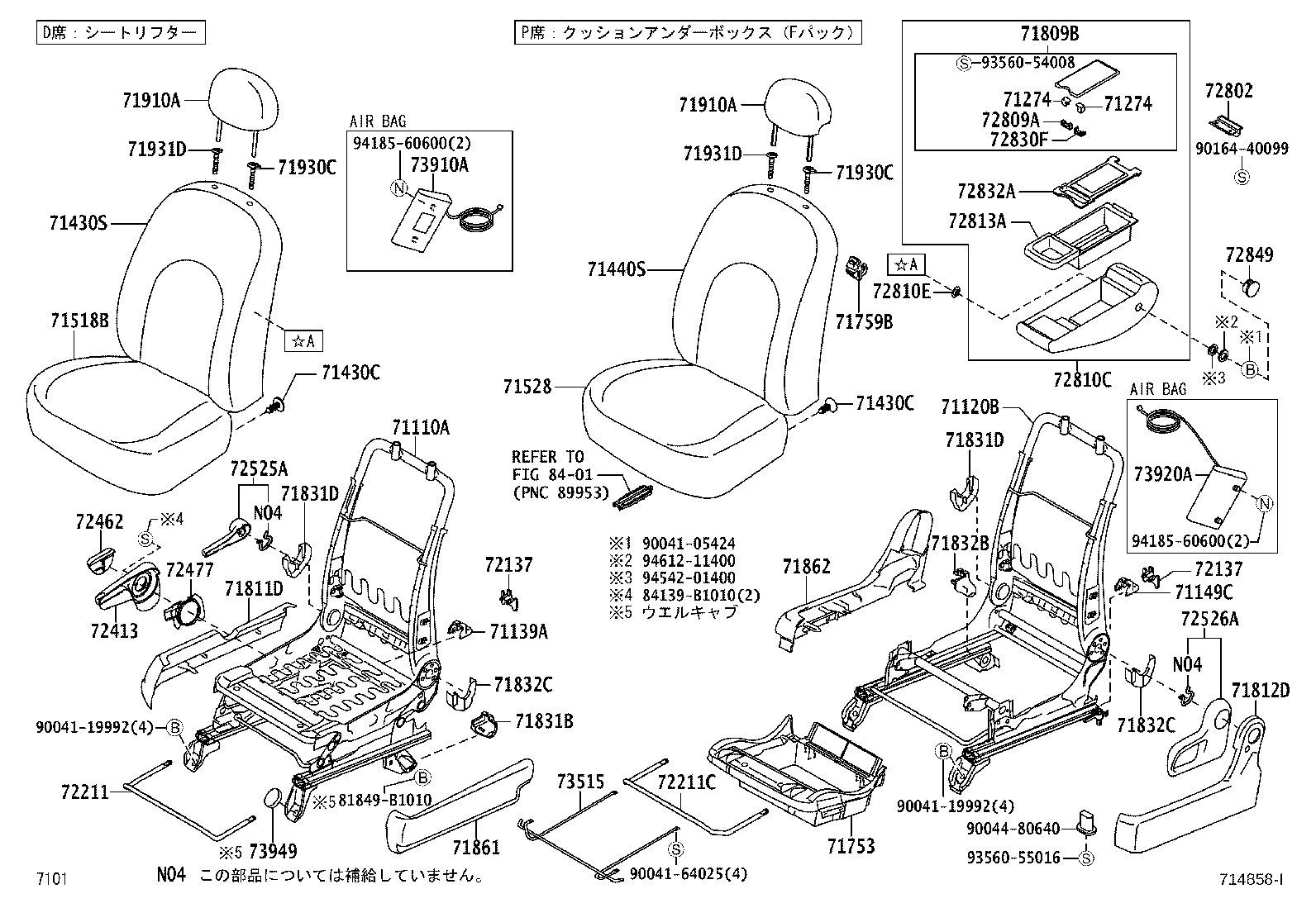

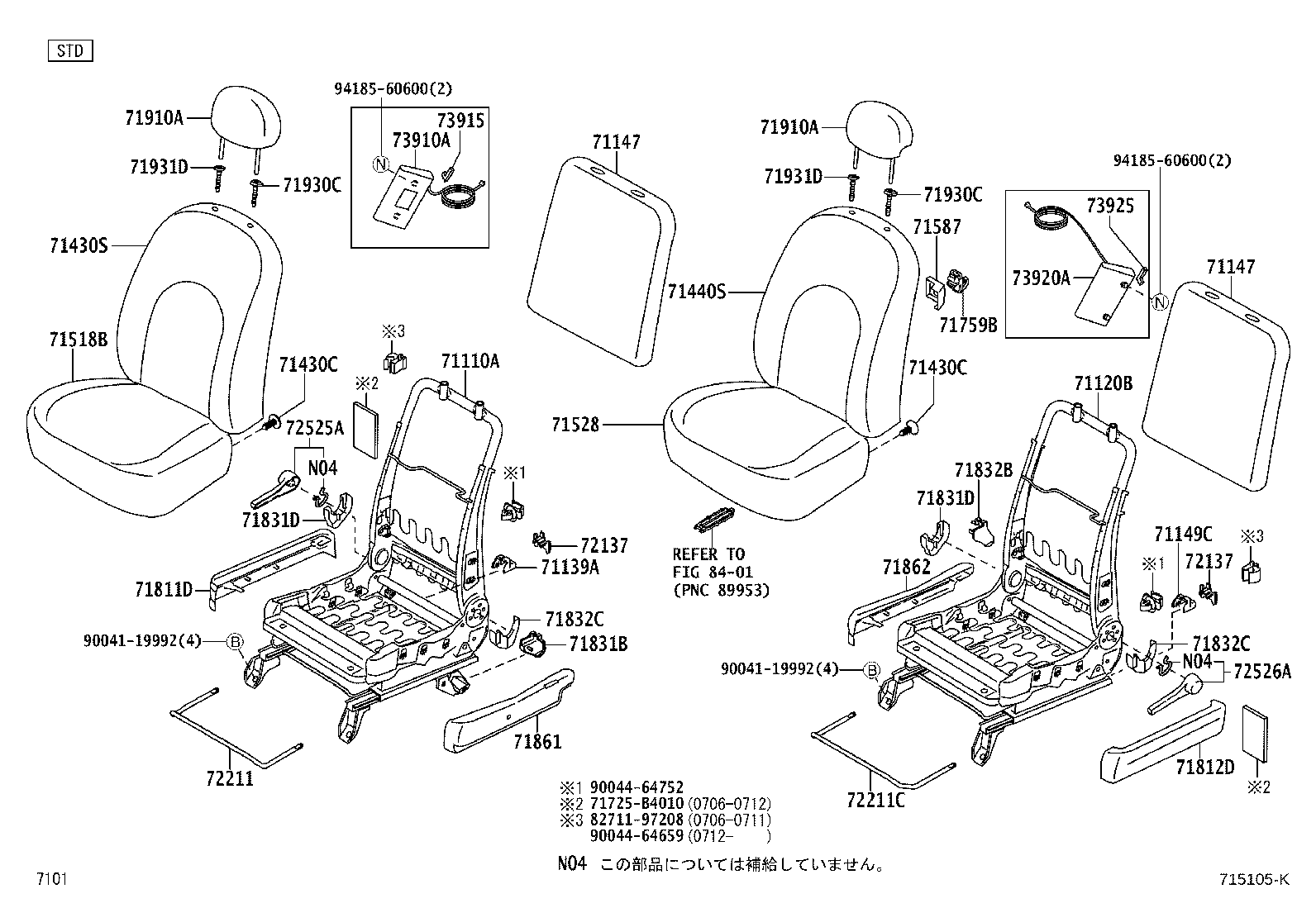

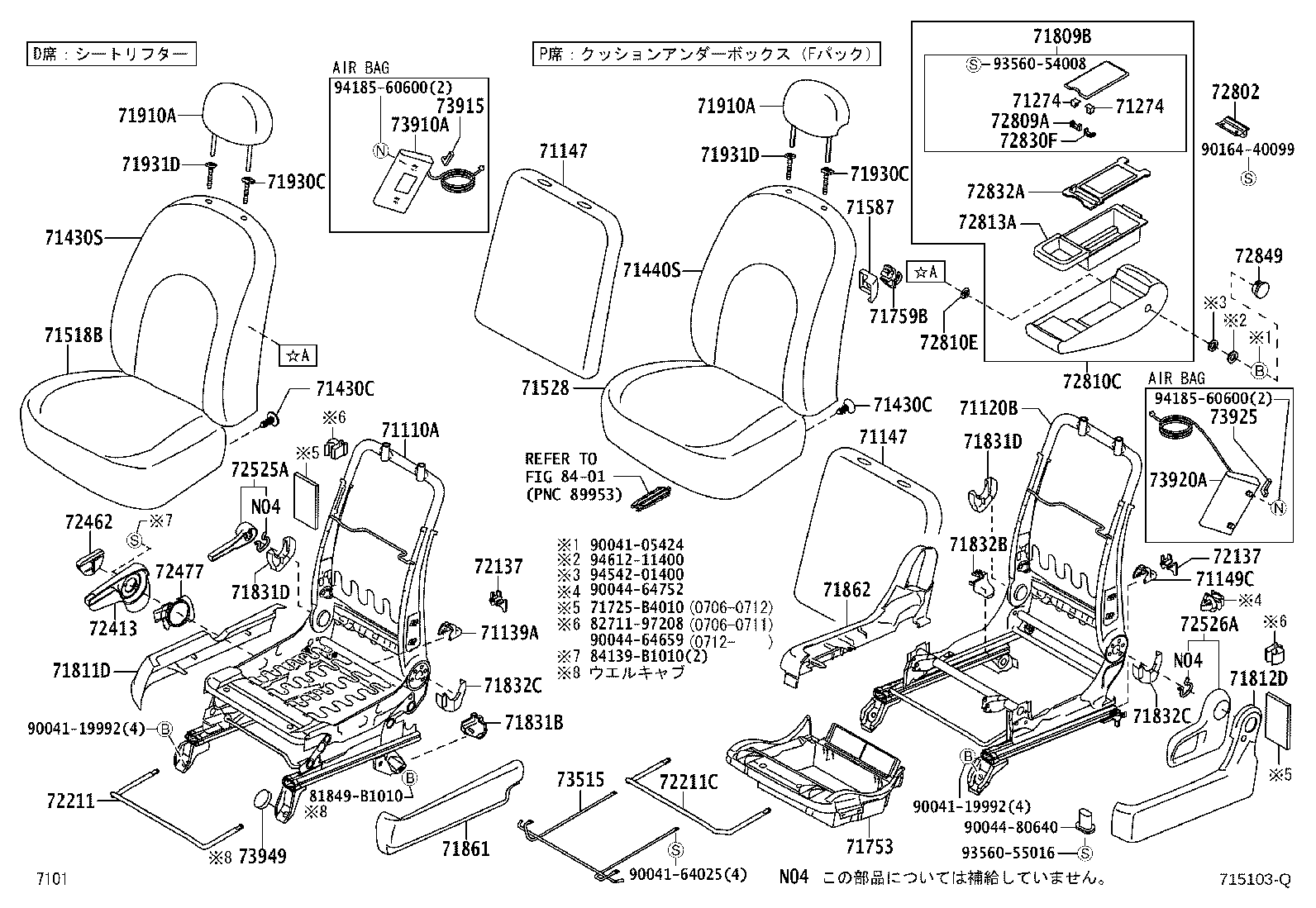

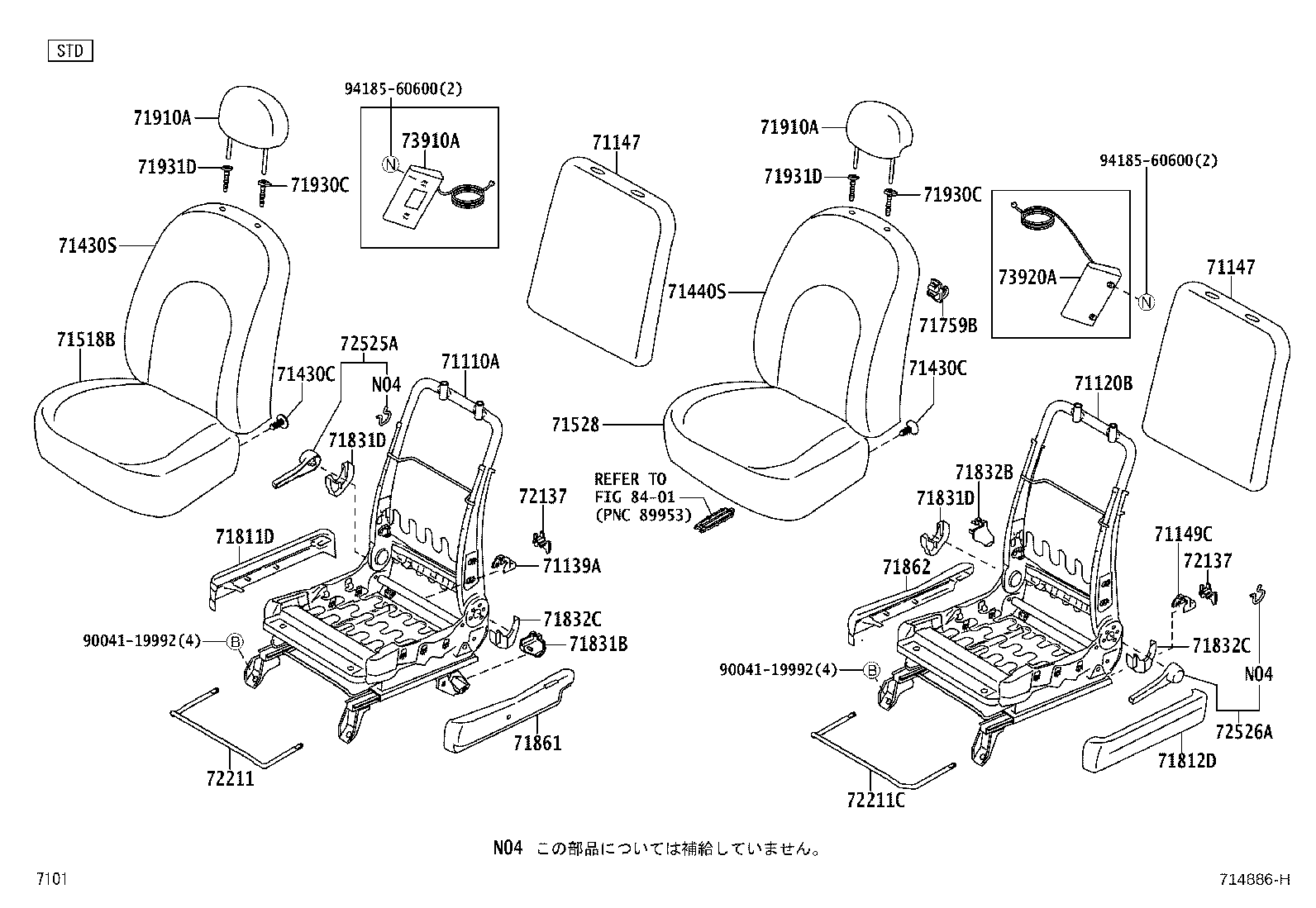

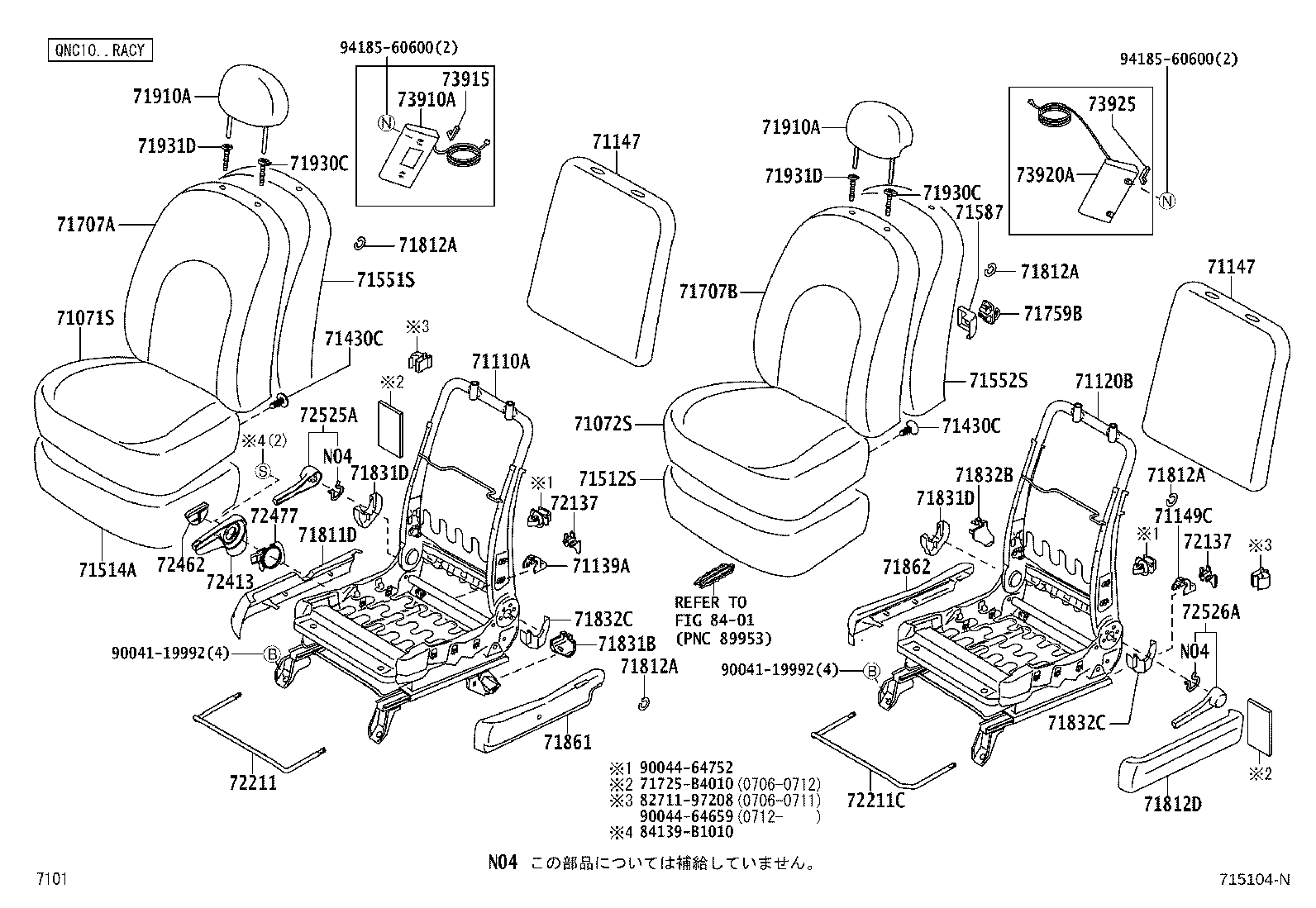

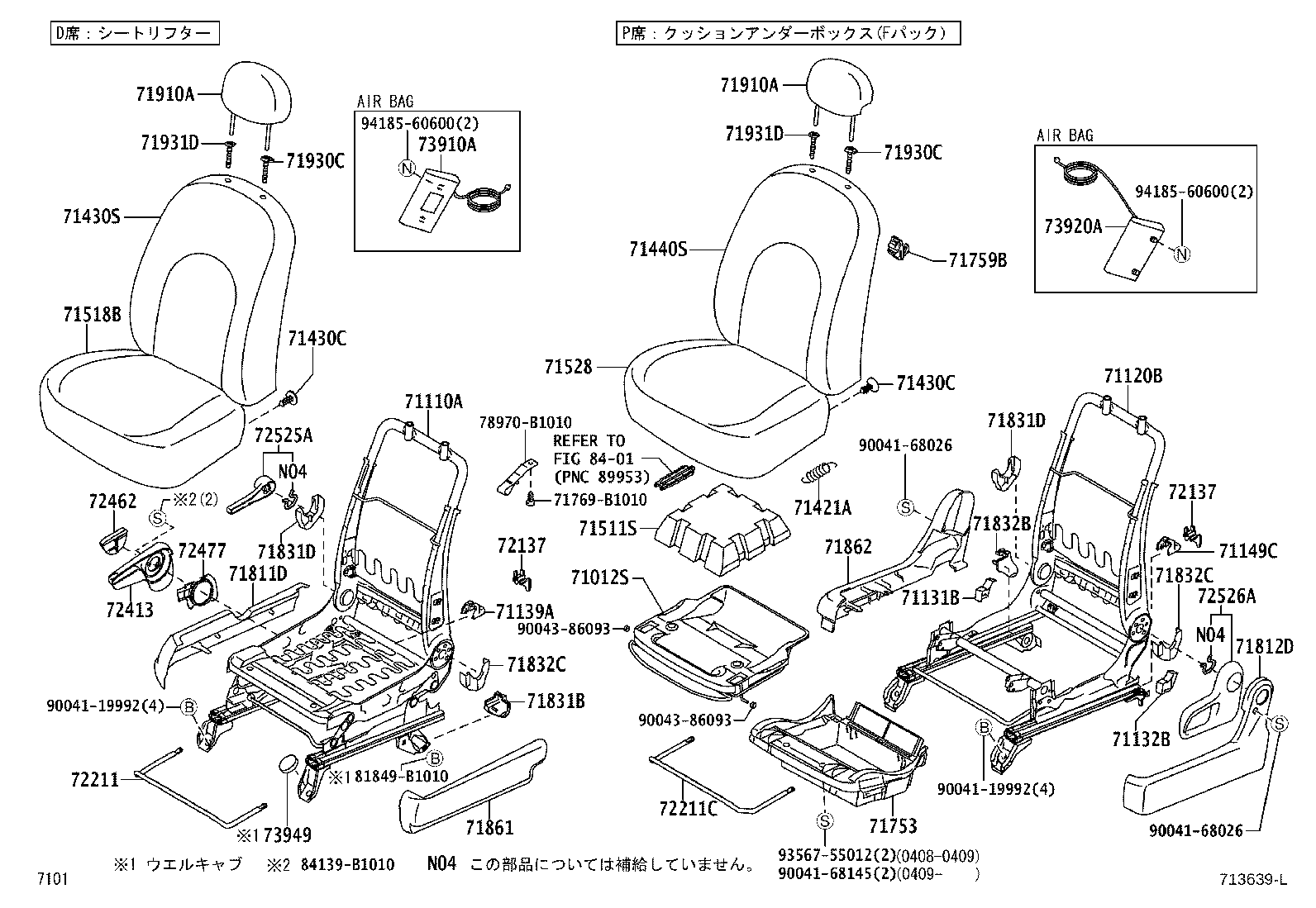

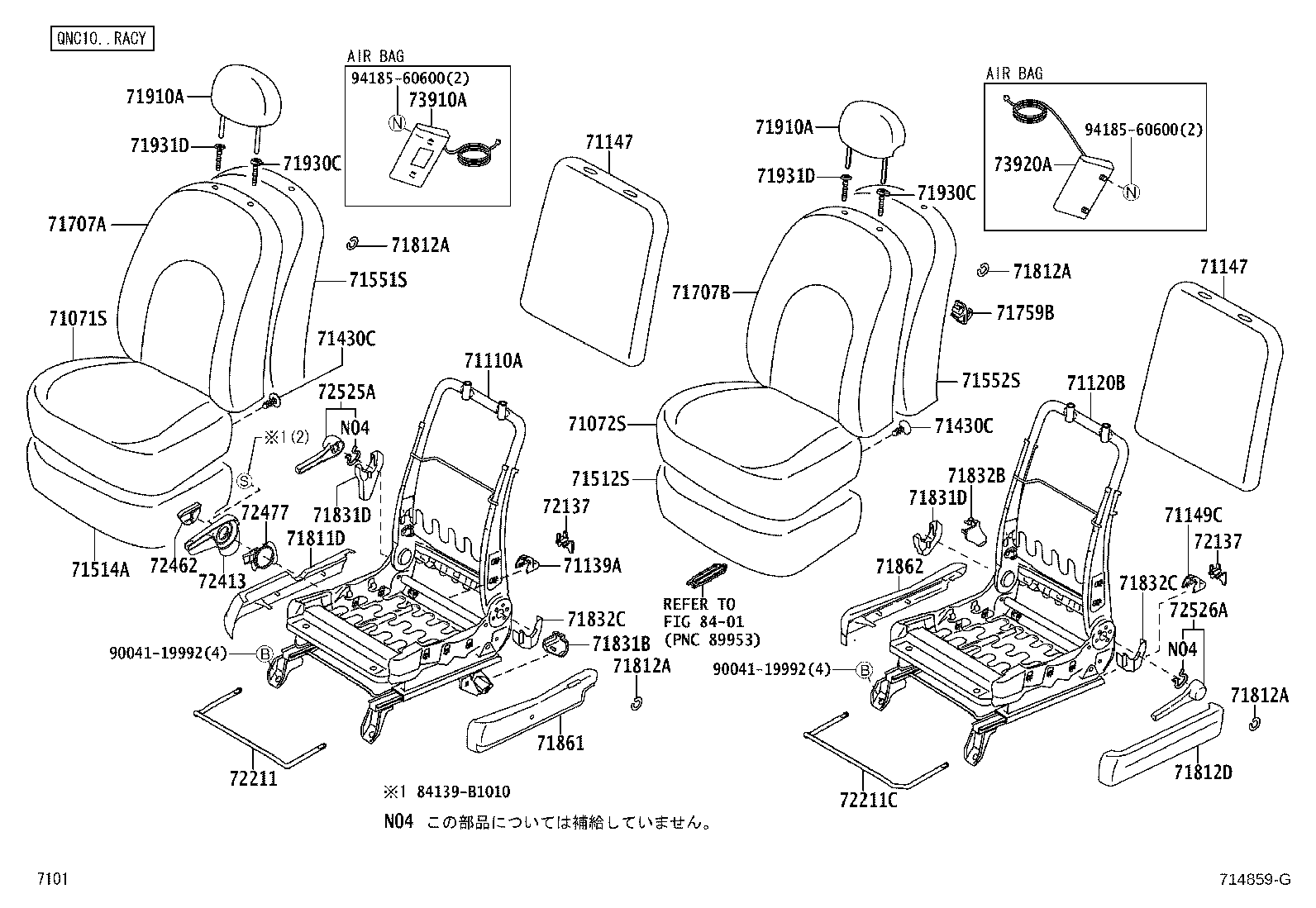

Figure 713396J 713396J 2004-05 → 2006-12 Figure 713639L 713639L 2004-05 → 2006-12 Figure 714886H 714886H 2006-12 → 2007-06 Figure 715105K 715105K 2007-06 → 2010-02 Figure 714858I 714858I 2006-12 → 2007-06 Figure 715103Q 715103Q 2007-06 → 2010-02 Figure 714859G 714859G 2006-12 → 2007-06 Figure 715104N 715104N 2007-06 → 2010-02

Part groups

PNCDescription
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71131B Plate, Front Seat Cushion, NO.1
71132B Plate, Front Seat Cushion, NO.2
71139A Cover, Front Seat Leg, NO.1
71147 Silencer, Seat Spring
71149C Cover, Front Seat Leg, LH (FOR LH SEAT)
71274 Knob, Front Seat Hinge
71421A Spring, Front Seat Cushion
71430C Clip
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71514A Pad, Front Seat Cushion, C RH
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71707A Cover Sub-assy, Front Seatback Board
71707B Cover Sub-assy, Front Seatback Board
71753 Tray, Front Seat Under
71759B Hook, Front Seatback
71809B Cover Sub-assy, Front Seat Armrest Holder
71811D Shield, Front Seat Cushion, RH
71812A Ring, Hog, Small (FOR FRONT SEAT)
71812D Shield, Front Seat Cushion, LH
71831B Cover, Front Seat Hinge, RH
71831D Cover, Front Seat Hinge, RH
71832B Cover, Front Seat Hinge, LH
71832C Cover, Front LH Seat Hinge
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71910A Headrest Assy, Front Seat
71930C Support, Front Seat Headrest, LH
71931D Support, Front Seat Headrest, RH
72137 Cover, Seat Track, Outer RH
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72413 Lever, Vertical Adjuster Lock
72462 Cover, Vertical Adjuster RH
72477 Spacer, Vertical Adjuster
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72802 Hinge Sub-assy, Armrest Console
72809A Lock Sub-assy, Center Armrest
72810C Armrest Assy, Front Seat, Center
72810E Bush, Front Seat Armrest, NO.1
72813A Box, Front Seat Center Armrest
72830F Lock Sub-assy, Front Seat Armrest
72832A Plate, NO.1 Seat Armrest
72849 Cap, Seat Armrest, NO.2
73515 Rail, Front Seat Under Tray, NO.1
73910A Airbag Assy, Front Seat, RH
73915 Cover, Seat Airbag NO.1, RH
73920A Airbag Assy, Front Seat, LH
73925 Cover, Seat Airbag NO.1, LH
73949 Cap
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
