Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

34 part groups · 3 illustrations

Illustrations

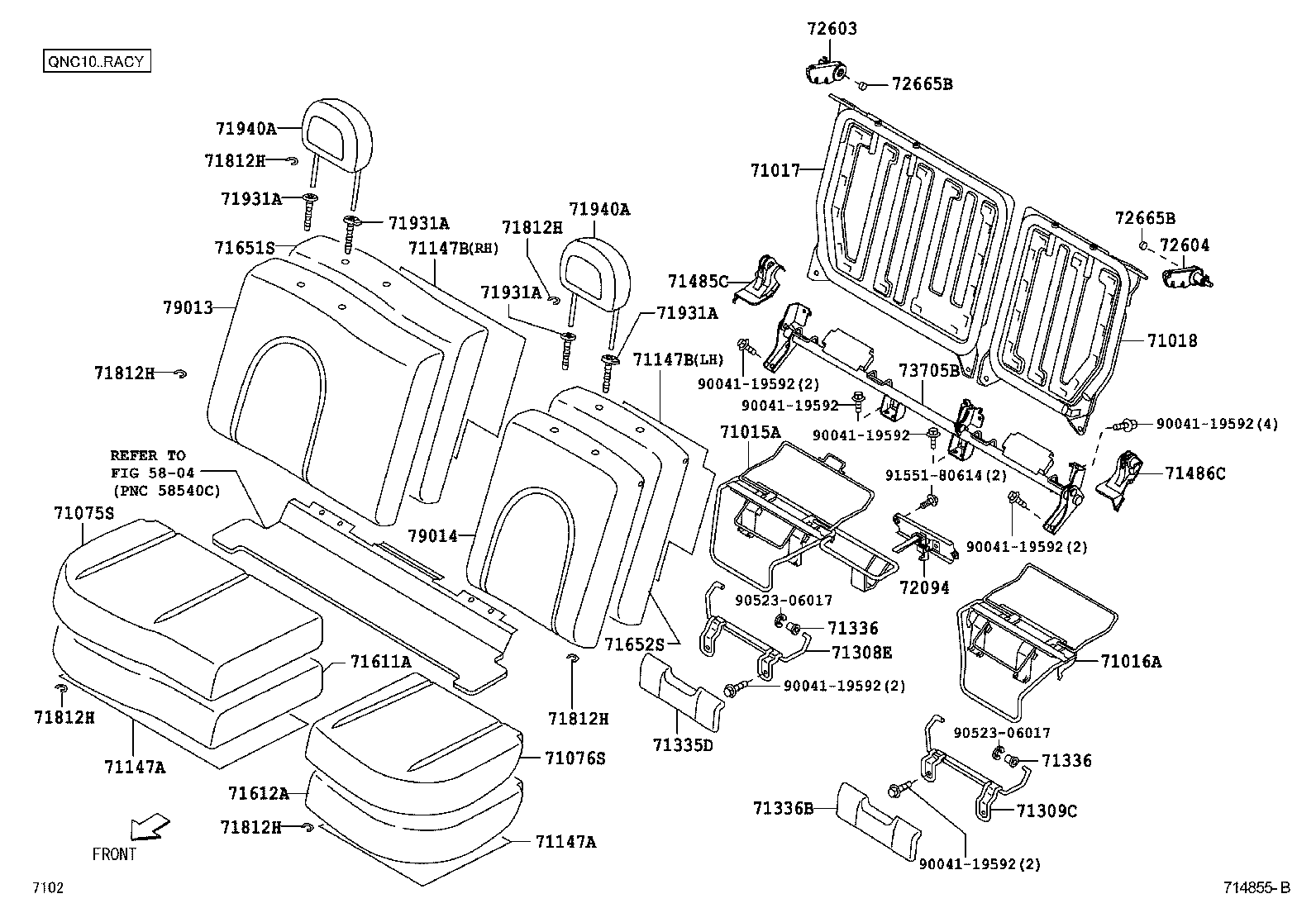

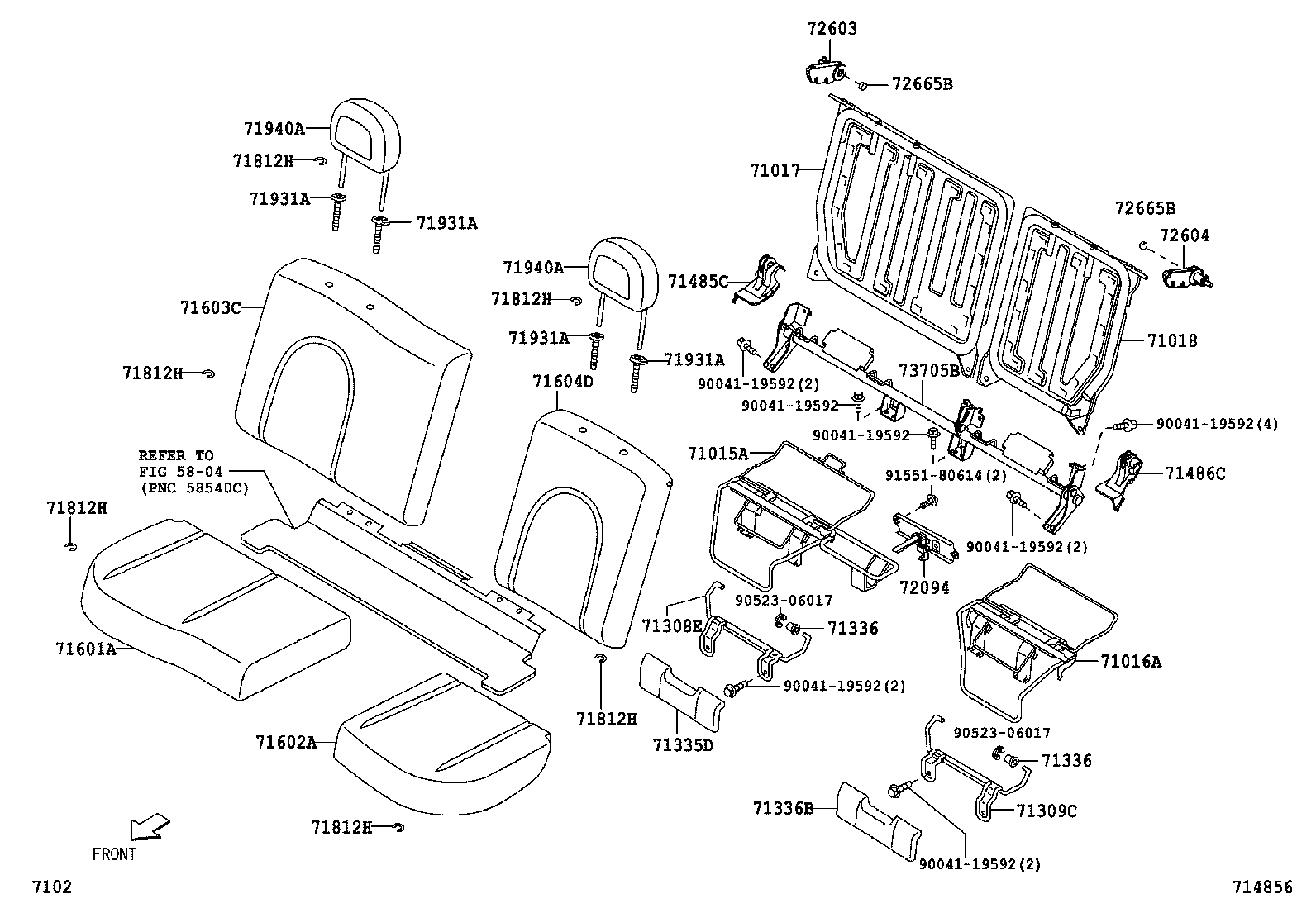

Figure 713398L 713398L 2004-05 → 2006-12 Figure 714855B 714855B 2006-12 → 2010-02 Figure 714856 714856 2006-12 → 2010-02

Part groups

PNCDescription
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71147A Silencer, Rear Seat Spring
71147B Silencer, Seat Spring
71308E Leg Sub-assy, Rear Seat, RH
71309C Leg Sub-assy, Rear Seat, Rear LH
71335D Plate, Rear Seat Leg Cover, RH
71336 Bush OR Spacer, Rear Seatback Hinge
71336B Plate, Rear Seat Leg Cover, LH
71485C Cover, Rear Seat Hinge, RH
71486C Cover, Rear Seat Hinge, LH
71601A Pad Sub-assy, Rear Seat Cushion W/Cover
71602A Pad Sub-assy, Rear Seat Cushion W/Cover, LH
71603C Pad Sub-assy, Rear Seatback W/Cover
71604D Pad Sub-assy, Rear Seatback W/Cover, LH
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71812H Ring, Hog, Small (FOR REAR SEAT)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72094 Lock Sub-assy, Rear Seat Turn
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72665B Cover, Rear Seatback Lock
73705B Bracket Sub-assy, Cross Anchor
78953 Plate, Rear Seat Under
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
