Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

9 part groups · 2 illustrations

Illustrations

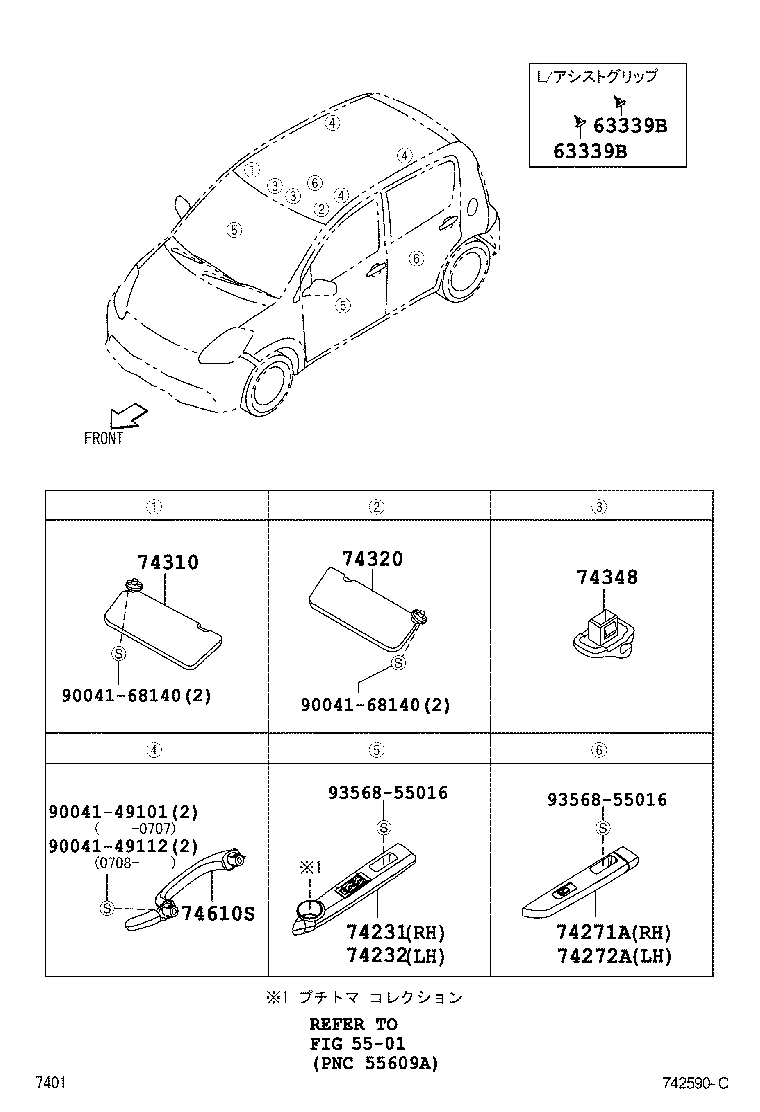

Figure 741449M 741449M 2004-05 → 2006-12 Figure 742590C 742590C 2006-12 → 2010-02

Part groups

PNCDescription
63339B Cover,
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610S Grip Assy, Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
