Toyota Passo
2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan
Supported model
Data version 2010-10

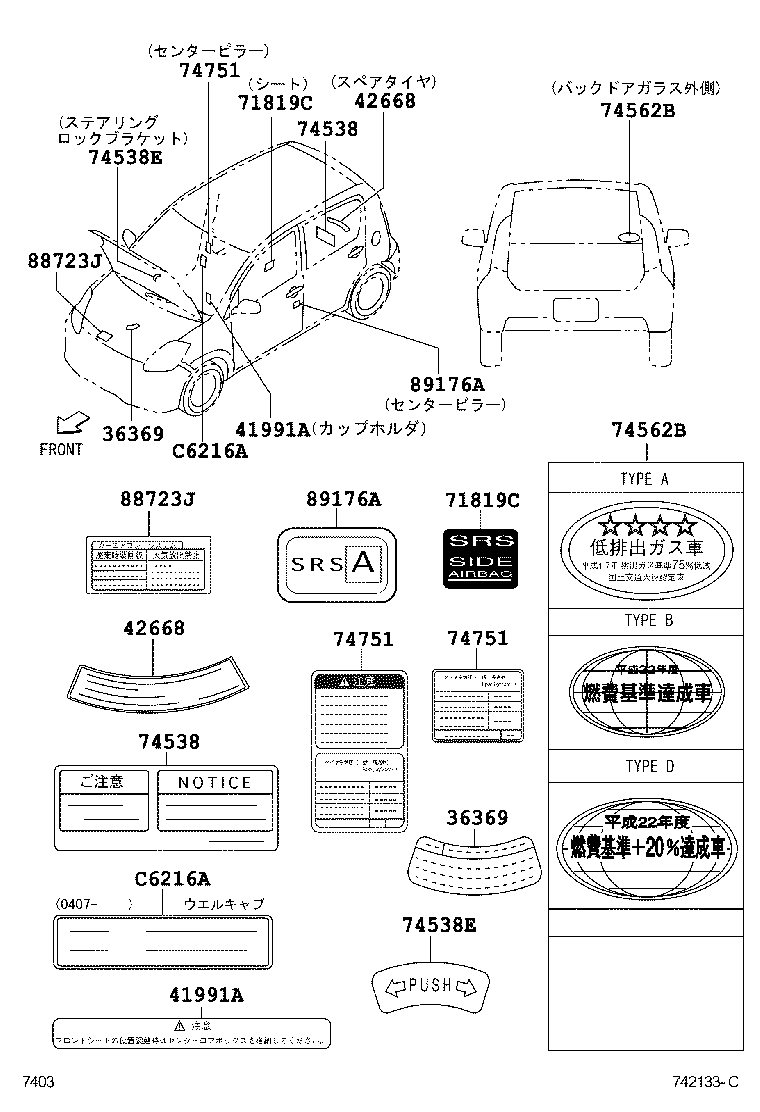

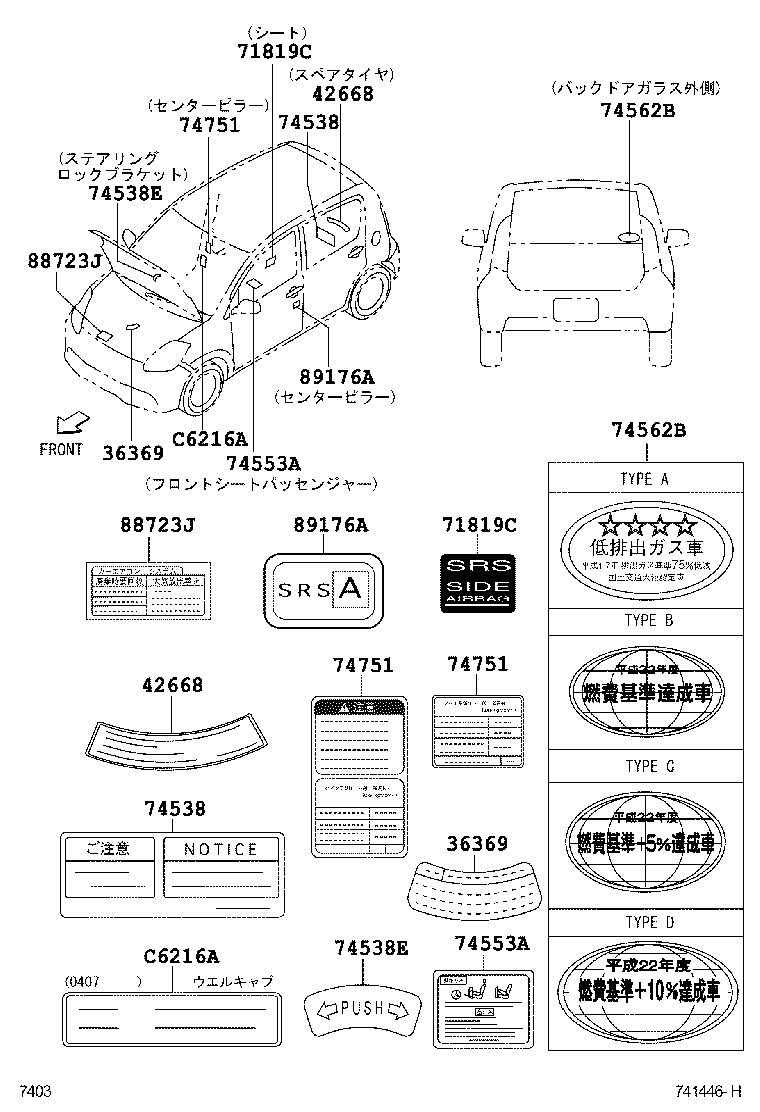

Caution Plate (EXTERIOR & INTERIOR)
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11289B | Label, Spark Plug Notice |
| 11293C | Label, Tune-up Specification Information |
| 16793E | Label, Cooling Fan Caution |
| 36369 | Label, Transfer Information |
| 41991A | Plate, Caution |
| 42668 | Label, Compact Spare Tire Caution |
| 71819C | Label, Side Airbag Name |
| 74538 | Plate, Jack Carrier Caution |
| 74538E | Label, Ignition Swich Notice |
| 74553A | Plate, Front Seat Caution |
| 74562B | Label, Emission Information |
| 74751 | Label, Tire Pressure Information |
| 88723J | Label, Cooler Service Caution, NO.2 |
| 89176A | Label, Airbag Deployment Information |
| C6216A | Plate, Identification Number |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
