Toyota Passo
2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan
Supported model
Data version 2010-10

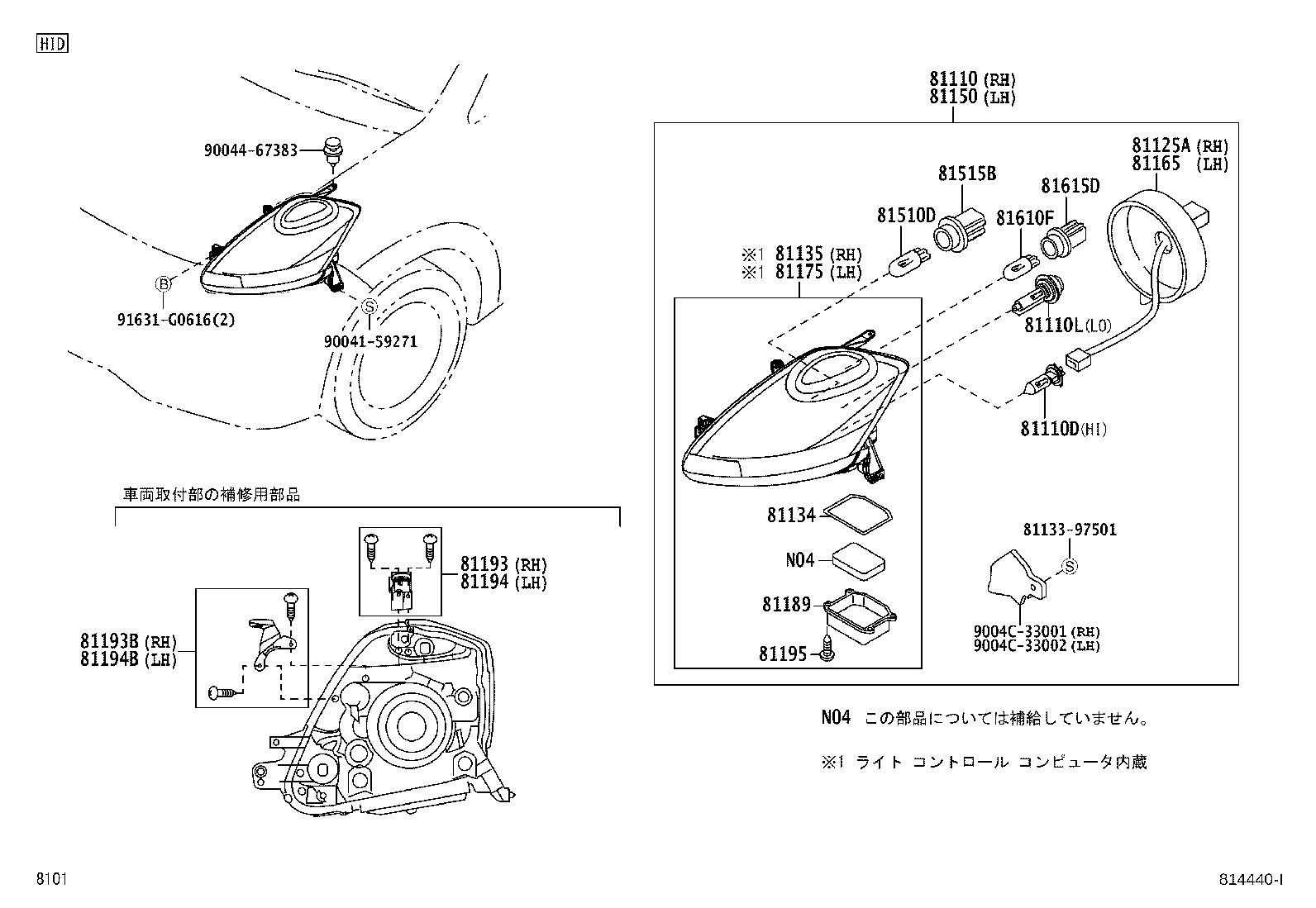

Headlamp
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81125A | Cord, Headlamp, RH |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81144C | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81165 | Cord, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81189 | Cover, Headlamp |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81193B | Retainer, Headlamp Protector, Upper RH NO.2 |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81194B | Retainer, Headlamp Protector, Upper LH NO.2 |
| 81195 | Screw, Headlamp |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
