Toyota Passo
2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan
Supported model
Data version 2010-10
Wiring & Clamp
23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 82046D | Wire, Body Ground |
| 82111 | Wire, Engine Room Main |

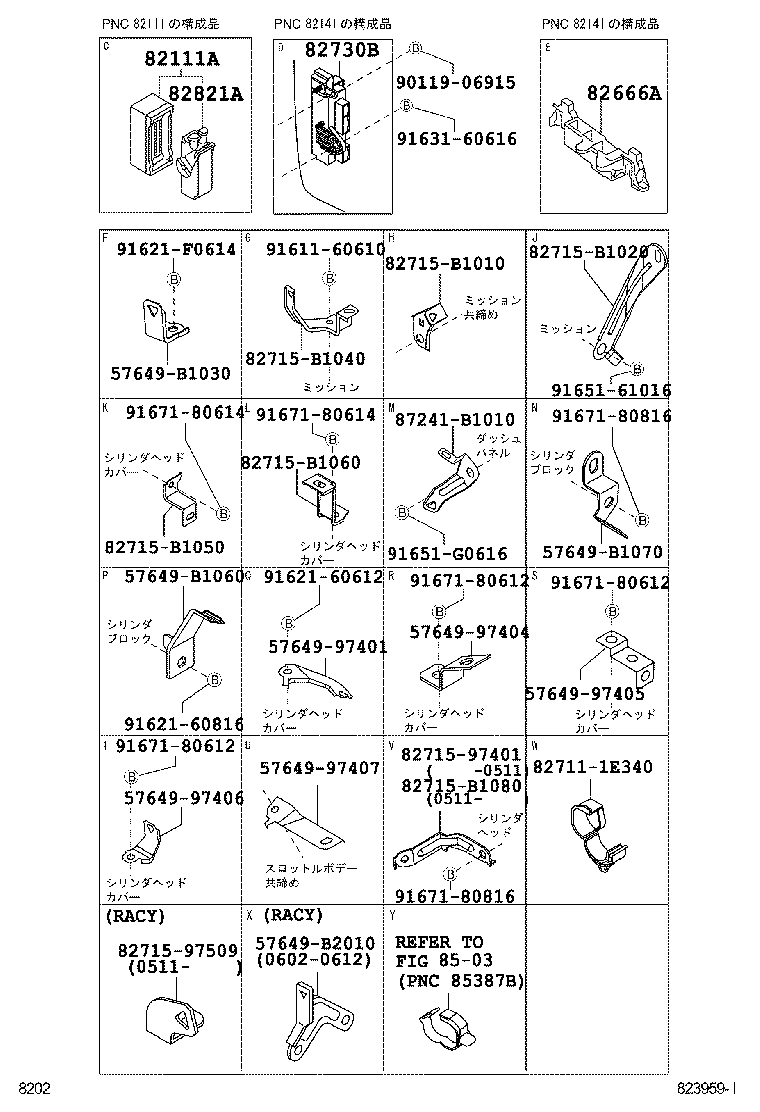

| 82111A | Connector, Engine Room Main Wire |
| 82121 | Wire, Engine |
| 82130 | Harness Assy, Chassis Wire |
| 82141 | Wire, Instrument Panel |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153A | Wire, Rear Door, RH |
| 82154A | Wire, Rear Door, LH |
| 82161 | Wire, Floor |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82186 | Wire, Rear Window, NO.1 |
| 82187 | Wire, Rear Window, NO.2 |
| 82214A | Wire, Lamp |

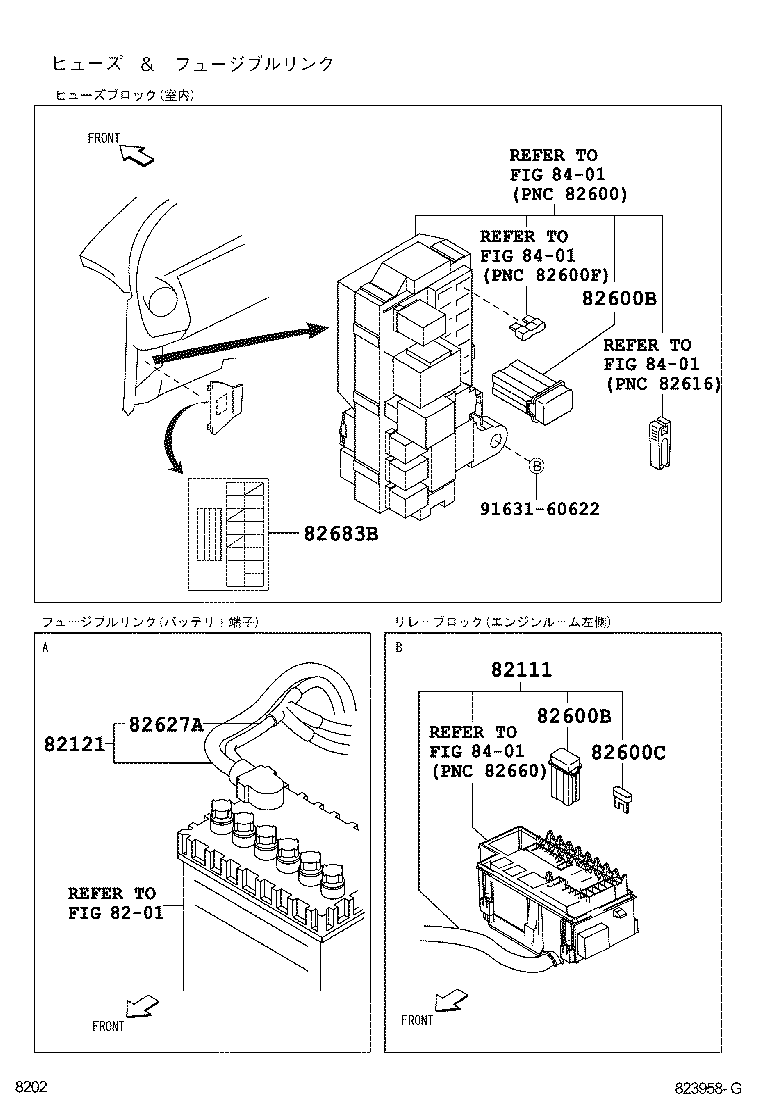

| 82600B | Fuse, Fuse Block |
| 82600C | Fuse, Fuse Block, NO.2 |
| 82627A | Wire, Fusible Link |
| 82666A | Holder, Connector NO.2 |
| 82683B | Label, Fuse Block Notice |
| 82730B | Block Assy, Passenger Side Junction |
| 82821A | Cover, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
