Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 2 illustrations

Illustrations

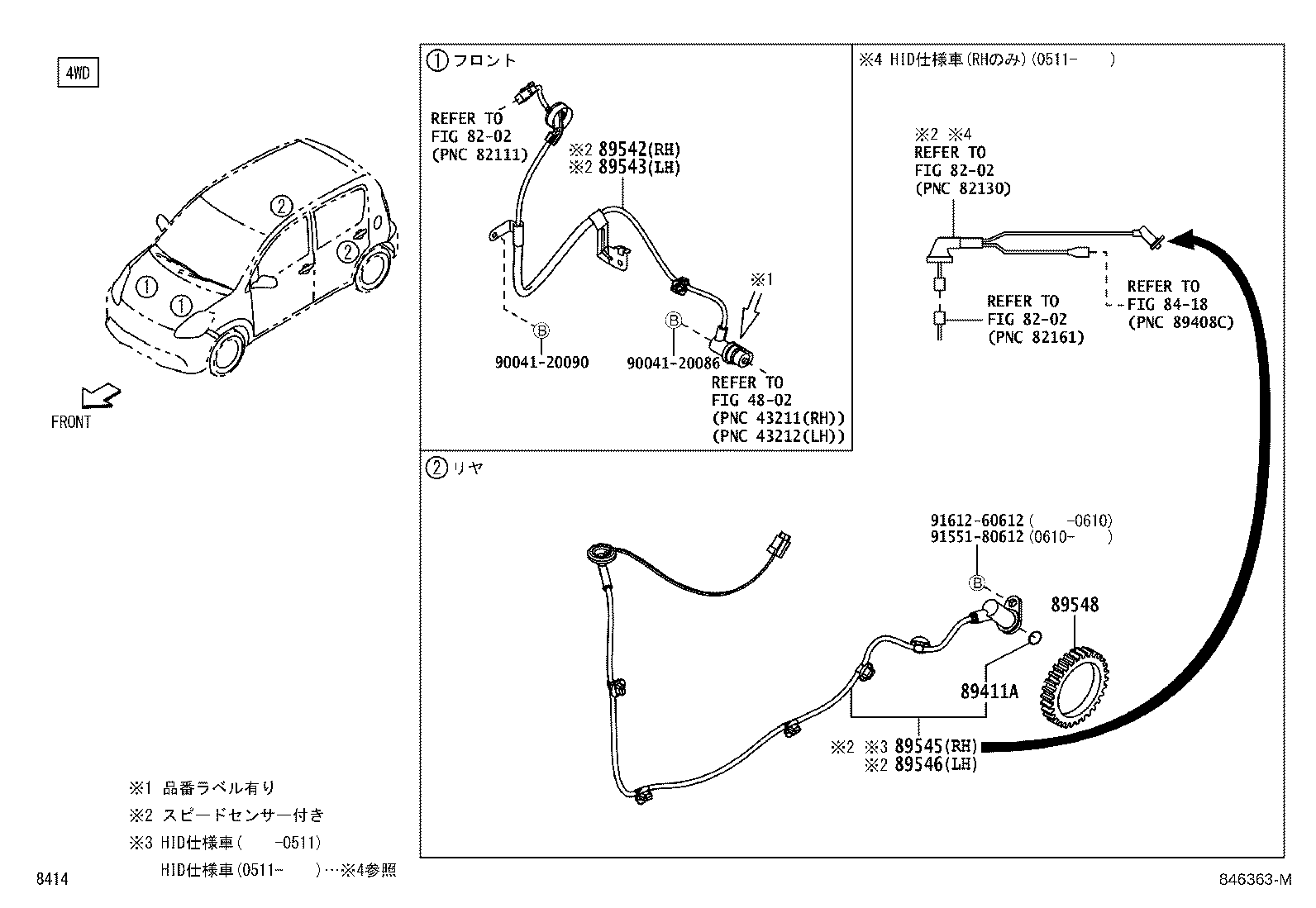

Figure 84G243B 84G243B 2004-05 → 2010-02 Figure 846363M 846363M 2004-05 → 2010-02

Part groups

PNCDescription
82251D Wire, Speed Sensor, RH
82251E Wire, Speed Sensor, LH
89411A Ring, O (FOR SPEED SENSOR)
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89548 Rotor, Skid Control Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
