Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 4 illustrations

Illustrations

863509 2004-05 → 2006-12

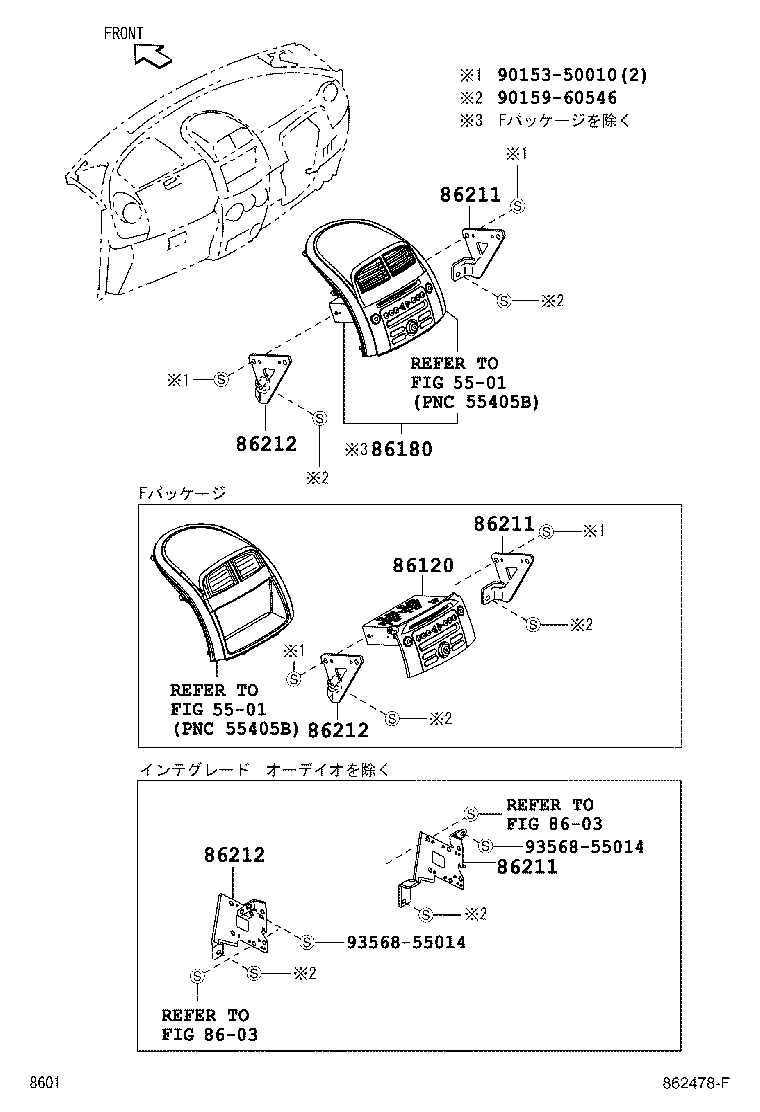

Figure 862478F

862478F 2006-12 → 2010-02

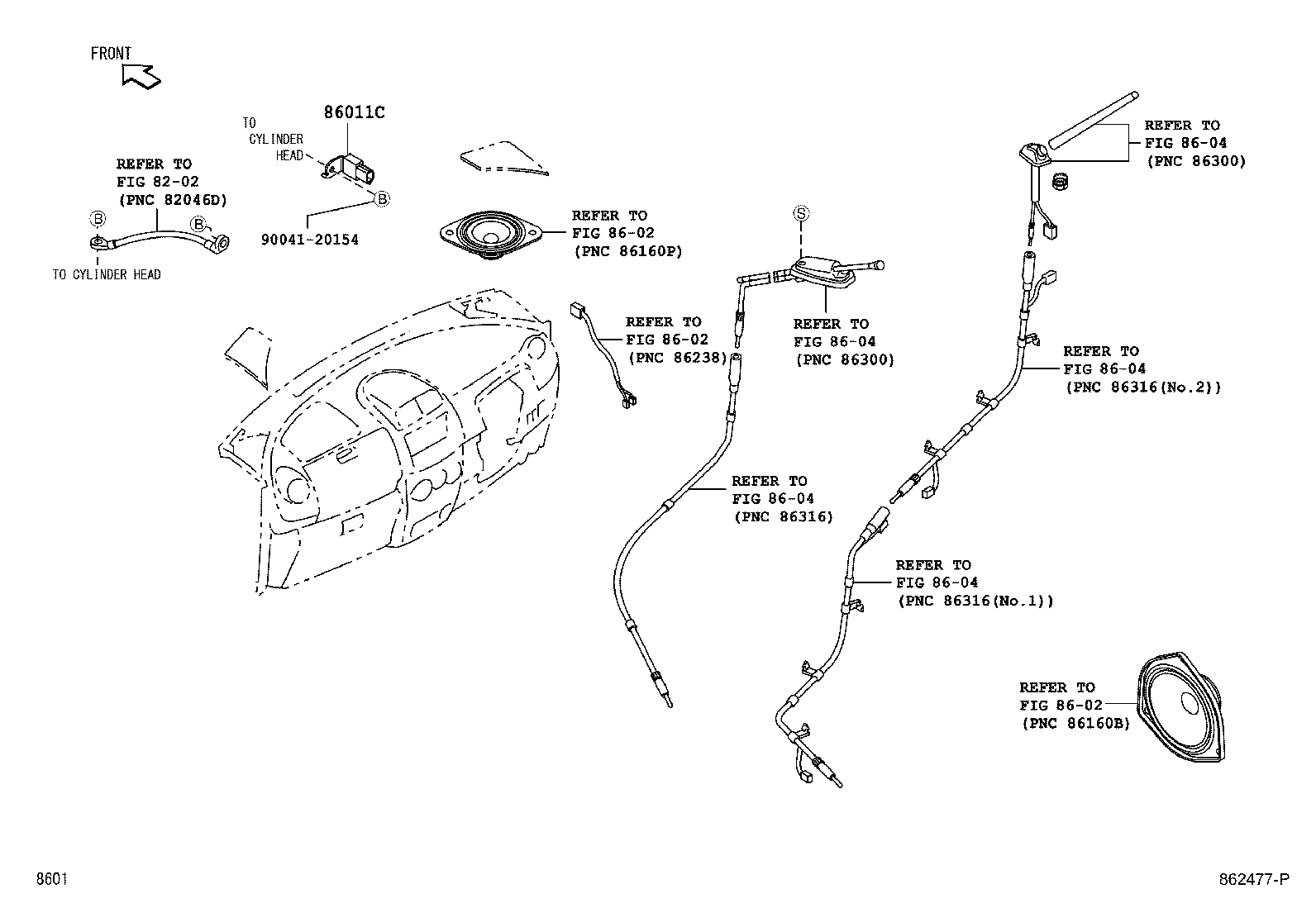

Figure 862477P

862477P 2004-05 → 2010-02

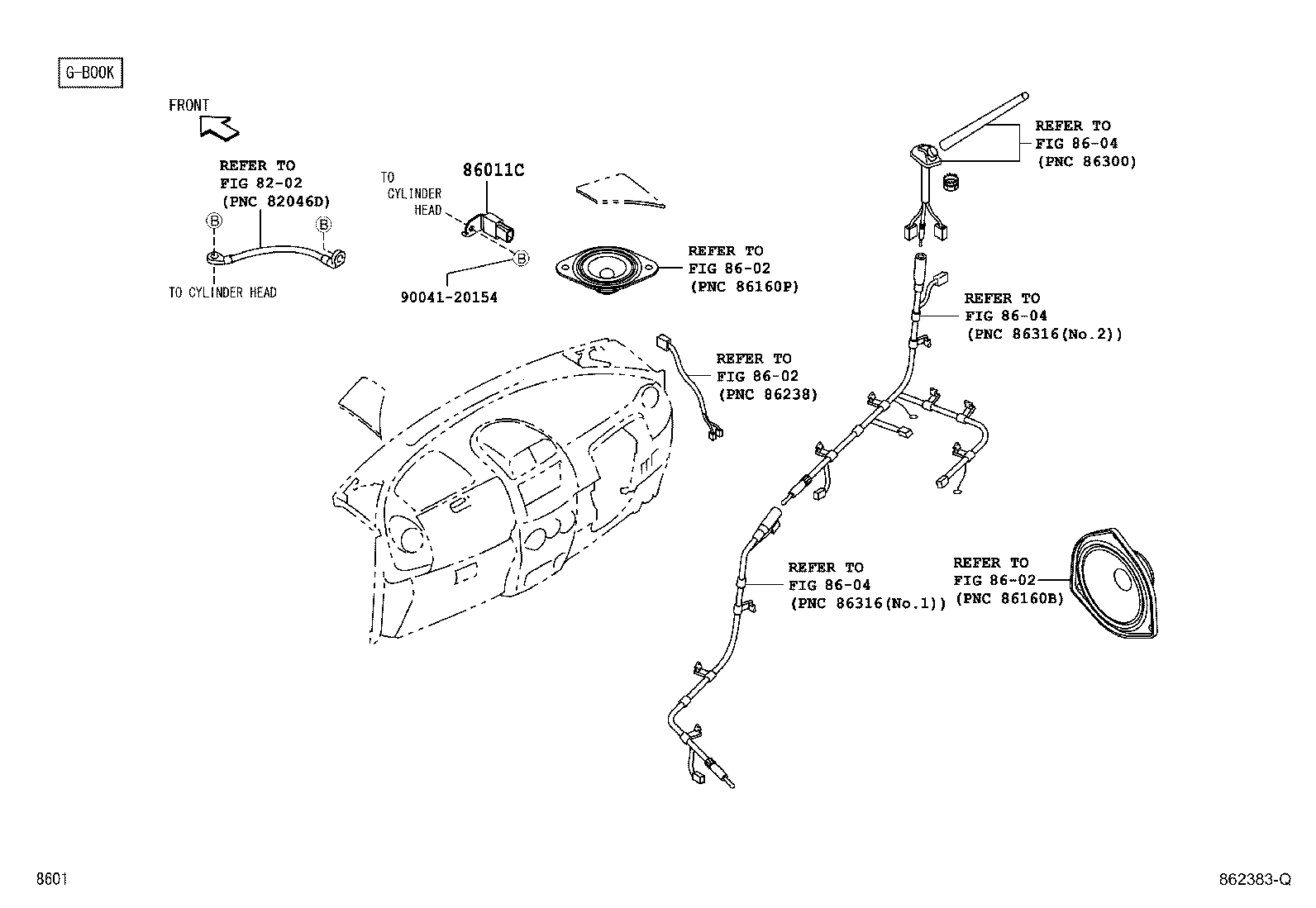

Figure 862383Q

862383Q 2004-05 → 2010-02

Part groups

PNC	Description
86011C	Filter, Noise
86120	Receiver Assy, Radio
86180	Tuner Assy, Stereo Component
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
