Toyota Passo

2004-05 → 2010-02 · chassis KGC1#,QNC10 · catalogue 113120 · Japan

Supported model Data version 2010-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

13 part groups · 2 illustrations

Illustrations

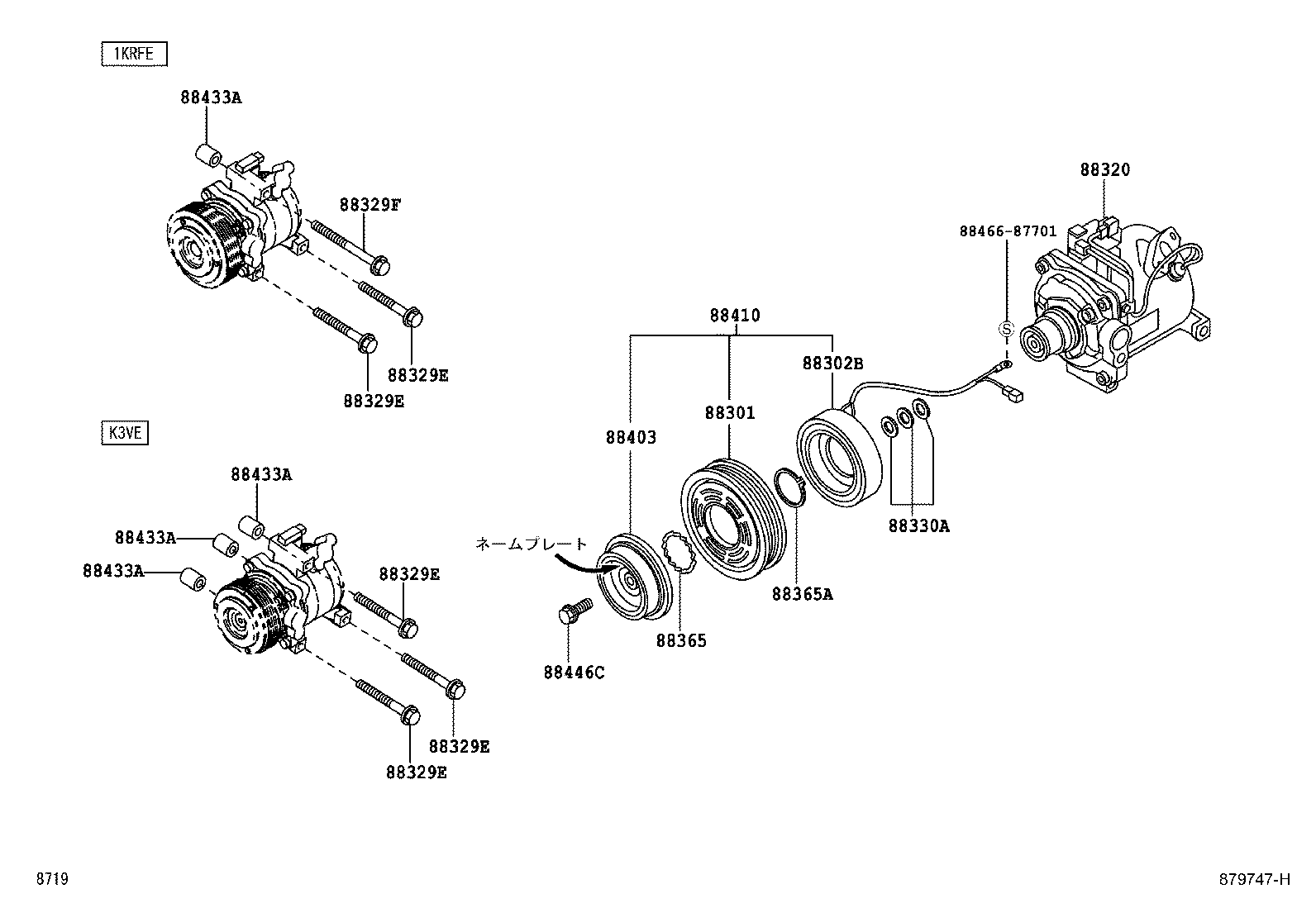

Figure 876932U 876932U 2004-05 → 2005-12 Figure 879747H 879747H 2005-12 → 2010-02

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302B Stator, Magnet Clutch
88320 Compressor Assy, Cooler
88329E Bolt, Compressor, NO.1
88329F Bolt, Compressor, NO.2
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88365 Ring, Snap
88365A Ring, Snap (FOR COMPRESSOR)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88433A Stay, Compressor
88446C Bolt, Magnet Clutch Setting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
