Toyota Passo
2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan
Supported model
Data version 2016-10

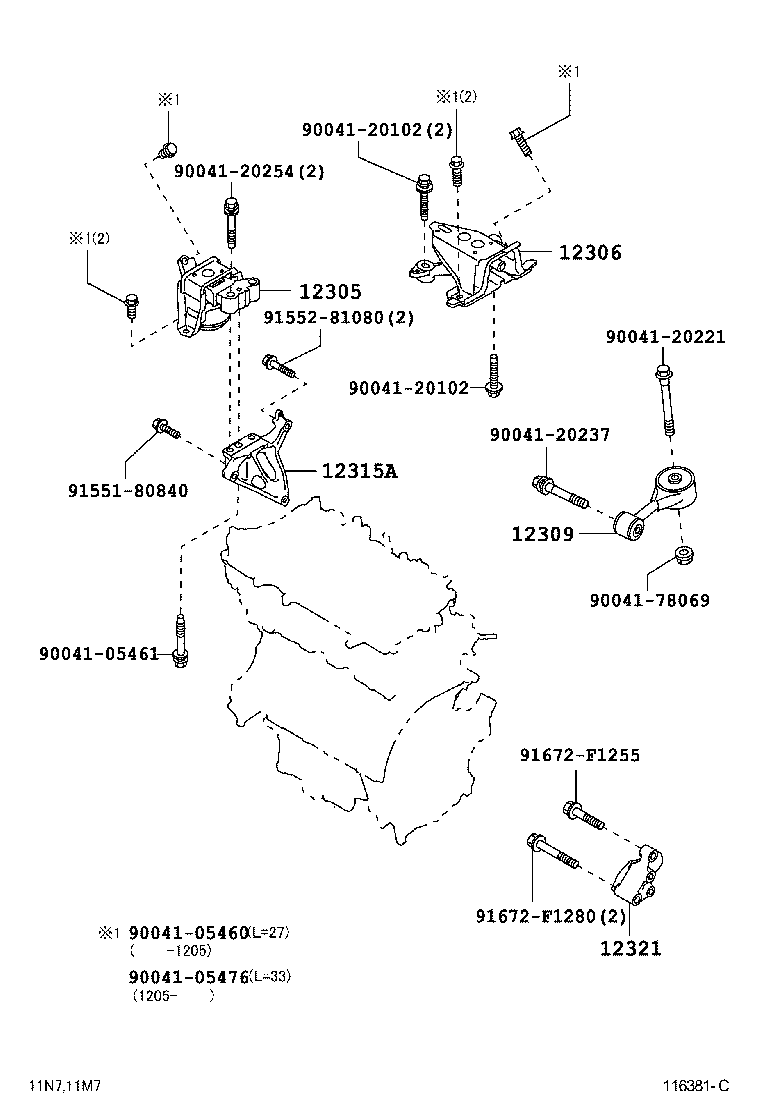

Mounting
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12306 | Insulator Sub-assy, Engine Mounting, LH |
| 12309 | Rod Sub-assy, Engine Moving Control |
| 12315A | Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12321 | Bracket, Engine Mounting, Rear, NO.1 |
| 12380 | Insulator Assy, Engine Mounting, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
