Toyota Passo
2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan
Supported model
Data version 2016-10

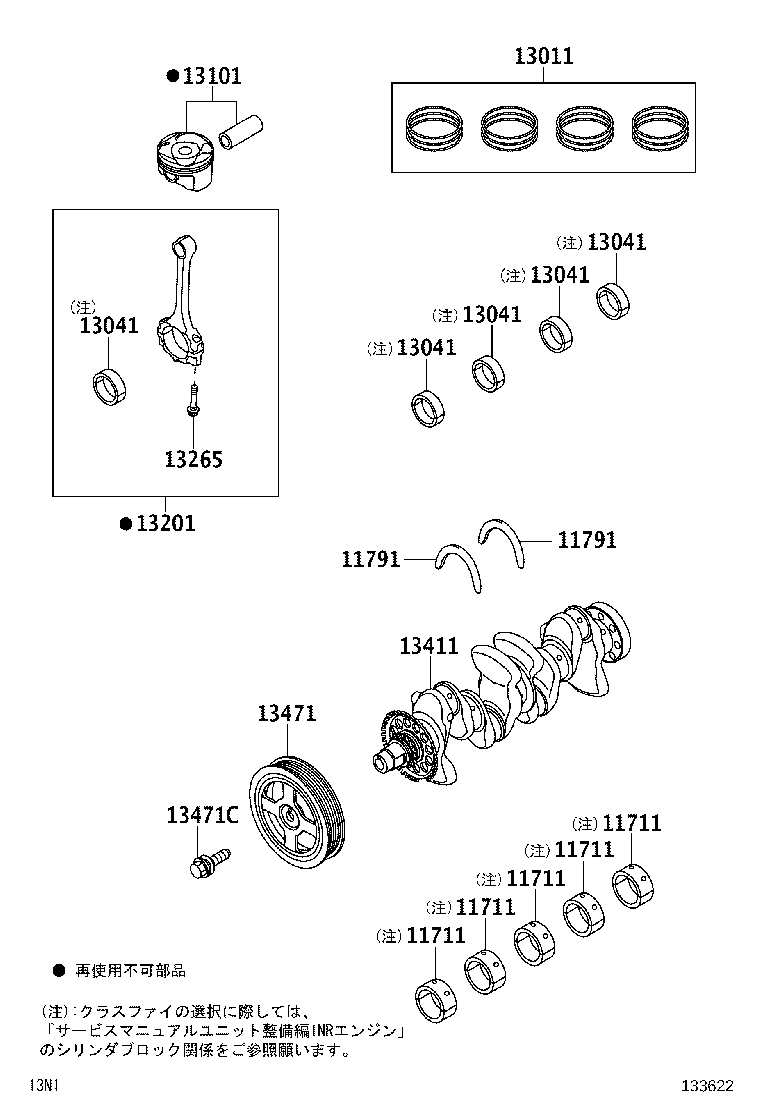

Crankshaft & Piston
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11702 | Bearing Set, Crankshaft |
| 11711 | Bearing, Crankshaft |
| 11791 | Washer, Crankshaft Thrust, Upper |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101 | Piston Sub-assy, W/Pin |
| 13201 | Rod Sub-assy, Connecting |
| 13202 | Bearing Set, Connecting Rod |
| 13265 | Bolt, Connecting Rod |
| 13411 | Crankshaft |
| 13471 | Pulley, Crankshaft |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
