Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

14 part groups · 3 illustrations

Illustrations

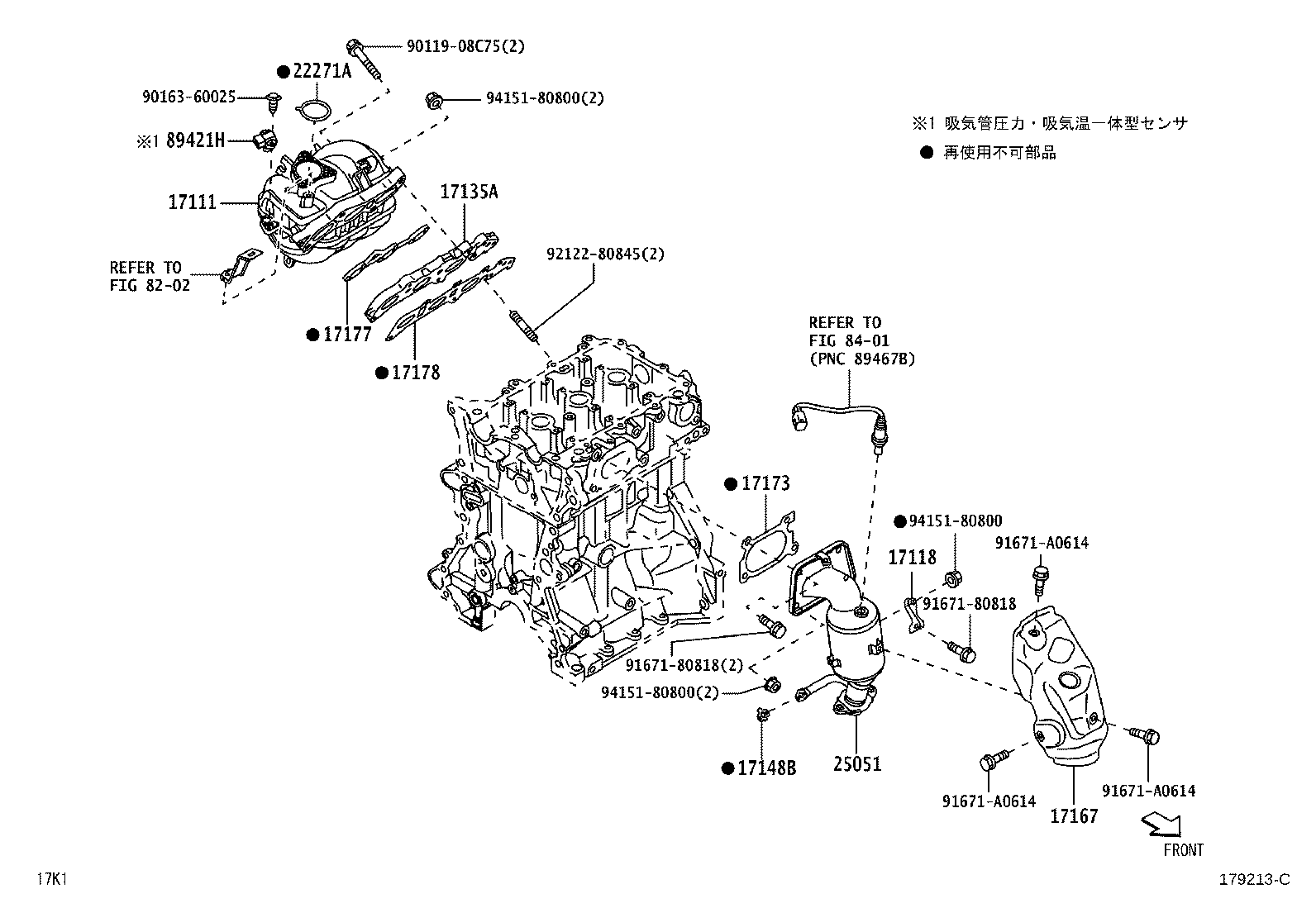

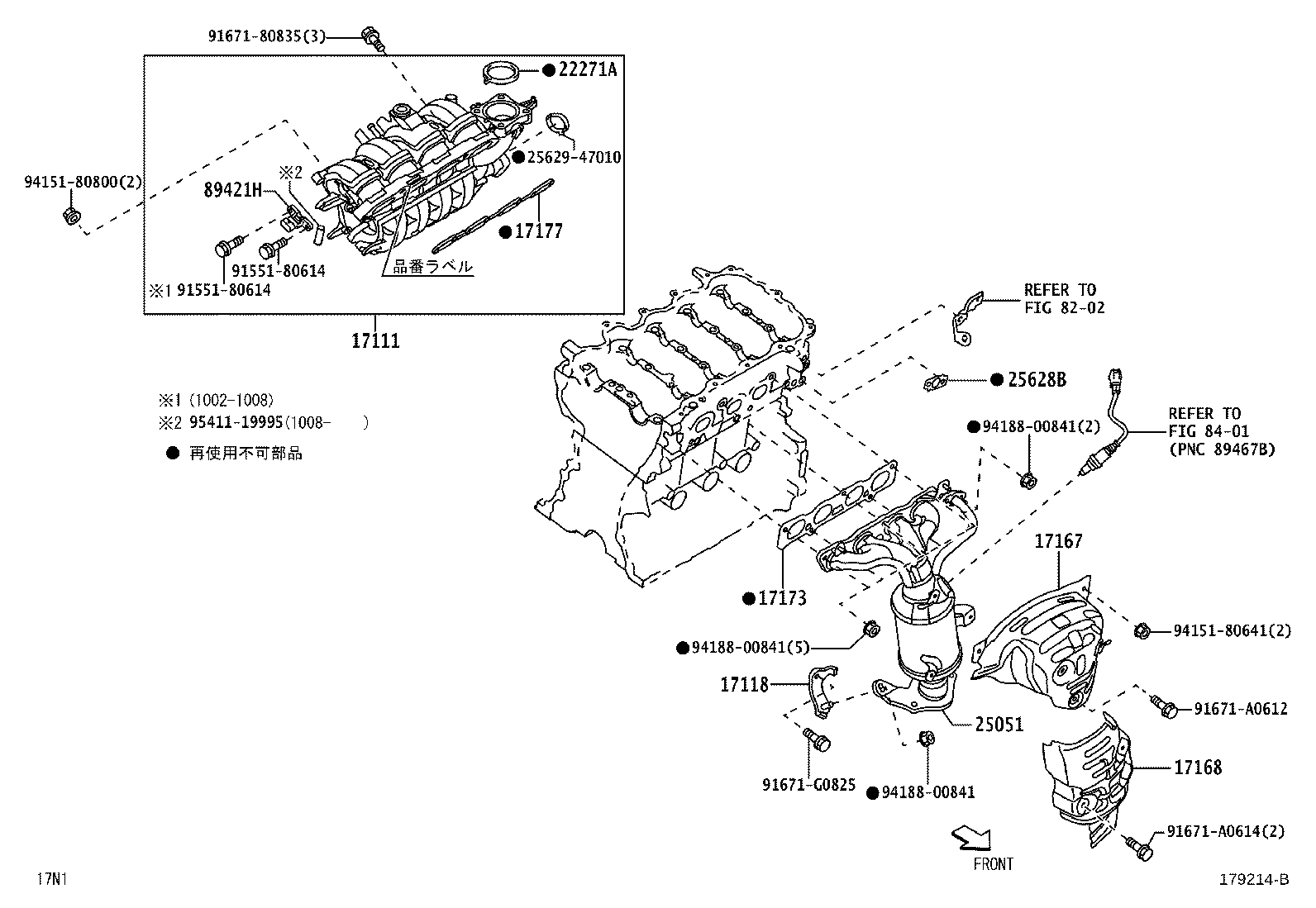

Figure 179212C 179212C 2010-02 → 2014-04 Figure 179213C 179213C 2014-04 → — Figure 179214B 179214B 2010-02 → —

Part groups

PNCDescription
17111 Manifold, Intake
17118 Stay, Manifold
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17148B Gasket, Egr Inlet
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
22271A Gasket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25628B Gasket, Egr Inlet
89421H Sensor, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
