Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

16 part groups · 3 illustrations

Illustrations

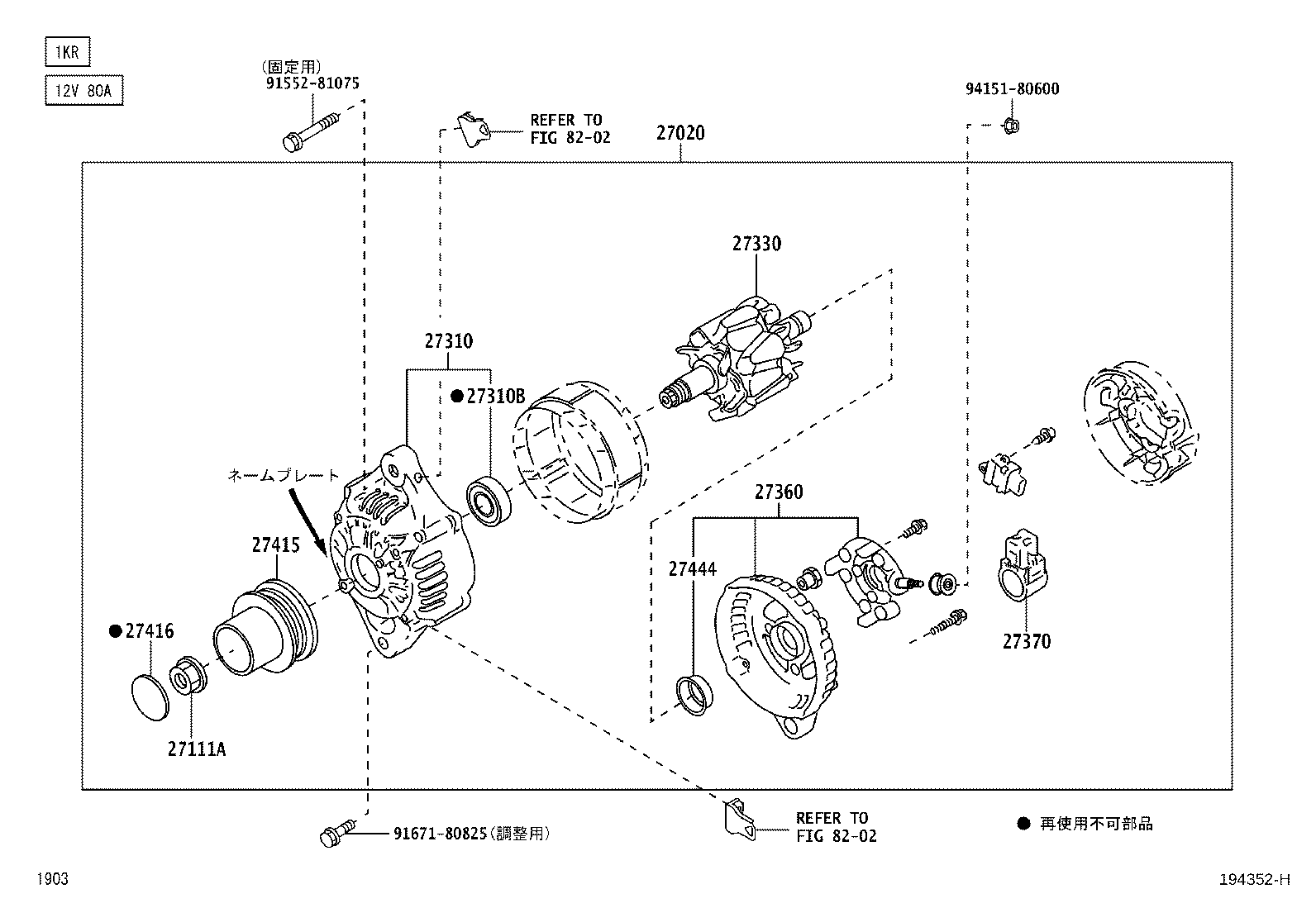

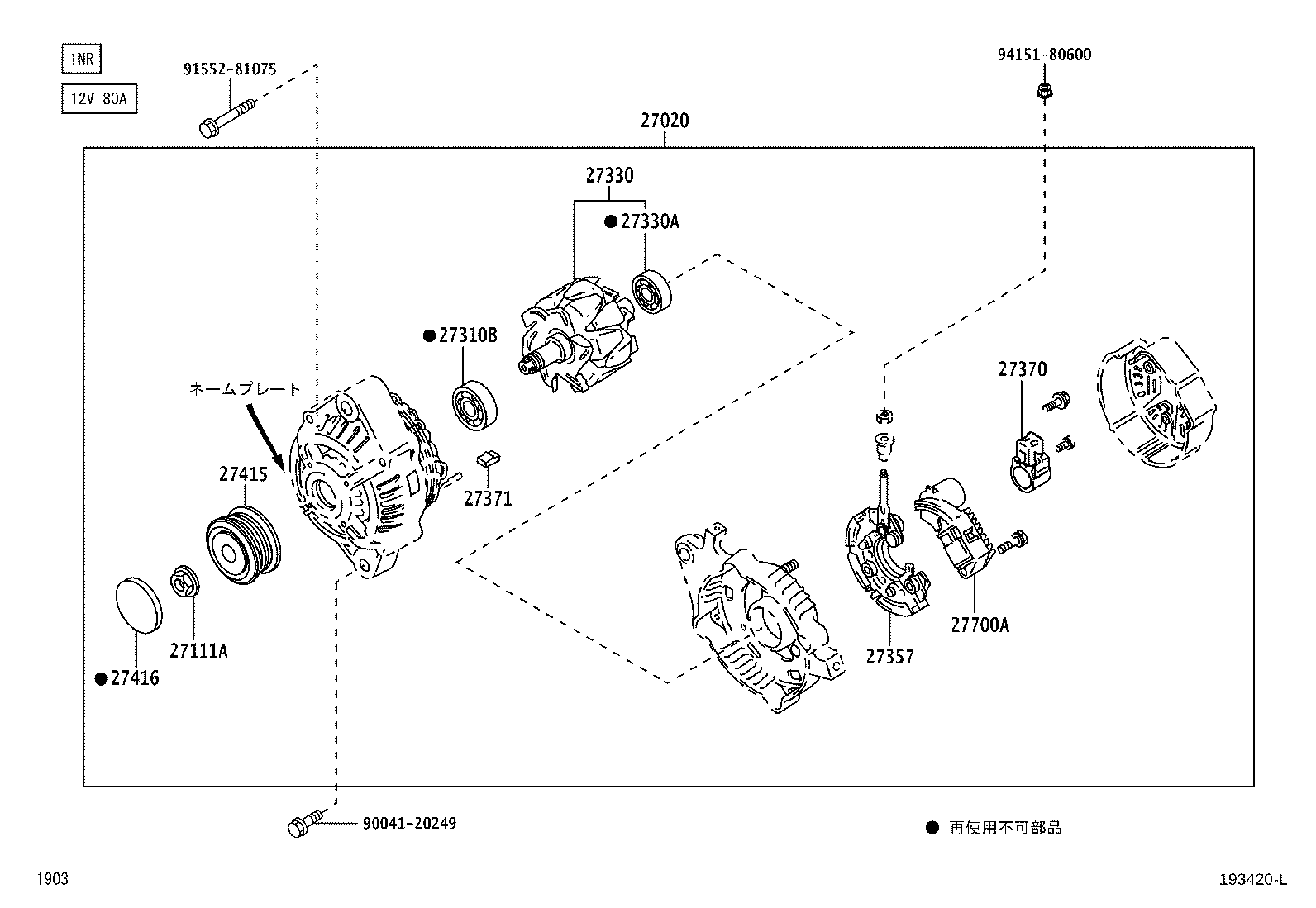

Figure 193419J 193419J 2010-02 → 2014-04 Figure 194352H 194352H 2014-04 → — Figure 193420L 193420L 2010-02 → —

Part groups

PNCDescription
27020 Alternator Assy
27111A Nut, Alternator
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27357 Holder, Alternator, W/Rectifier
27360 Coil Assy, Alternator
27370 Holder Assy, Alternator Brush
27371 Brush, Alternator
27372 Spring, Alternator Brush
27411 Pulley, Alternator
27415 Pulley, Alternator W/Clutch
27416 Cap, Alternator Pulley
27444 Packing, Alternator Bearing Cover
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
