Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle Assy(CVT)

67 part groups · 9 illustrations

Illustrations

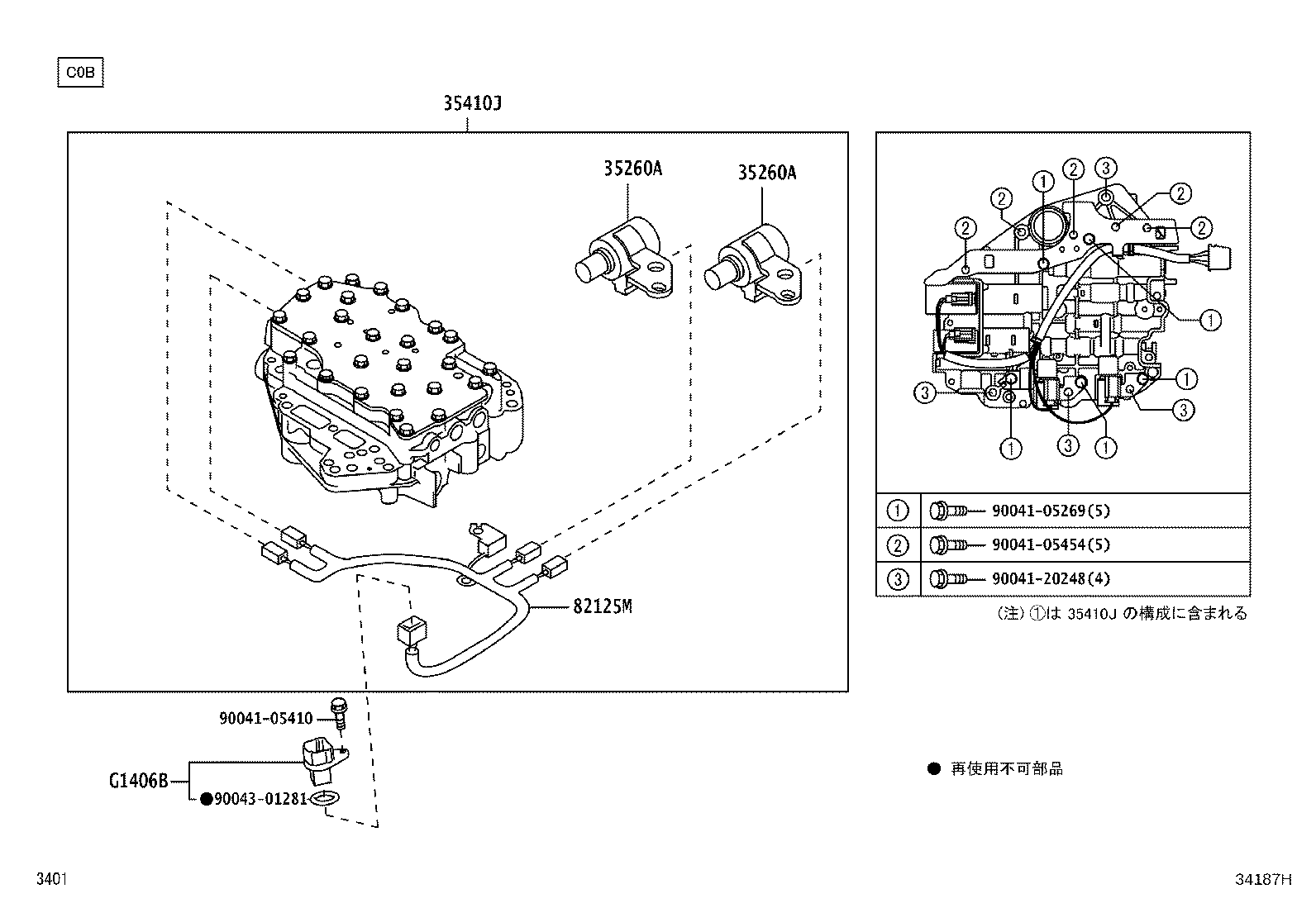

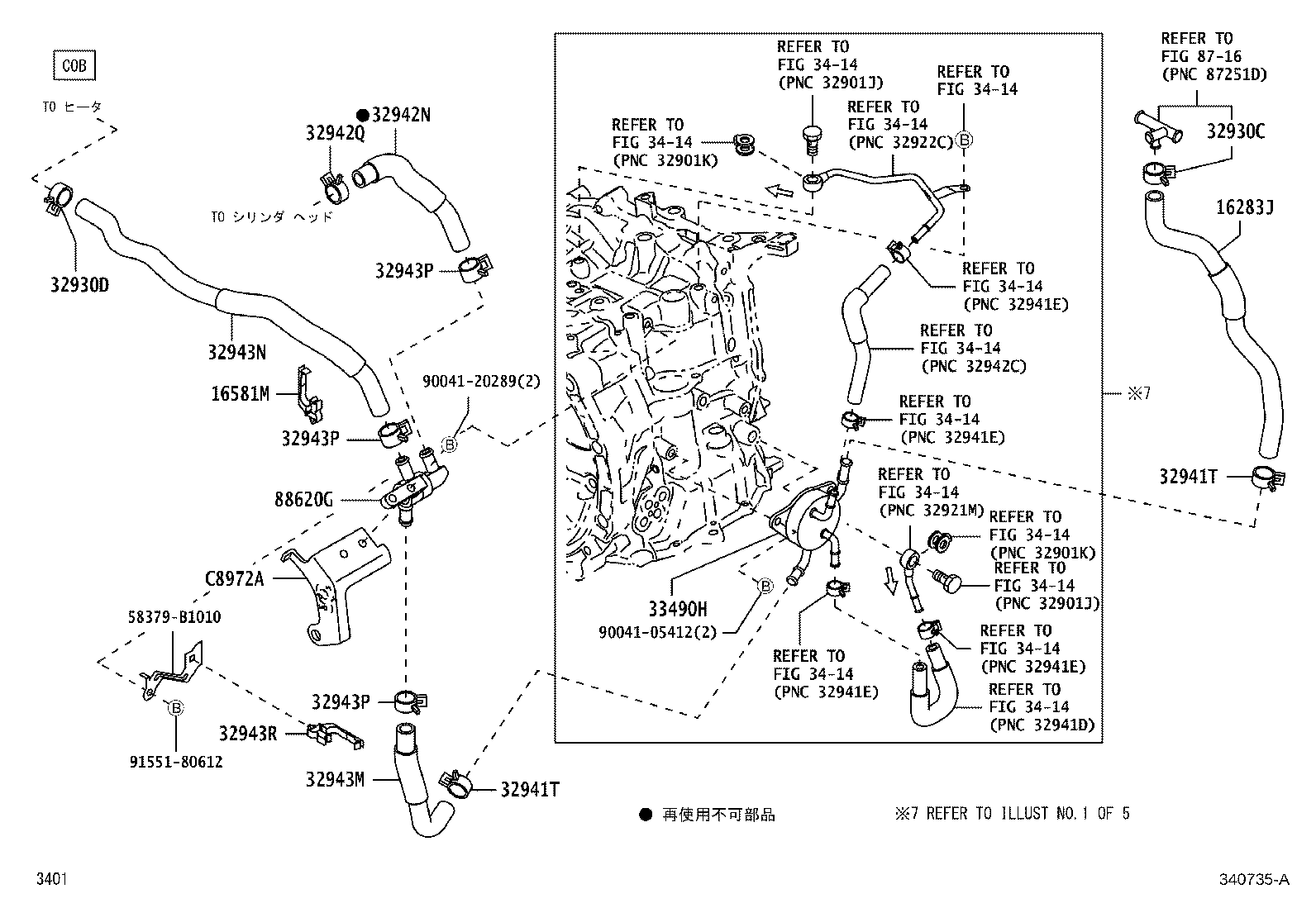

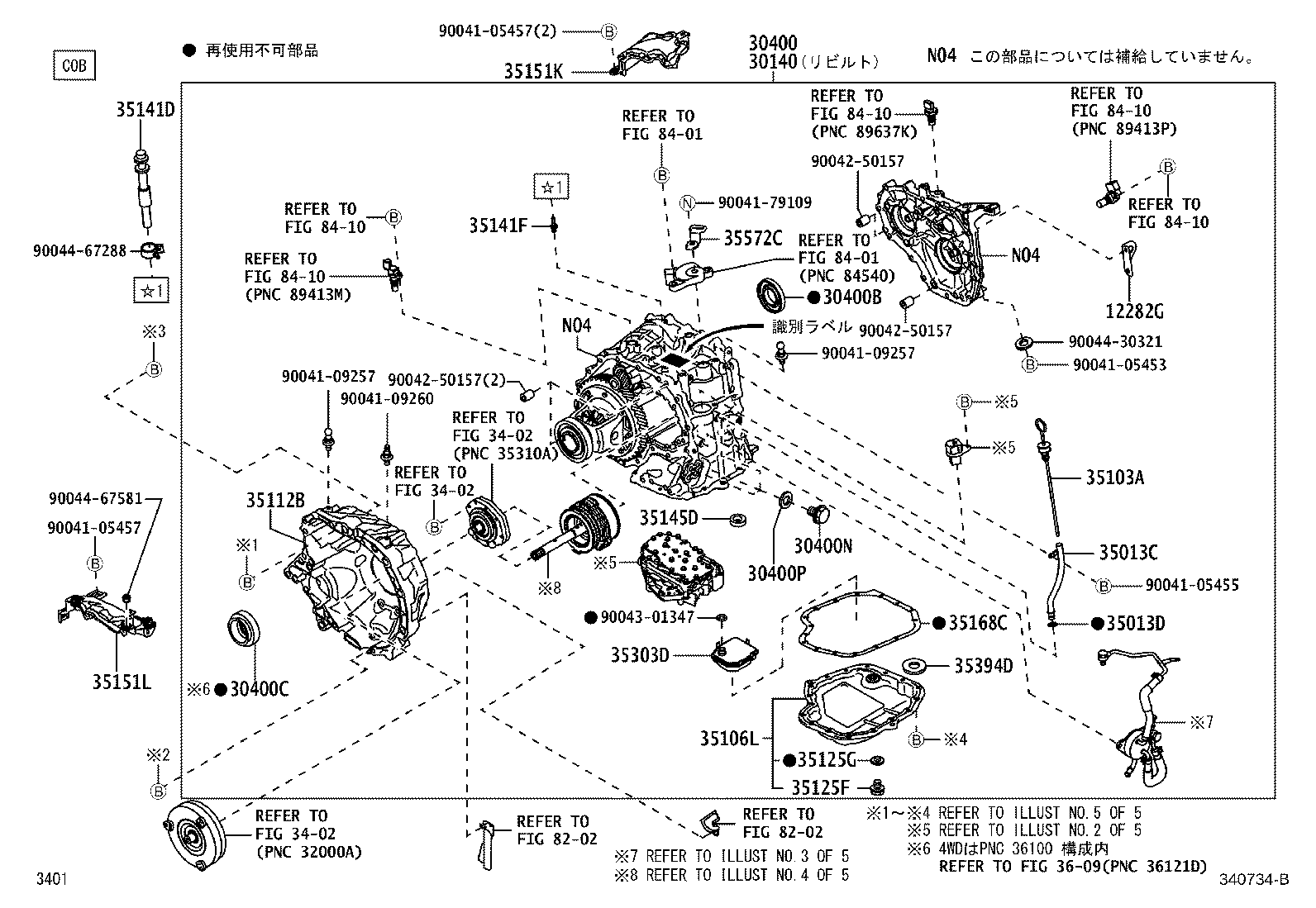

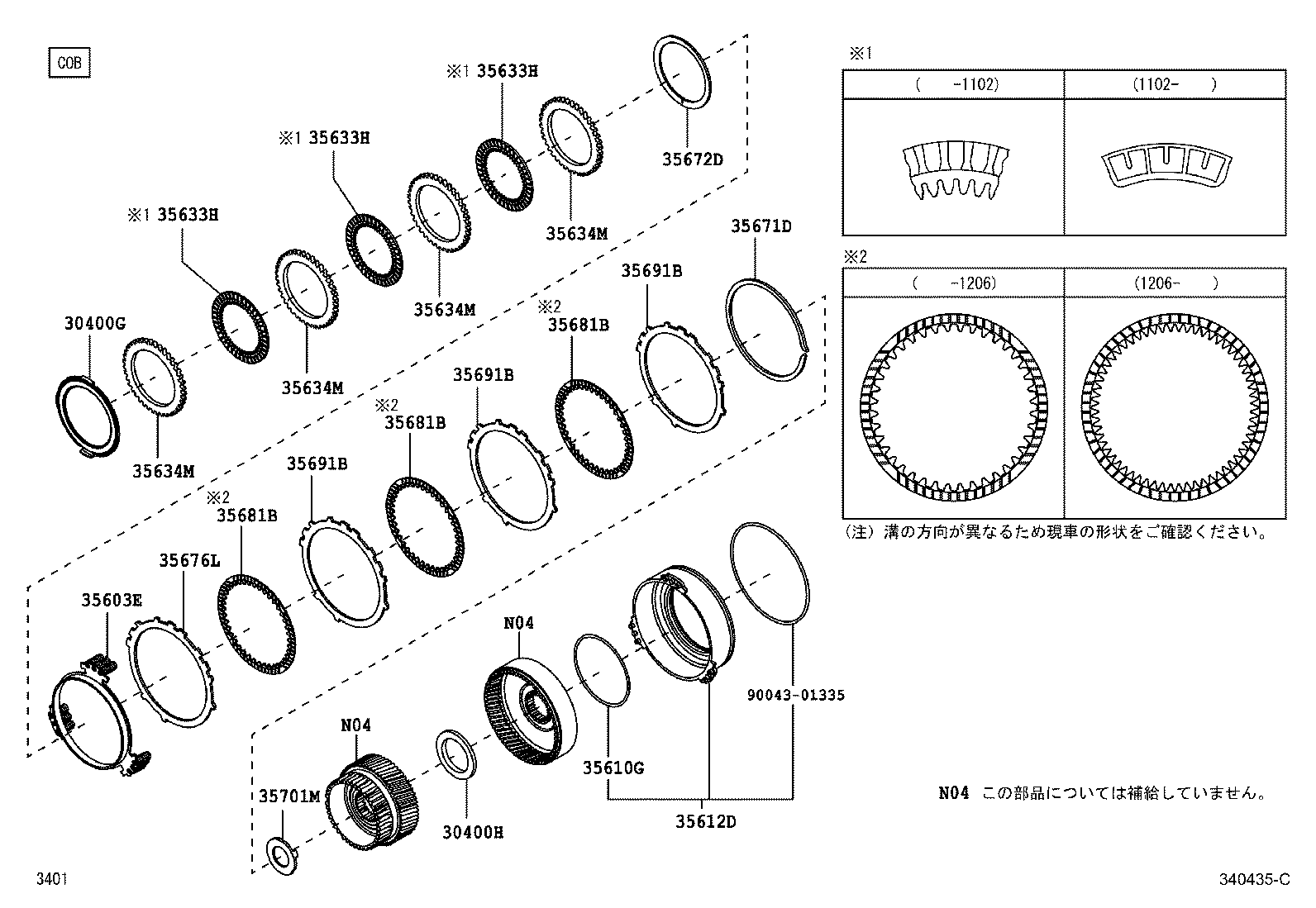

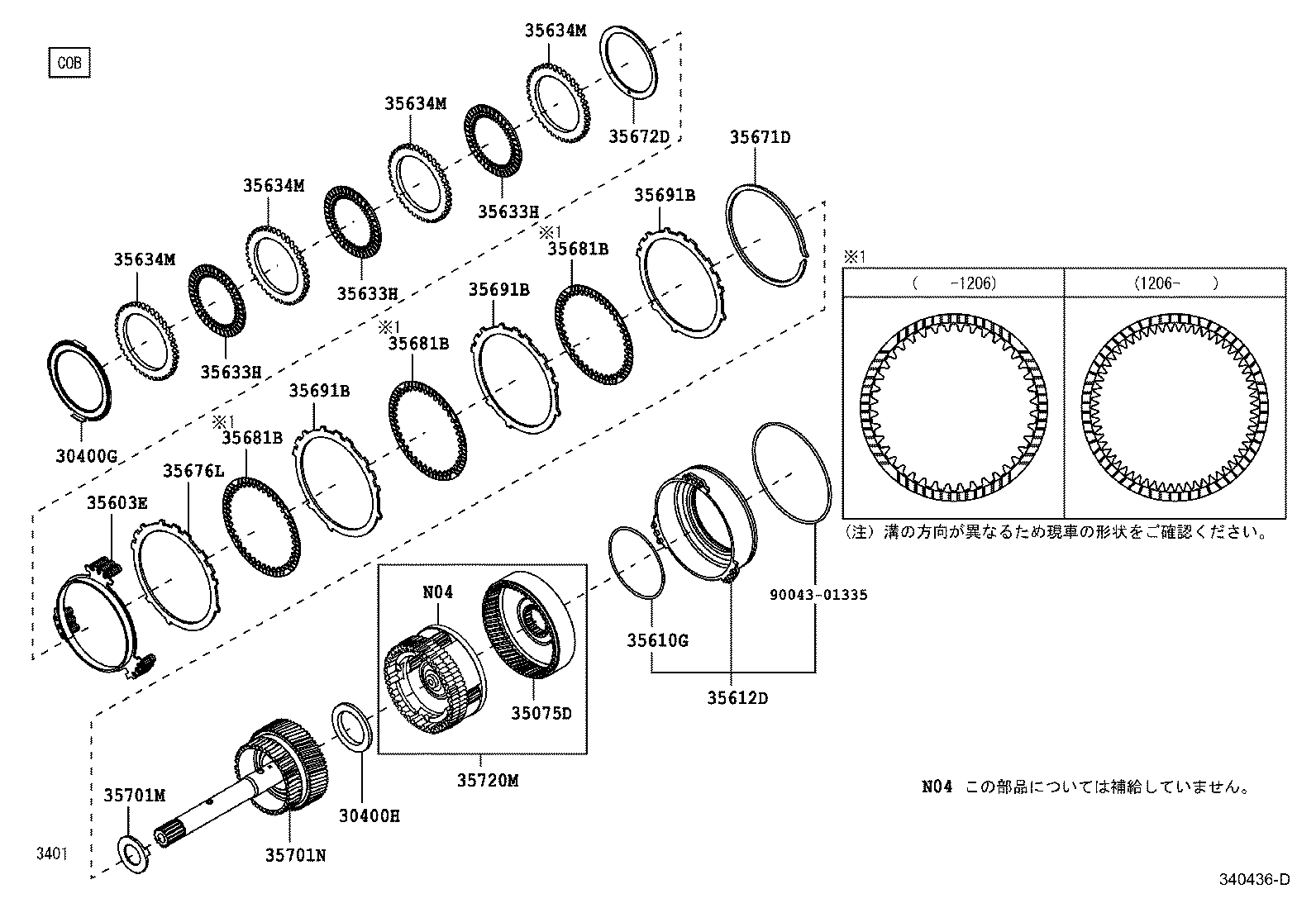

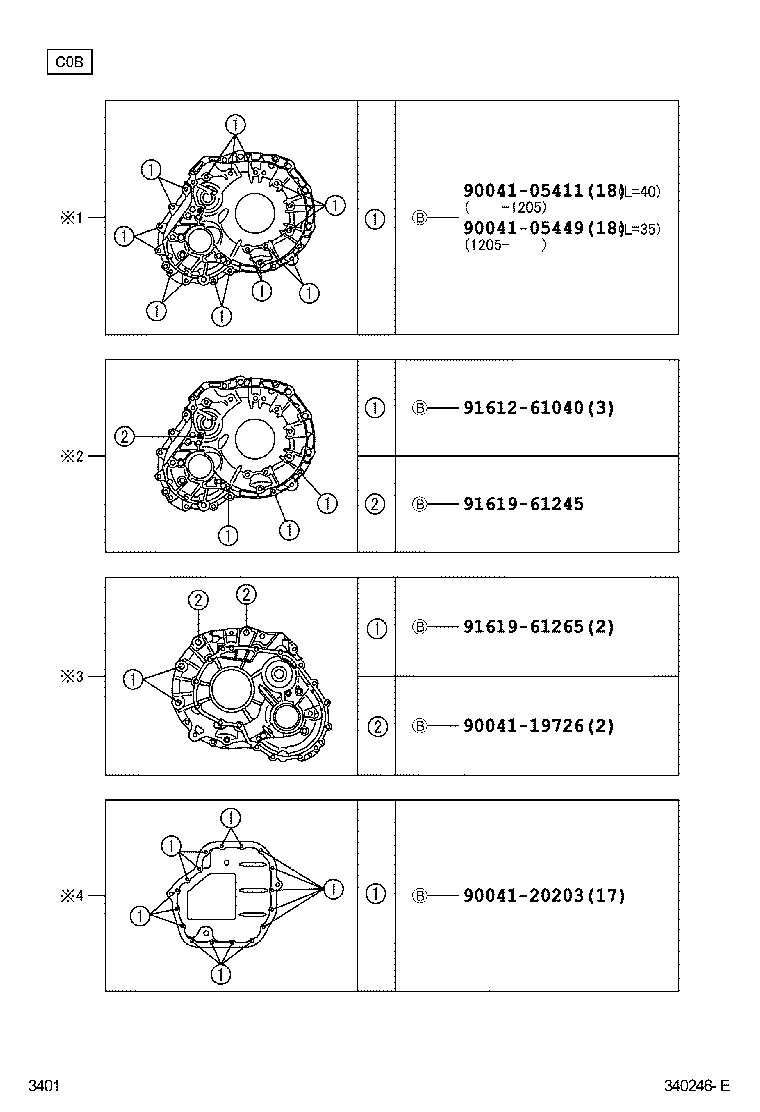

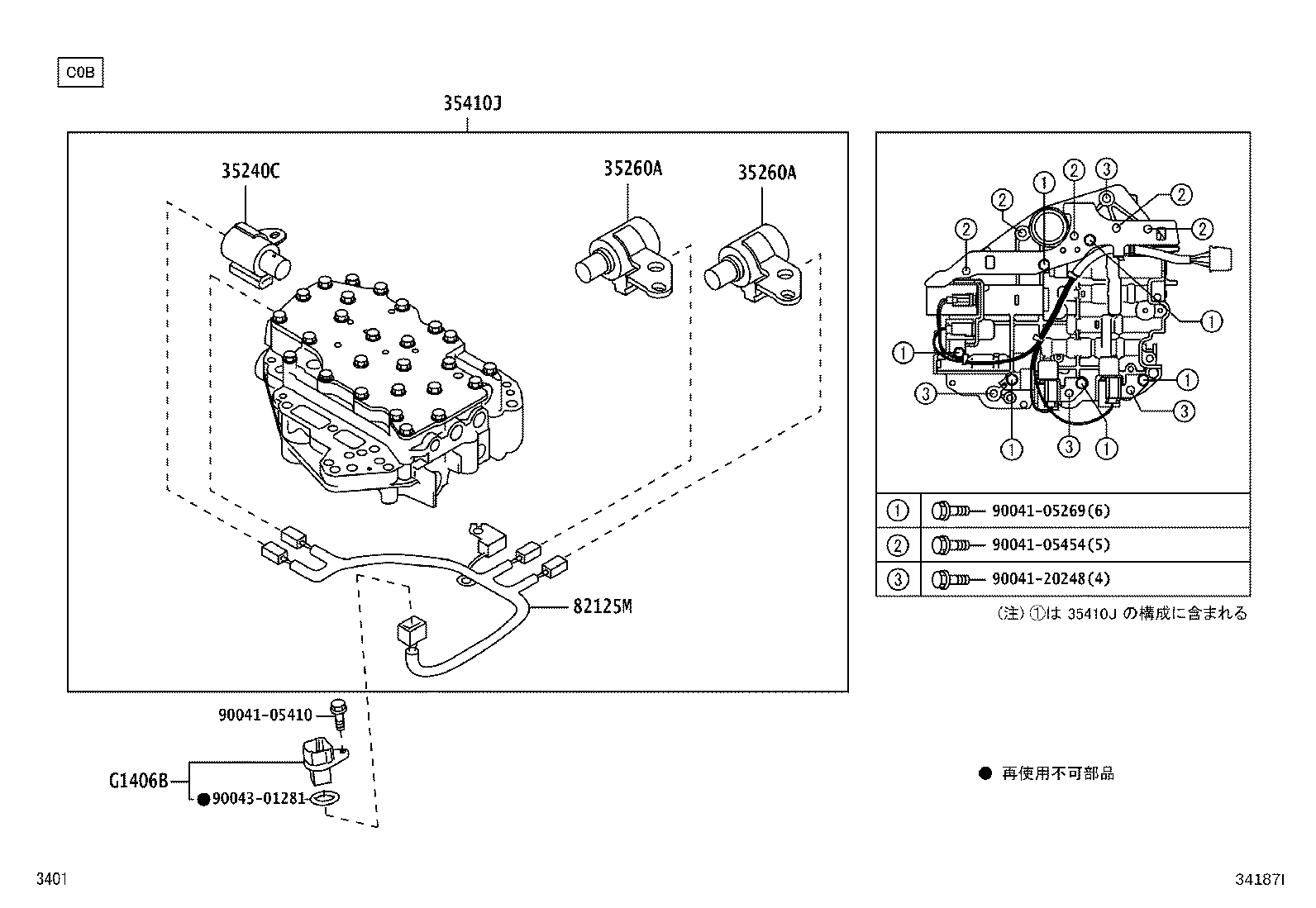

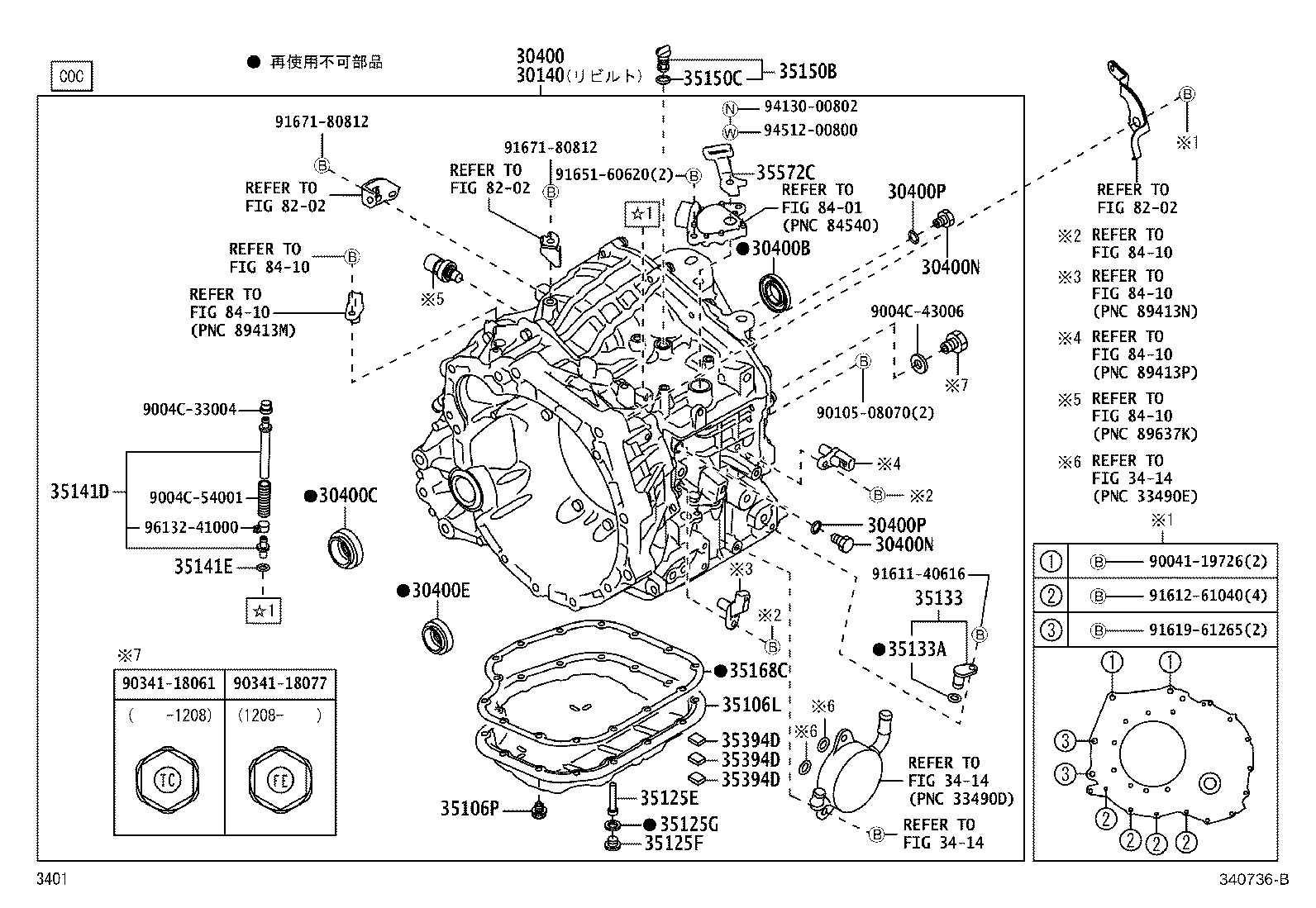

Figure 340733B 340733B 2010-02 → 2014-04 Figure 340734B 340734B 2014-04 → — Figure 34187H 34187H 2010-02 → 2012-06 Figure 34187I 34187I 2012-06 → — Figure 340735A 340735A 2014-04 → — Figure 340435C 340435C 2010-02 → 2012-06 Figure 340436D 340436D 2012-06 → — Figure 340246E 340246E 2010-02 → — Figure 340736B 340736B 2010-02 → —

Part groups

PNCDescription
12282G Hanger, Transaxle
16283J Hose, Water By-pass, NO.6
16581M Clamp, Hose(FOR WATER HOSE)
30140 Transaxle Assy, Cvt, Rebuilt(W/O TORQUE CONVERTER)
30400 Transaxle Assy, Continuously Variable
30400B Seal, Type T Oil, NO.1(FOR CVT)
30400C Seal, Type T Oil, NO.2(FOR CVT)
30400E Seal, Type T Oil(FOR CVT OIL PUMP)
30400G Bearing, Thrust Needle Roller
30400H Bearing, Thrust Needle Roller
30400N Plug, Refill(CVT)
30400P Gasket, Refill Plug(CVT)
32930C Clip, NO.1(FOR OIL COOLER HOSE)
32930D Clip, NO.2(FOR OIL COOLER HOSE)
32941T Clip, NO.1(FOR OIL COOLER HOSE)
32942N Hose, Oil Cooler Outlet, NO.1
32942Q Clip, NO.1(FOR OIL COOLER HOSE)
32943M Hose, Transmission Oil Cooler, NO.1
32943N Hose, Transmission Oil Cooler, NO.2
32943P Clip, NO.1(FOR OIL COOLER HOSE)
32943R Clamp, NO.1(FOR OIL COOLER HOSE)
33490H Cooler Assy, Transmission Oil
35013C Tube Sub-assy, Transmission Oil Filler
35013D Ring, O(FOR TRANSMISSION OIL FILLER TUBE)
35075D Gear Sub-assy, Front Planetary Ring
35103A Gage Sub-assy, Transmission Oil Level
35106L Pan Sub-assy, Transaxle Oil(CVT)
35106P Bolt(FOR TRANSAXLE OIL PAN)
35112B Case, Torque Converter & Diffrential
35125E Tube, Overflow(CVT)
35125F Plug, Overflow(CVT)
35125G Gasket, Overflow Plug(CVT)
35133 Plug, Transmission Oil Filler
35133A Ring, O (FOR TRANSMISSION OIL FILLER PLUG)
35141D Hose(FOR BREATHER PLUG)
35141E Ring, O(FOR BREATHER PLUG)
35141F Plug, Breather, NO.1(CVT)
35145D Gasket, Transaxle Case
35150B Plug Assy, Transmission Case
35150C Ring, O (FOR TRANSMISSION CASE PLUG)
35151K Cover, Automatic Transmission Case
35151L Cover, Automatic Transmission Case
35168C Gasket, Transaxle Oil Pan(CVT)
35240C Solenoid Assy, Transmission 3Way, NO.1
35260A Solenoid Assy, Transmission 3Way, NO.4
35303D Strainer Sub-assy, Oil
35394D Magnet, Oil Cleaner(CVT)
35410J Body Assy, Transmission Valve
35572C Lever, Transmission Control Shaft
35603E Spring Sub-assy, Forward Clutch Return
35610G Ring, O (FOR FORWARD MULTIPLE DISC CLUTCH)
35612D Piston, Forward Clutch
35633H Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
35634M Plate, Clutch, NO.1(FOR FORWARD MULTIPLE DISC CLUTCH)
35671D Plate, Brake Cushion
35672D Plate, Clutch Cushion
35676L Flange, Brake
35681B Disc, Brake, NO.1
35691B Plate, Brake, NO.1
35701M Bearing, Thrust Needle Roller (FOR INPUT SHAFT)
35701N Shaft Sub-assy, Input
35720M Gear Assy, Planetary
58107E Bracket Sub-assy, Clamp Set, NO.1
82125M Wire, Transmission
88620G Thermostat Assy
C8972A Bracket, Thermostat
G1406B Connector Sub-assy, Trans Solenoid
