Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube(CVT)

9 part groups · 4 illustrations

Illustrations

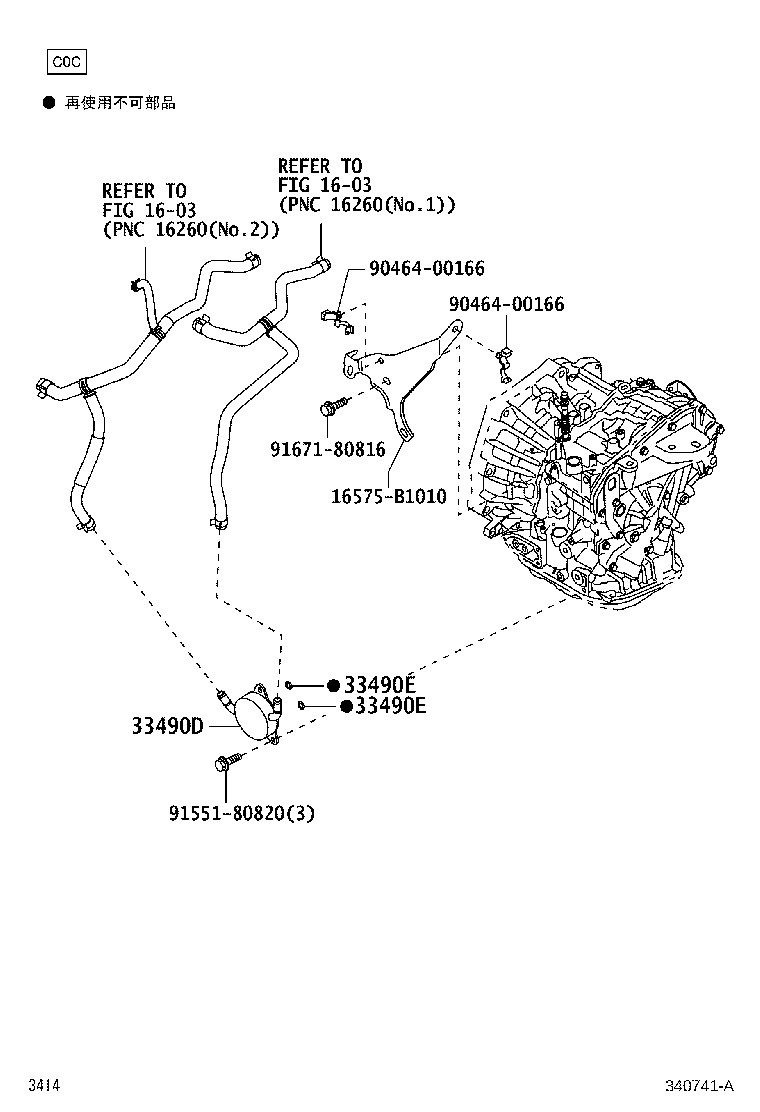

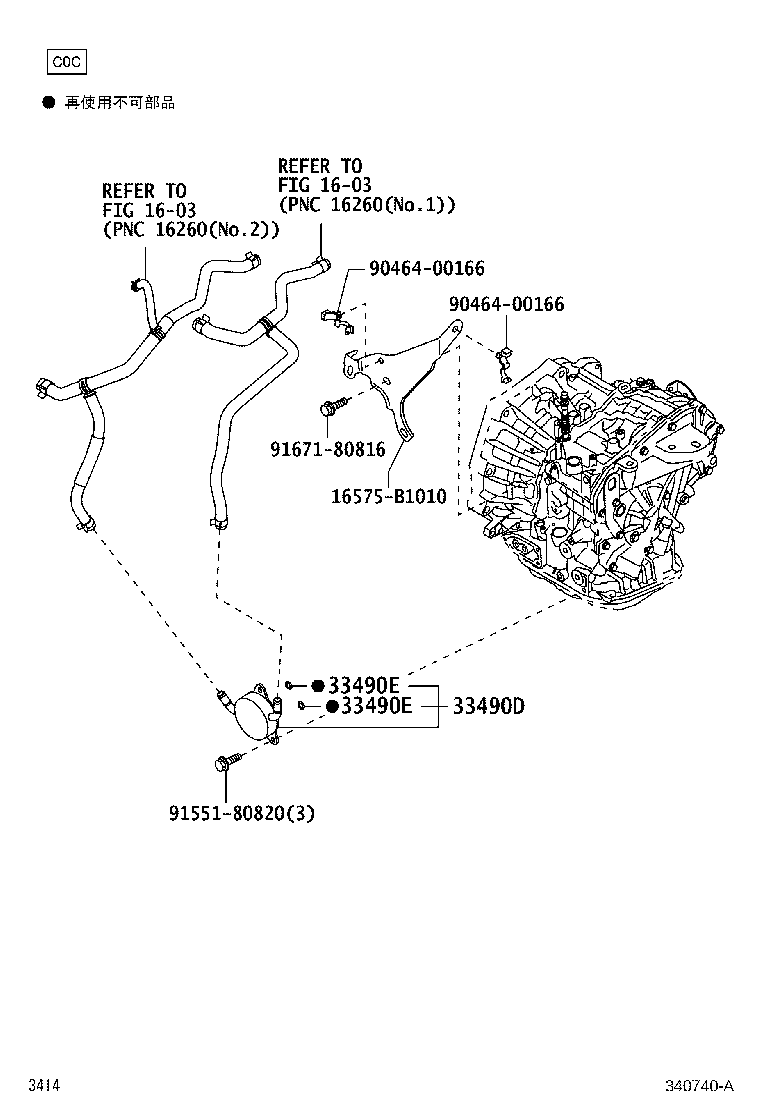

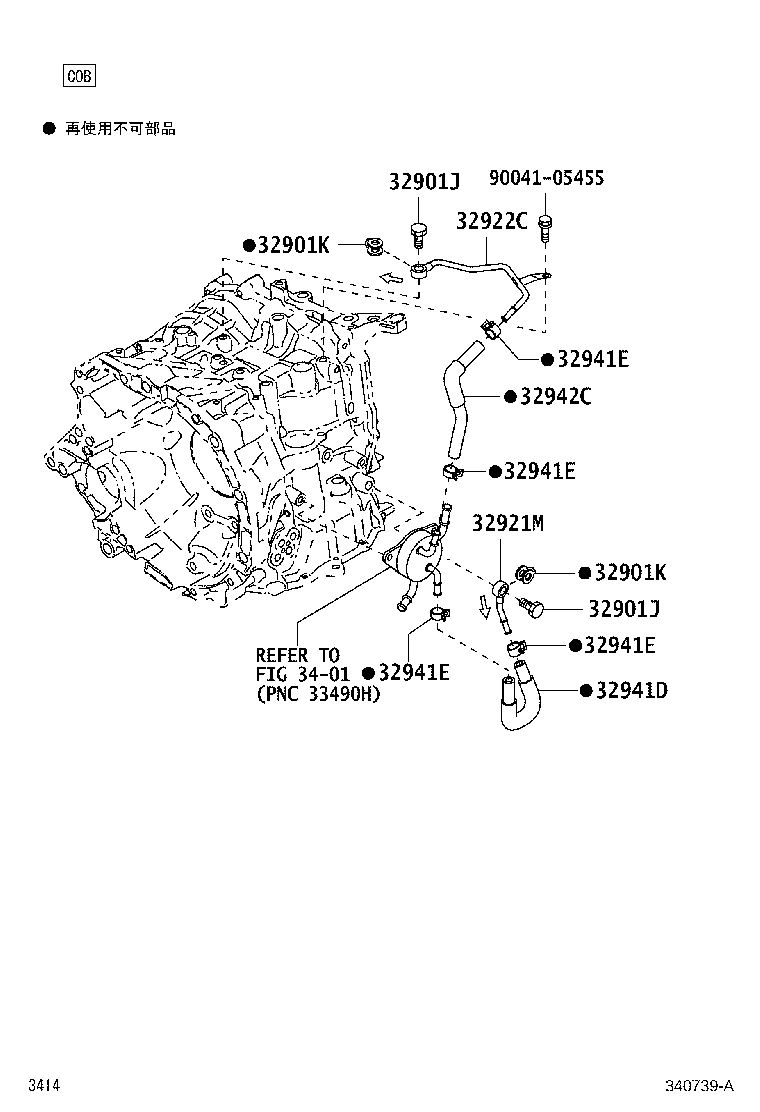

Figure 34187J 34187J 2010-02 → 2014-04 Figure 340739A 340739A 2014-04 → — Figure 340740A 340740A 2010-02 → 2010-04 Figure 340741A 340741A 2010-05 → —

Part groups

PNCDescription
32901J Bolt, Union(FOR OIL COOLER)
32901K Gasket(FOR OIL COOLER UNION)
32921M Tube, Oil Cooler Inlet, NO.1
32922C Tube, Oil Cooler Outlet, NO.1
32941D Hose, Oil Cooler Inlet
32941E Clip(FOR OIL COOLER TUBE)
32942C Hose, Oil Cooler Outlet, NO.1
33490D Cooler Assy, Transmission Oil
33490E Ring, O (FOR TRANSMISSION OIL COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
