Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

9 part groups · 2 illustrations

Illustrations

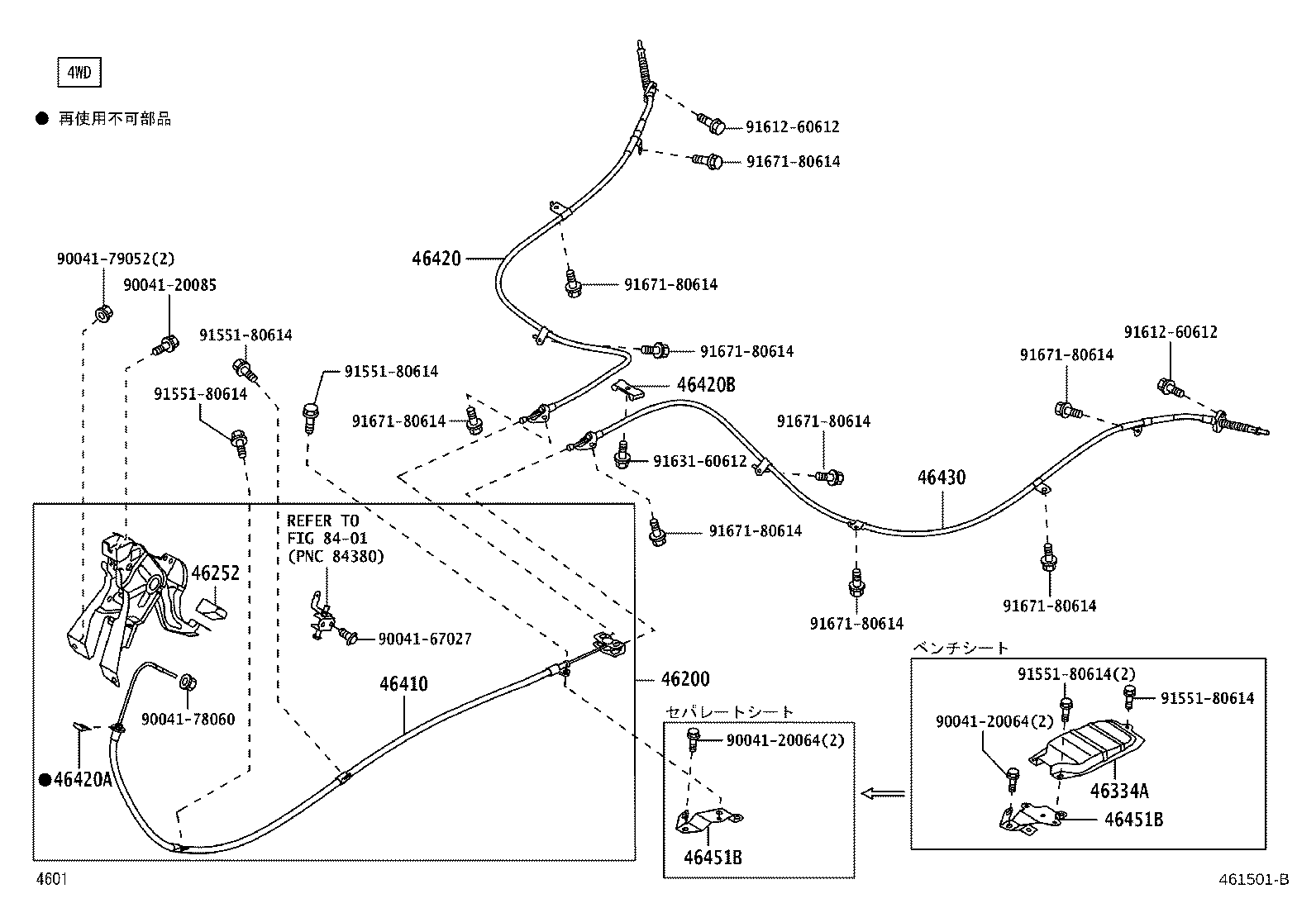

Figure 461500B 461500B 2010-02 → — Figure 461501B 461501B 2010-02 → —

Part groups

PNCDescription
46200 Pedal Assy, Parking Brake Control
46252 Pad, Parking Pedal
46334A Protector, Parking Brake Cable Joint
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46451B Bracket, Parking Brake Cable Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
