Toyota Passo
2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan
Supported model
Data version 2016-10

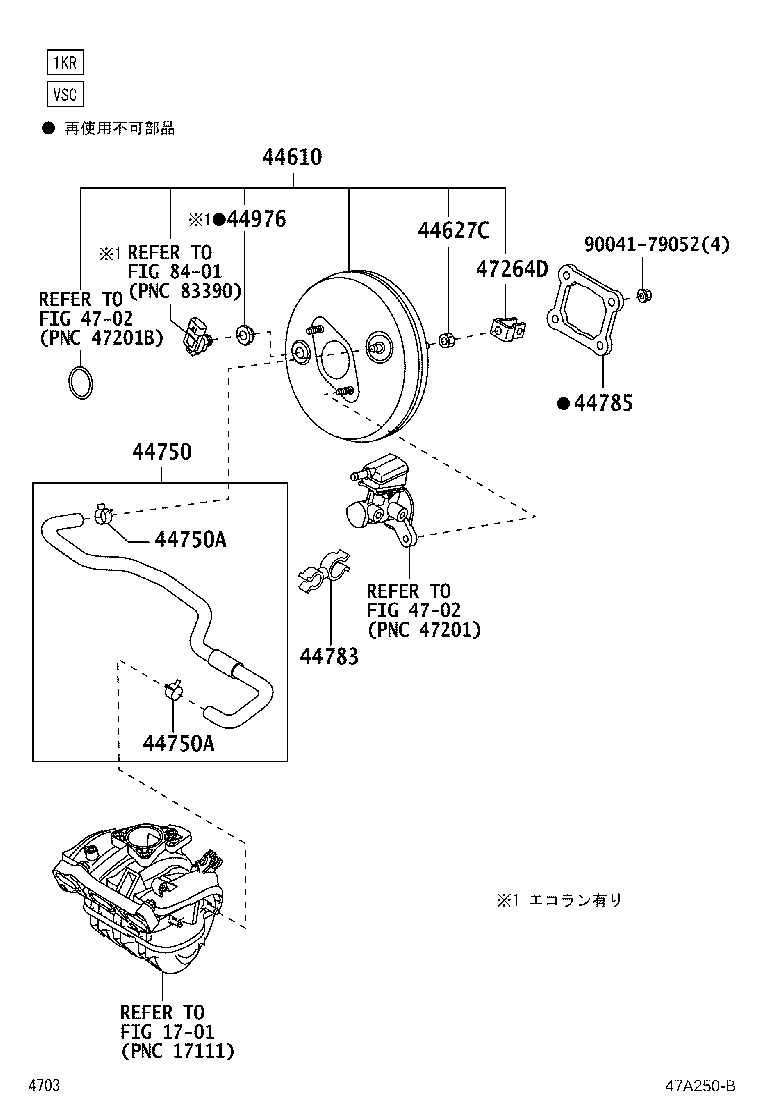

Brake Booster & Vacuum Tube
8 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44627C | Nut, Booster Sleeve Cylinder |
| 44750 | Hose Assy, Vacuum |
| 44750A | Clip(FOR VACUUM HOSE ASSY) |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 44976 | Seal, Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
