Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

22 part groups · 2 illustrations

Illustrations

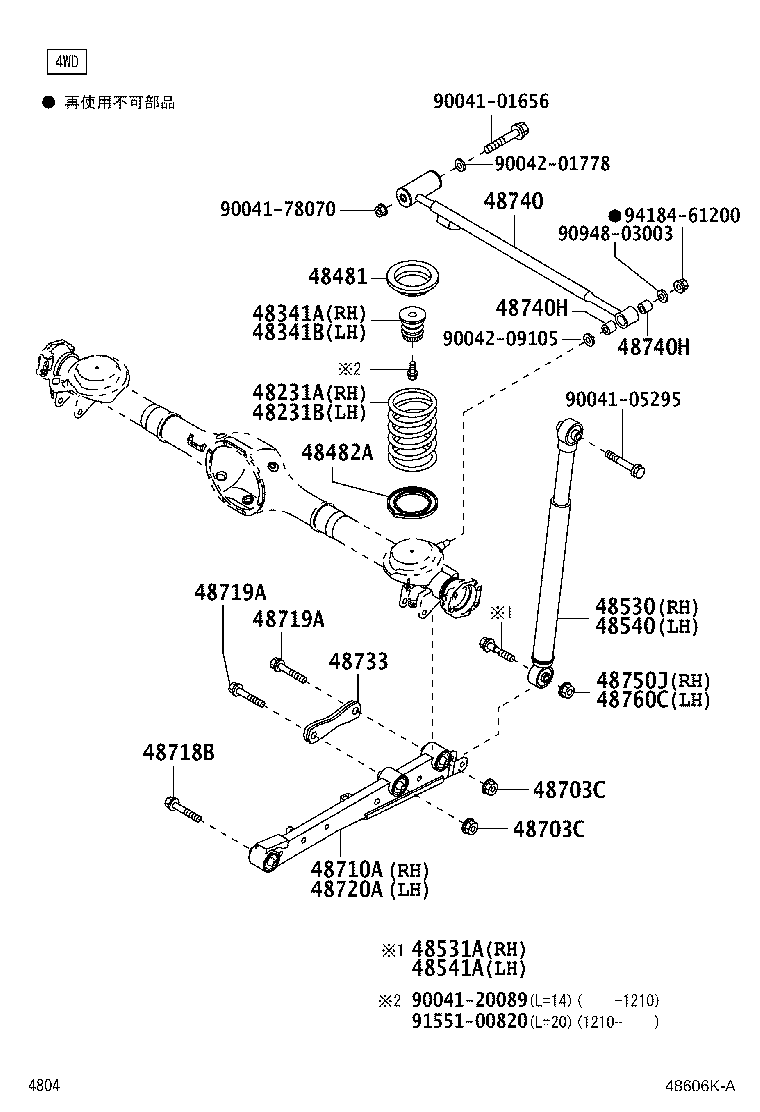

Figure 48606J 48606J 2010-02 → — Figure 48606KA 48606KA 2010-02 → —

Part groups

PNCDescription
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48481 Seat, Rear Spring, Upper
48482A Seat, Rear Spring, Lower
48530 Absorber Assy, Shock, Rear RH
48531A Bolt, Union(FOR REAR SHOCK ABSORBER RH)
48540 Absorber Assy, Shock, Rear LH
48541A Bolt, Union(FOR REAR SHOCK ABSORBER LH)
48703C Nut(FOR REAR SUSPENSION ARM)
48710A Arm Assy, Rear Suspension, NO.1 RH
48710J Arm Assy, Rear Suspension, NO.1
48718B Shaft, Rear Suspension Lower Arm, NO.1
48719A Shaft, Rear Suspension Lower Arm, NO.2
48720A Arm Assy, Rear Suspension, NO.1 LH
48725A Bolt(FOR LOWER CONTROL ARM)
48733 Reinforcement, Rear Suspension Arm
48740 Rod Assy, Rear Lateral Control
48740H Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48750J Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760C Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
