Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

19 part groups · 2 illustrations

Illustrations

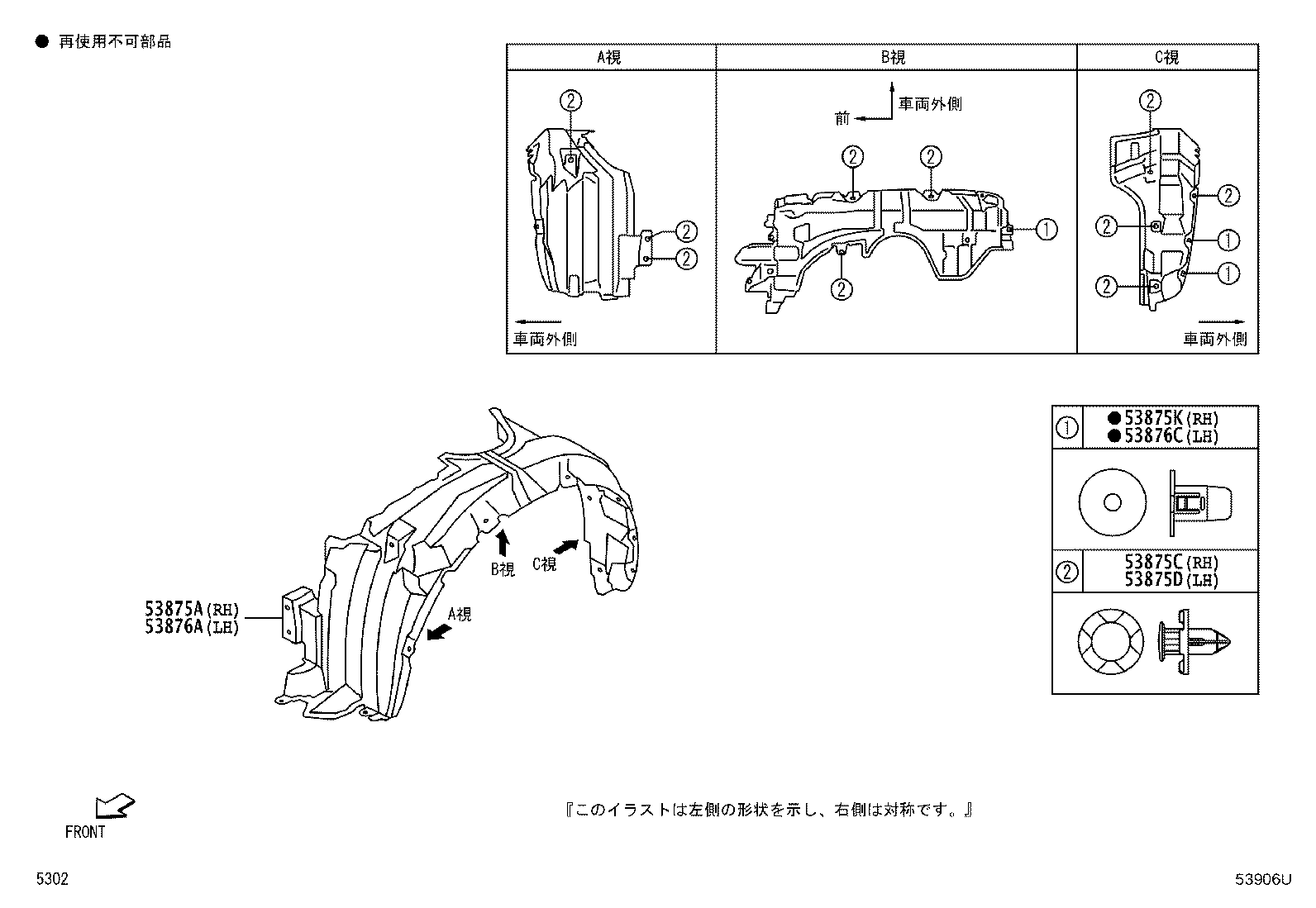

Figure 533198P 533198P 2010-02 → — Figure 53906U 53906U 2010-02 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384B Cushion, Hood, Center
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53868C Seal, Front Fender TO Cowl Side, NO.2 RH
53869A Seal, Front Fender TO Cowl Side, NO.2 LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875D Clip, Front Fender Liner, NO.2
53875K Grommet, Screw
53876A Liner, Front Fender, LH
53876C Grommet, Screw
53882F Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
