Toyota Passo
2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan
Supported model
Data version 2016-10

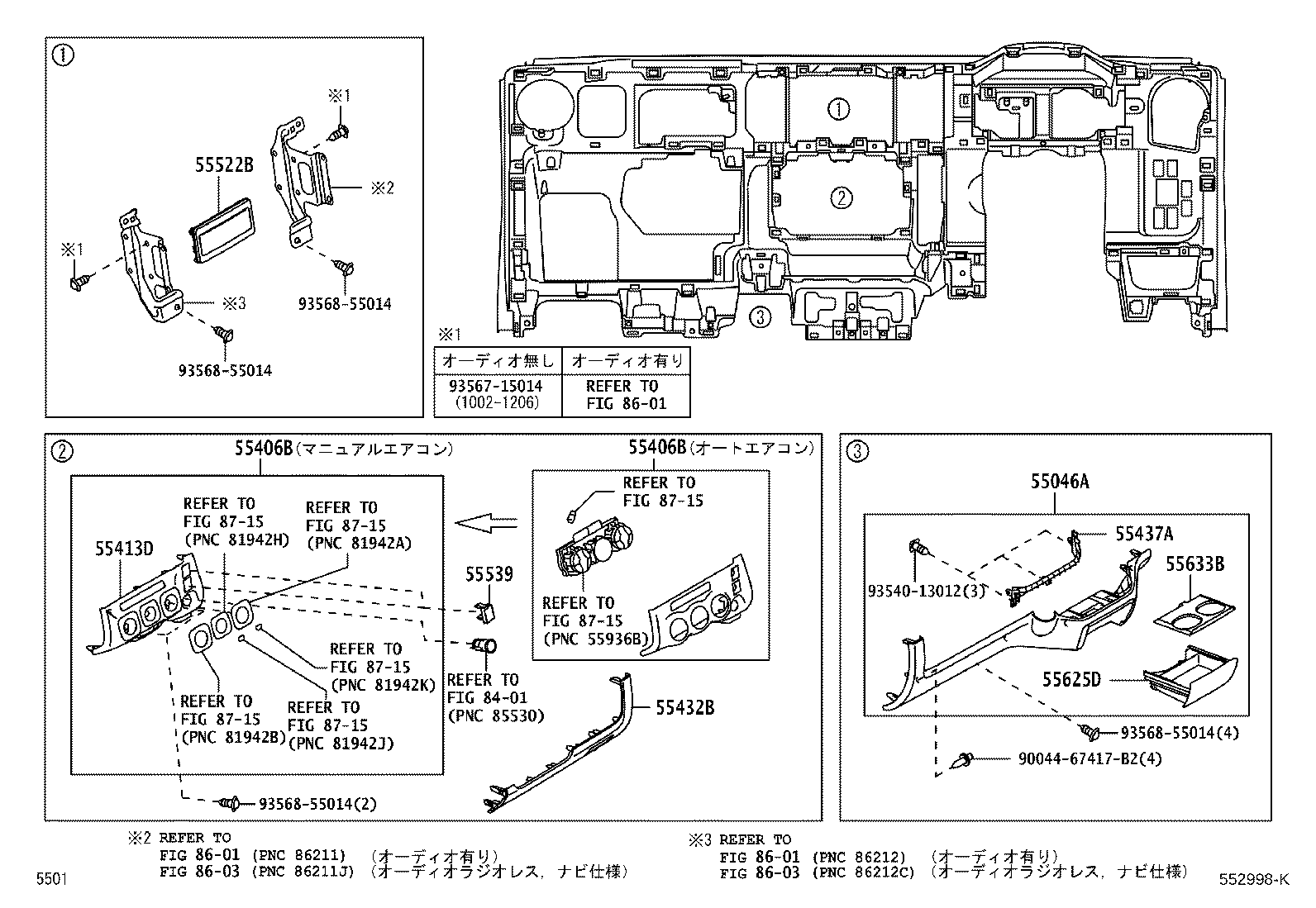

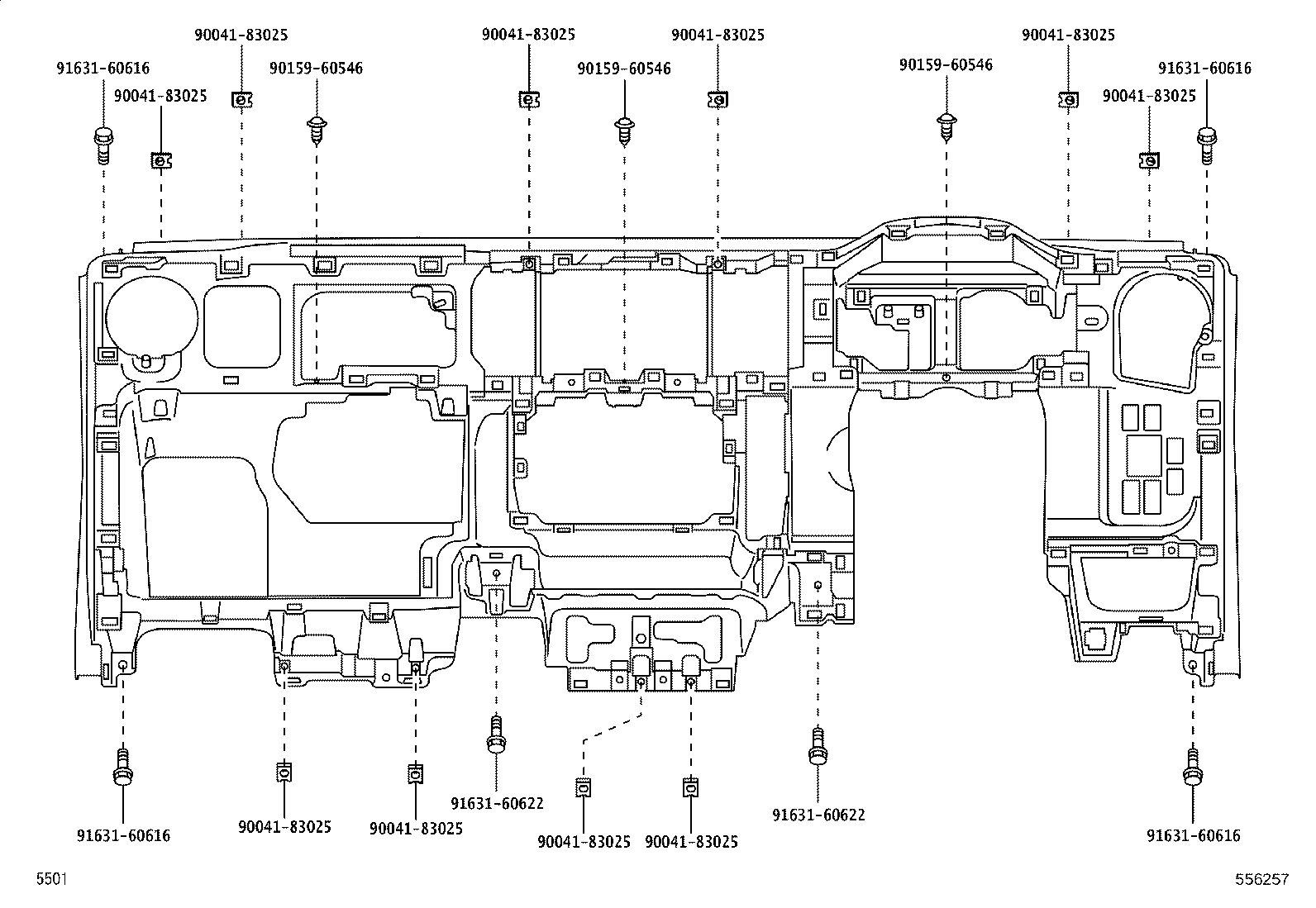

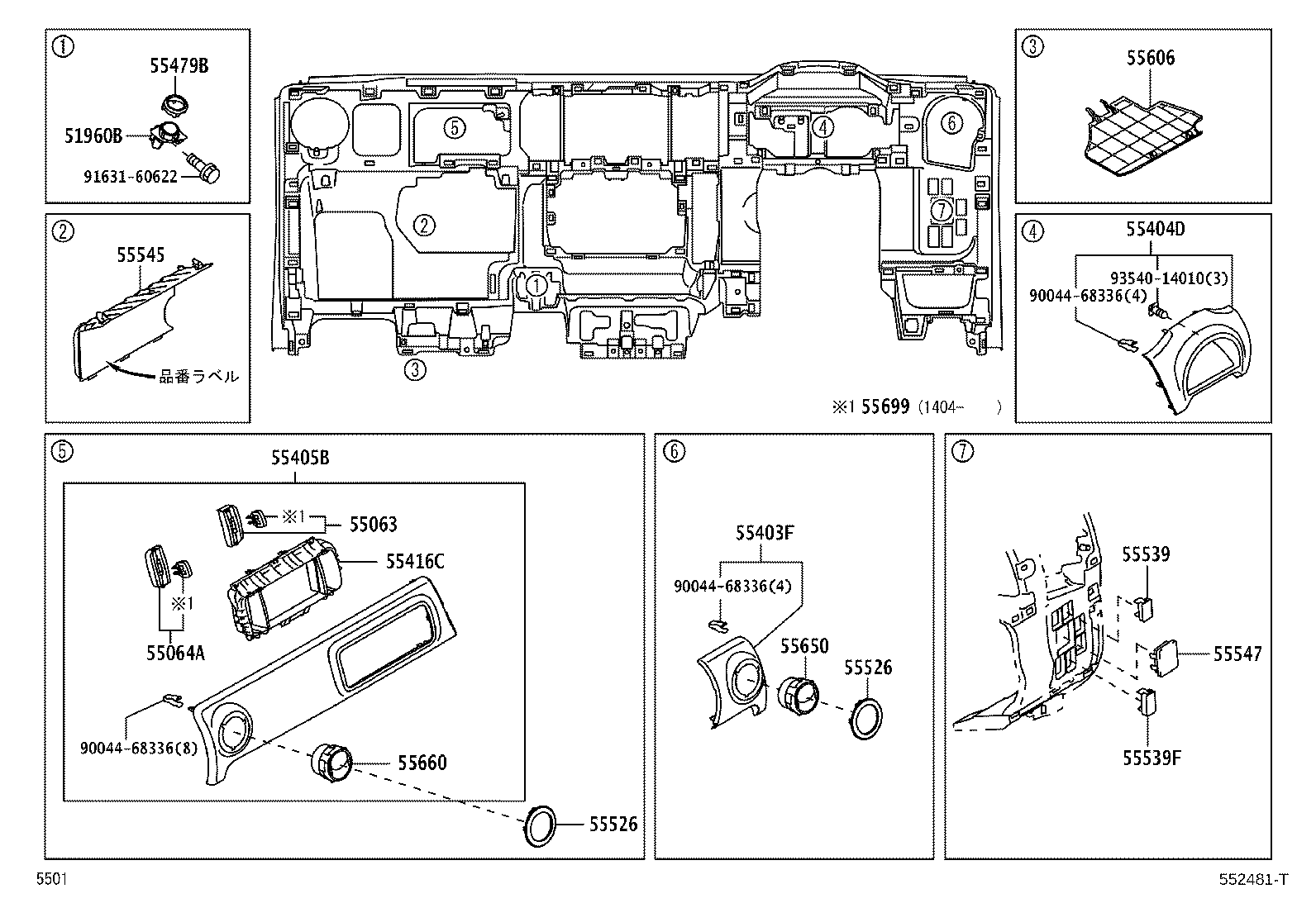

Instrument Panel & Glove Compartment
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51960B | Hook Assy, Front |
| 55046A | Panel Sub-assy, Instrument Panel Finish, Lower LH |
| 55063 | Register Sub-assy, Instrument, NO.3 |
| 55064A | Register Sub-assy, Instrument, NO.4 |
| 55301 | Panel Sub-assy, Instrument |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55394B | Bolt, Instrument Panel |
| 55403F | Panel Sub-assy, Instrument Panel Finish |
| 55404D | Panel Sub-assy, Instrument Cluster Finish |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55416C | Retainer, Instrument Cluster Finish Panel |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55437A | Retainer, Instrument Panel Finish Panel, NO.1 |
| 55453D | Pad, Instrument Panel Safety, NO.1 |
| 55454B | Pad, Instrument Panel Safety, NO.2 |
| 55479B | Cover, Instrument, Lower Center |
| 55522B | Cover, Radio Tuner Opening |
| 55526 | Cover, Instrument Panel Register Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55625D | Tray, Instrument Panel Cup Holder |
| 55633B | Support, Instrument Panel Cup Holder |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55699 | Knob, Instrument Panel Register Control |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 86269G | Grille, Speaker, RH |
| 86279B | Grille, Speaker, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
