Toyota Passo
2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan
Supported model
Data version 2016-10
Front Door Panel & Glass
46 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67001C | Grommet(FOR FRONT DOOR PANEL) |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |

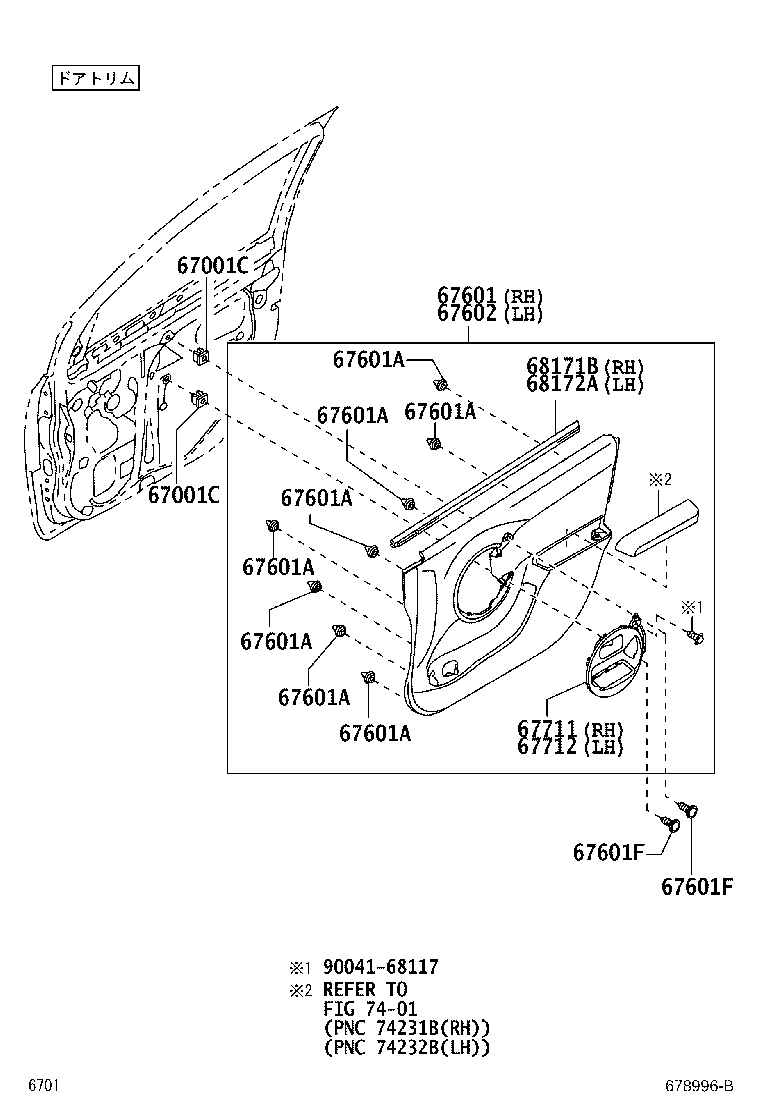

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601F | Screw(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67711 | Cover, Front Door Trim, RH |
| 67712 | Cover, Front Door Trim, LH |
| 67717 | Pad, Front Door Trim, Center RH |
| 67718 | Pad, Front Door Trim, Center LH |
| 67749 | Clip, Door Trim Moulding |
| 67772E | Cap, Front Door Trim Retainer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67861A | Retainer(FOR FRONT DOOR WEATHERSTRIP) |
| 67862 | Weatherstrip, Front Door, LH |

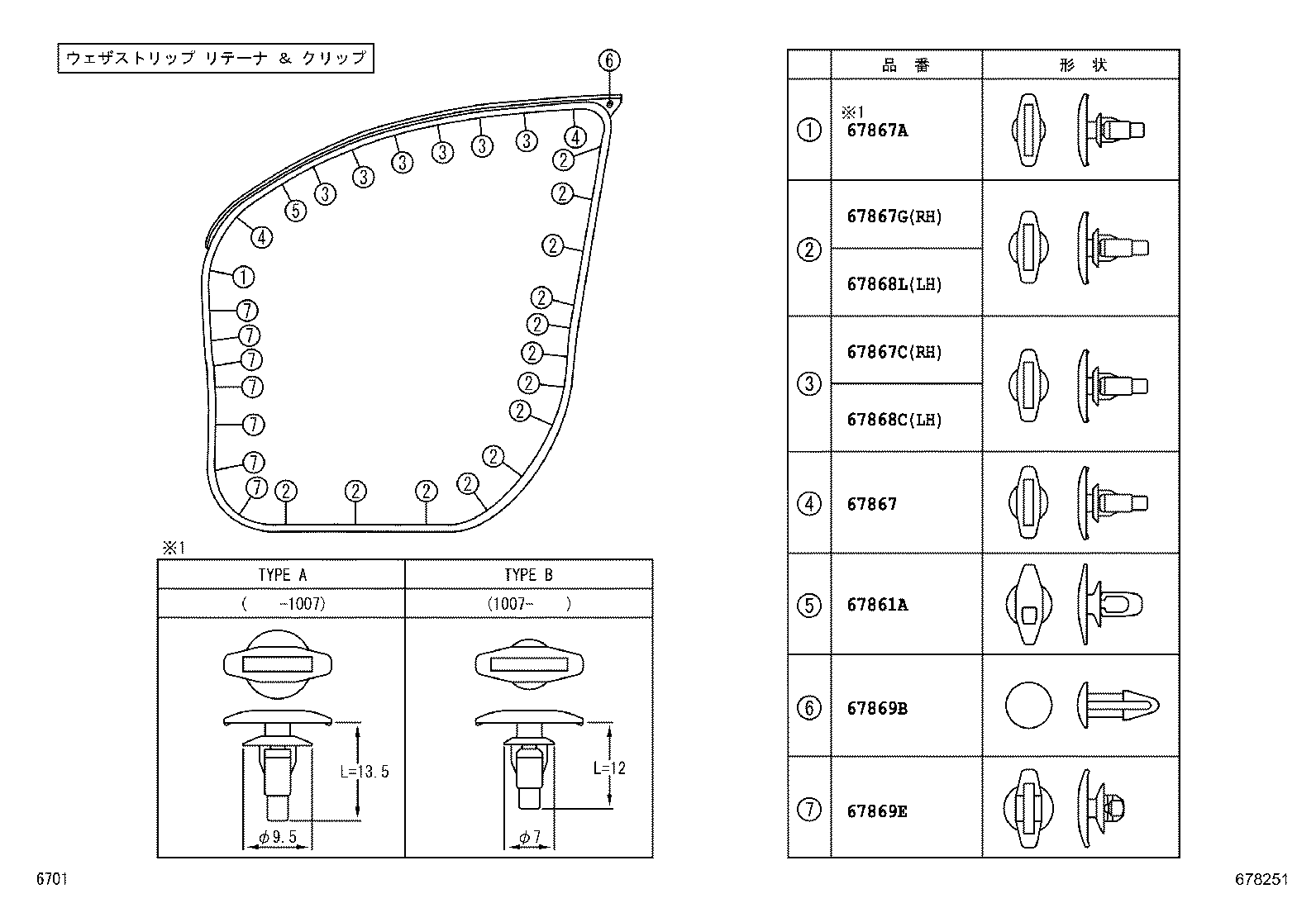

| 67867 | Clip, Door Weatherstrip |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67867G | Retainer, Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67868L | Retainer, Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67869E | Clip, Front Door Weatherstrip |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68147F | Stop, Front Door Glass, Upper |
| 68151C | Run, Front Door Glass, LH |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 75923B | Tape, Black Out, NO.2 RH |
| 75924B | Tape, Black Out, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
