Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

15 part groups · 3 illustrations

Illustrations

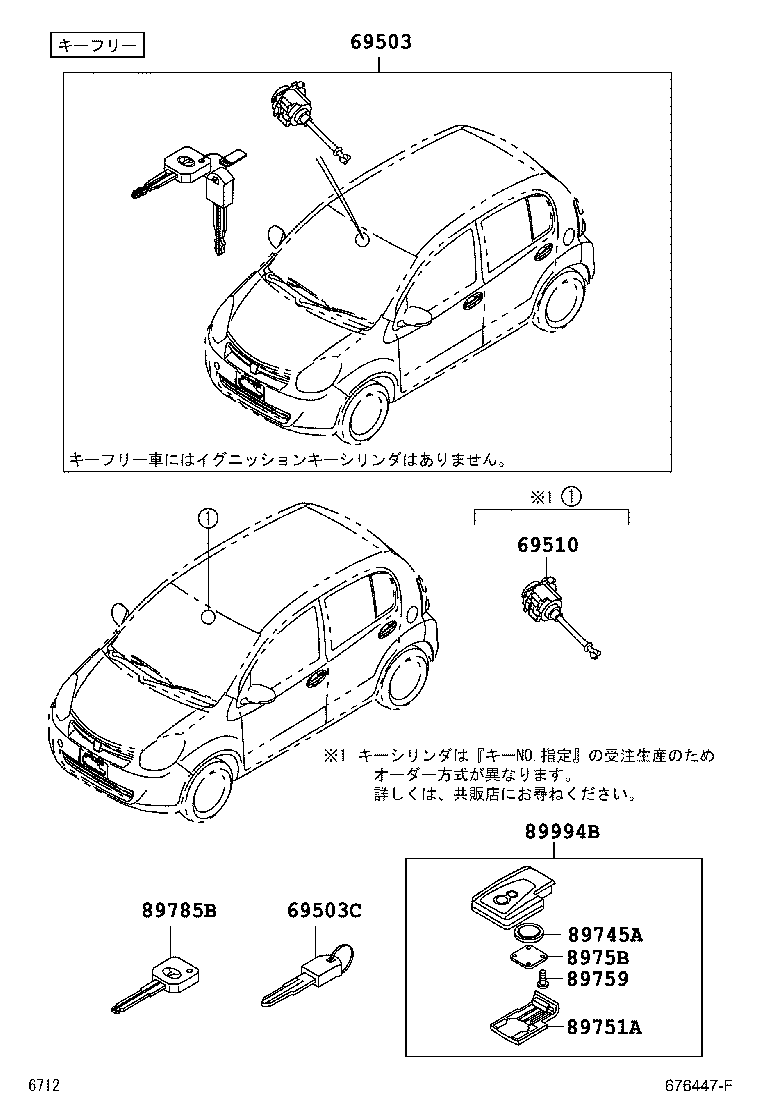

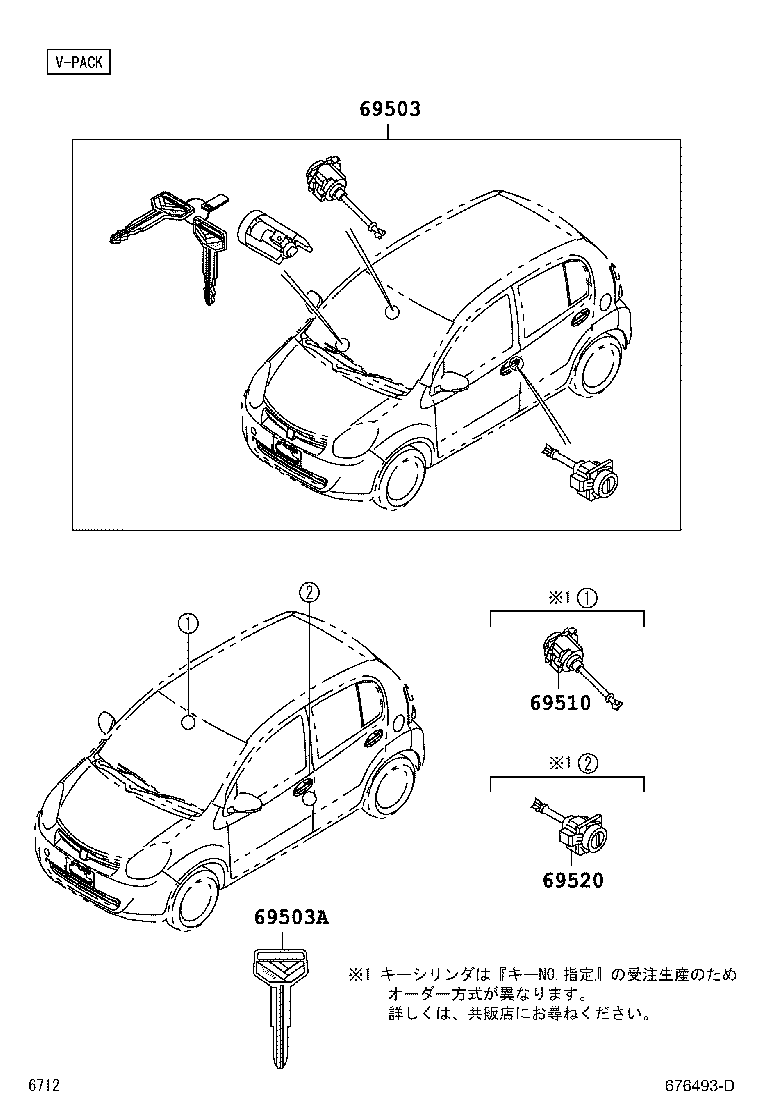

Figure 676446I 676446I 2010-02 → — Figure 676447F 676447F 2010-02 → — Figure 676493D 676493D 2010-02 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69503A Key, Blank
69503C Key, Sub
69510 Cylinder Assy, Front Door Lock, RH
69520 Cylinder Assy, Front Door Lock, LH
69570 Cylinder Assy, Ignition Switch Lock
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89759 Screw, Door Control Transmitter
8975B Cover, Transmitter Battery Housing
89785B Transmitter, Transponder Key Master
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
