Toyota Passo
2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan
Supported model
Data version 2016-10

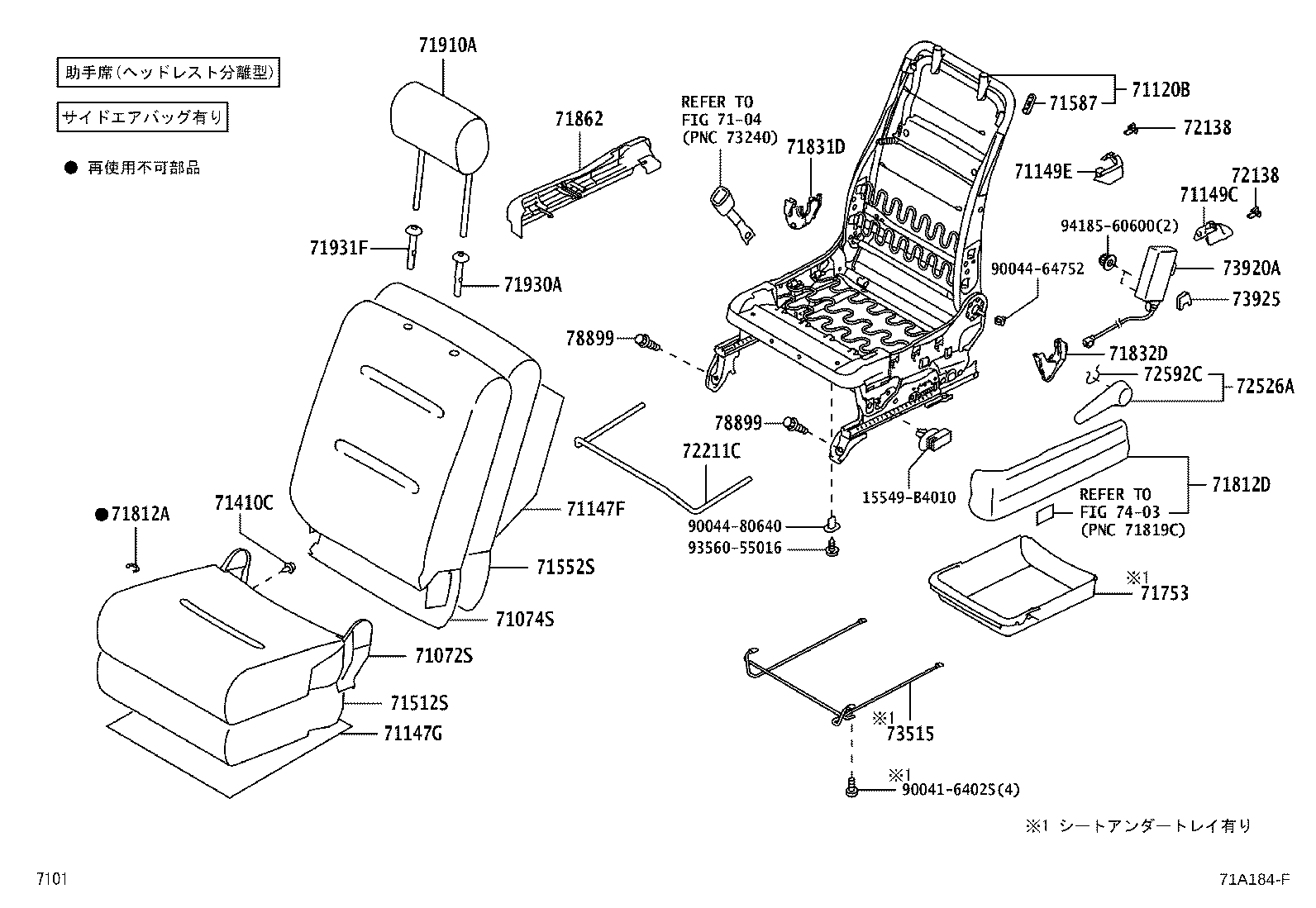

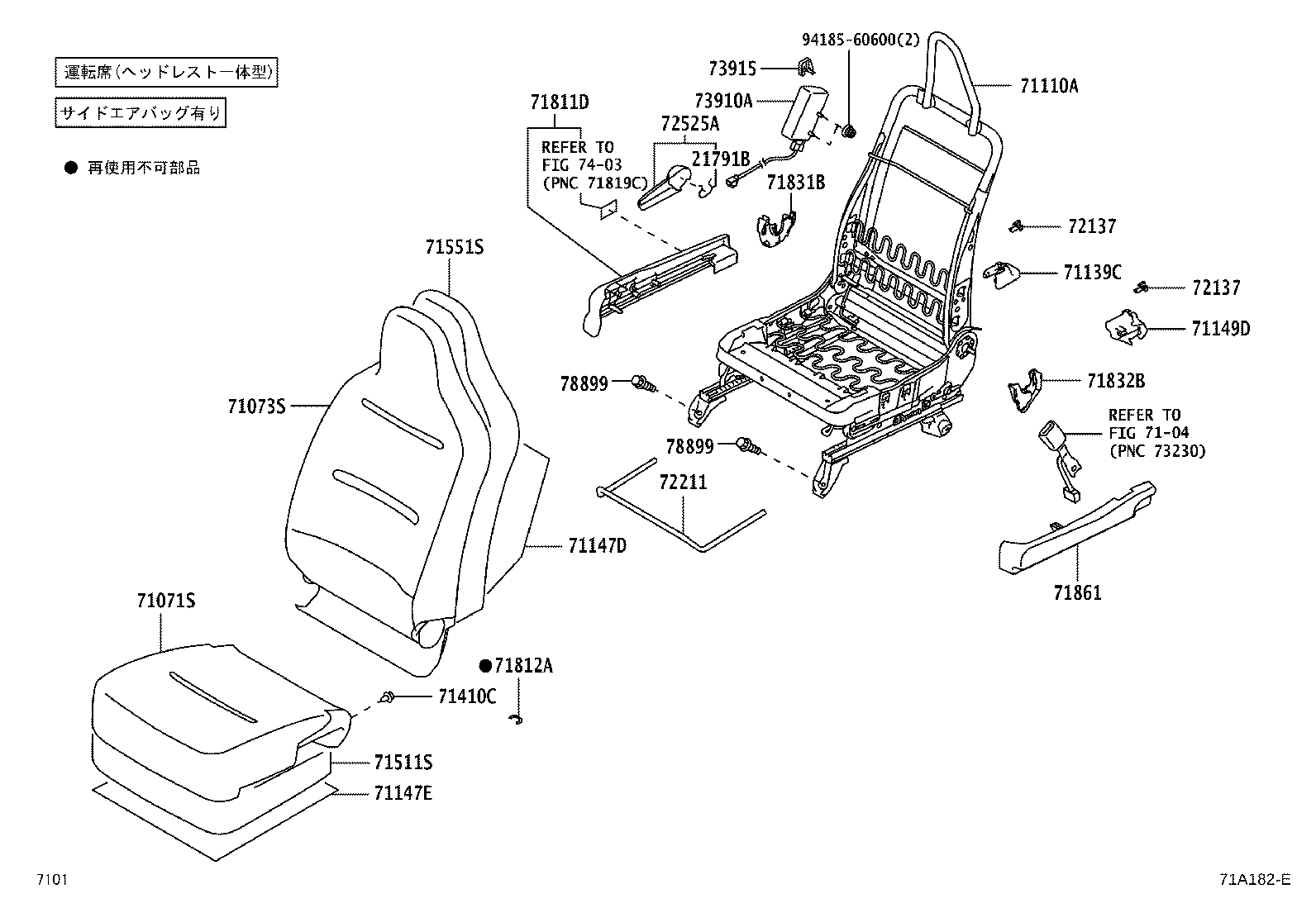

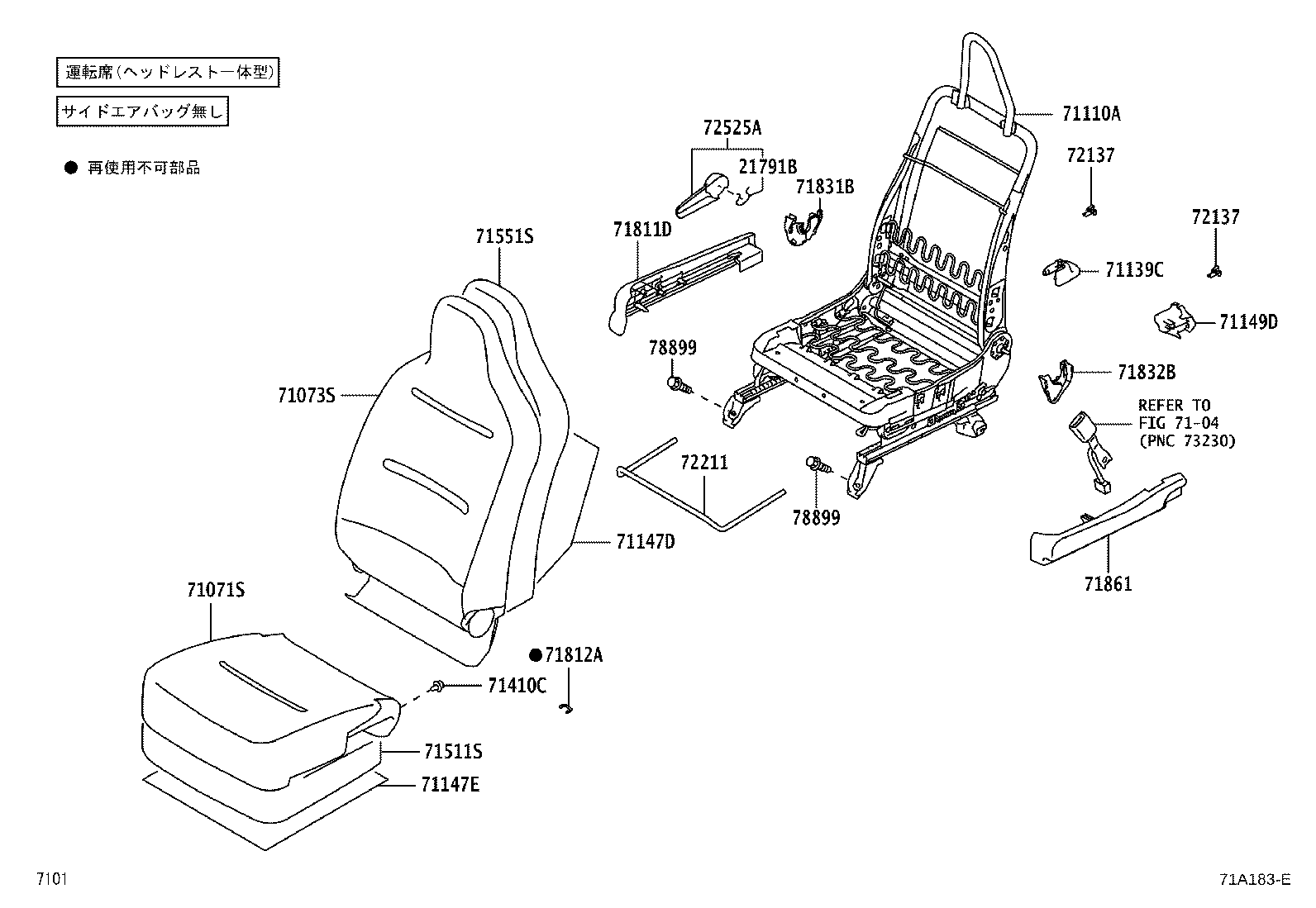

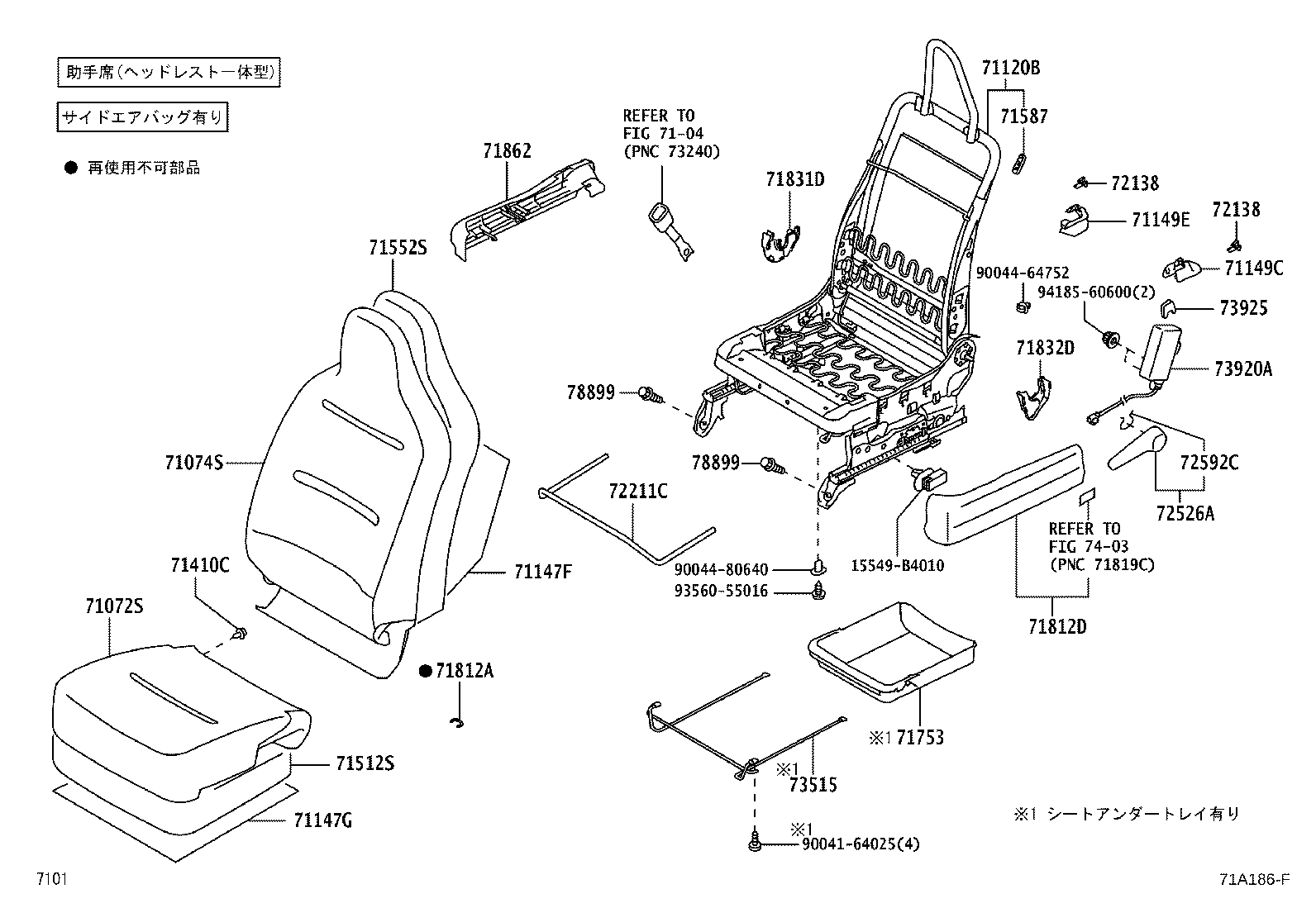

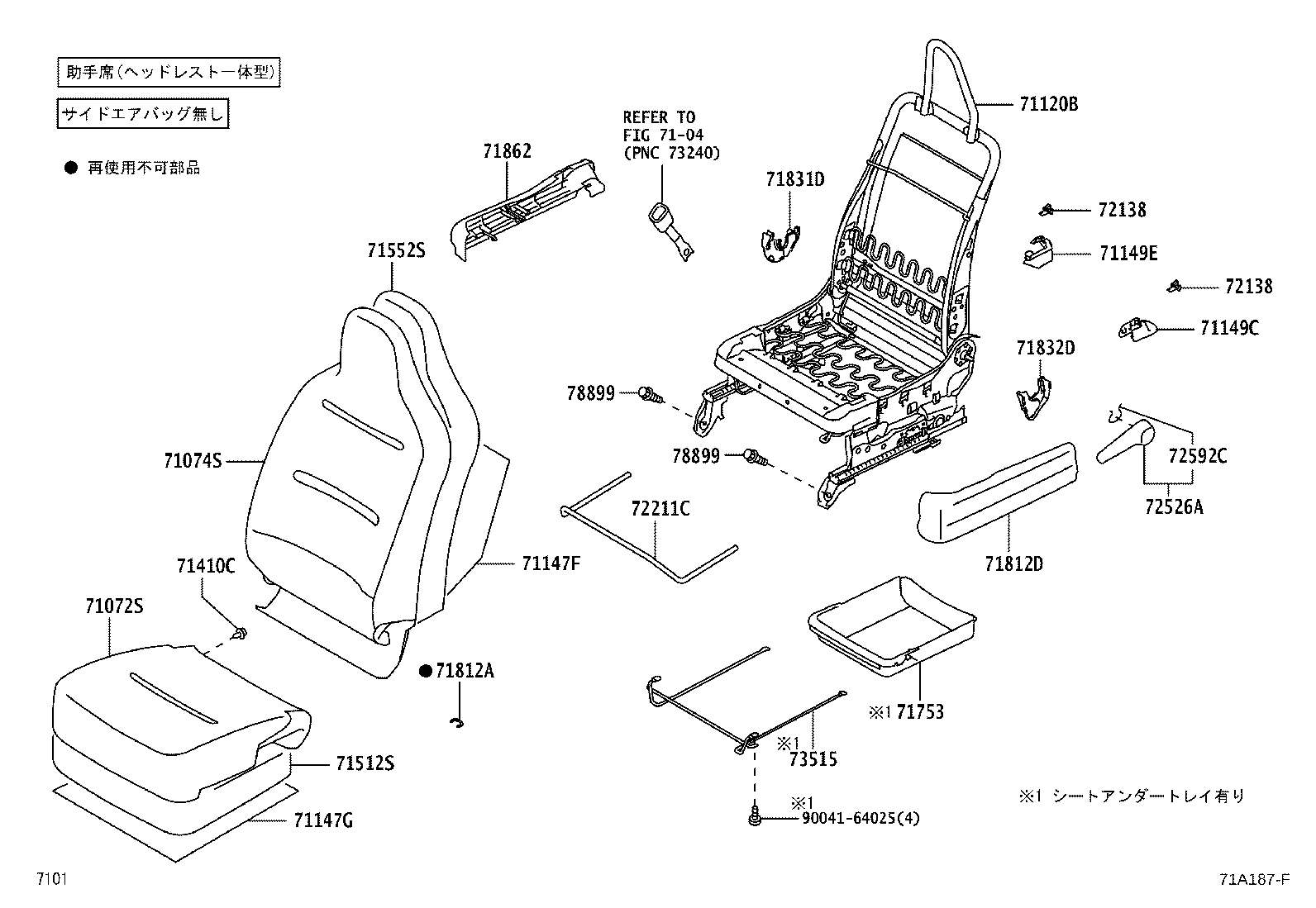

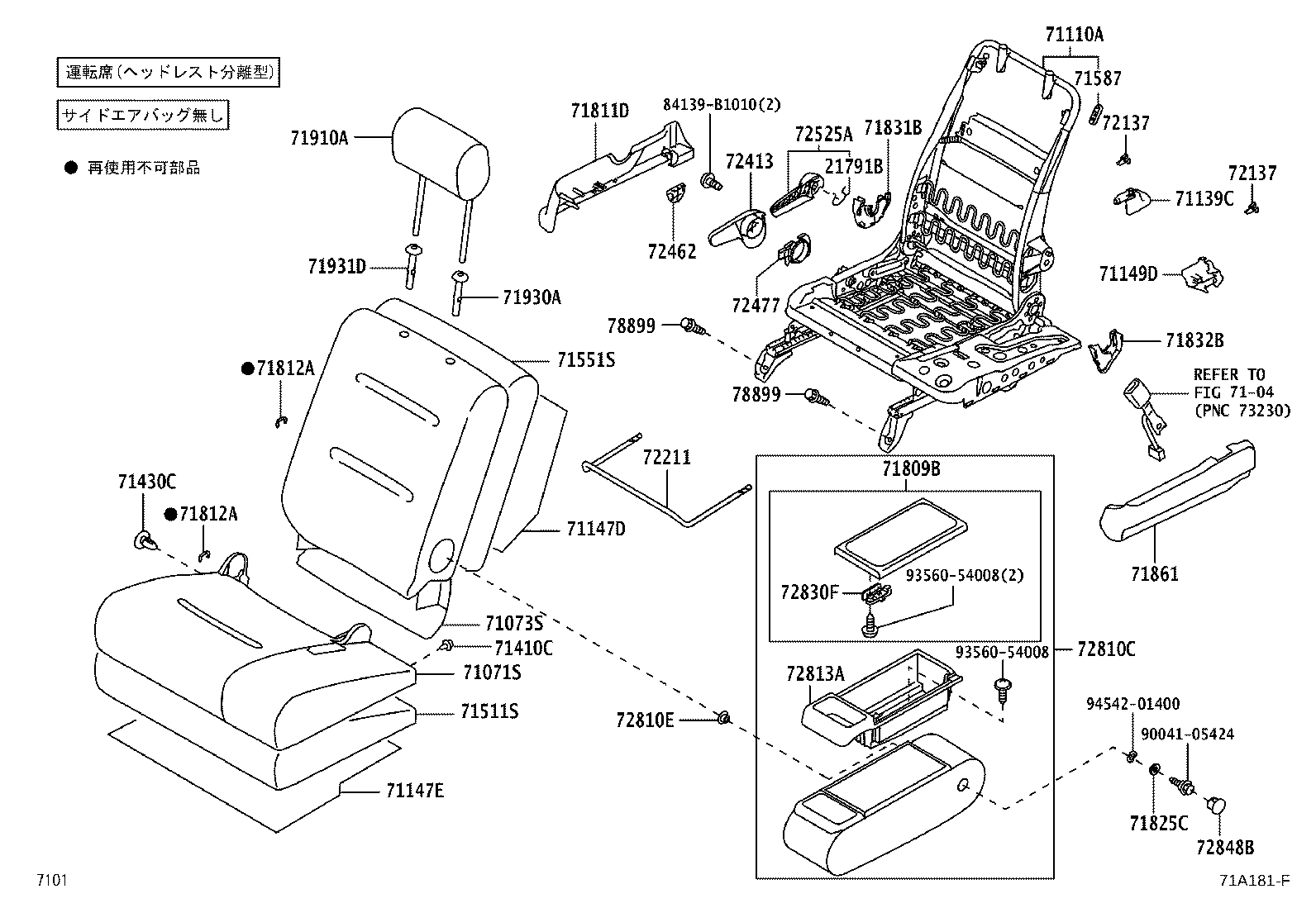

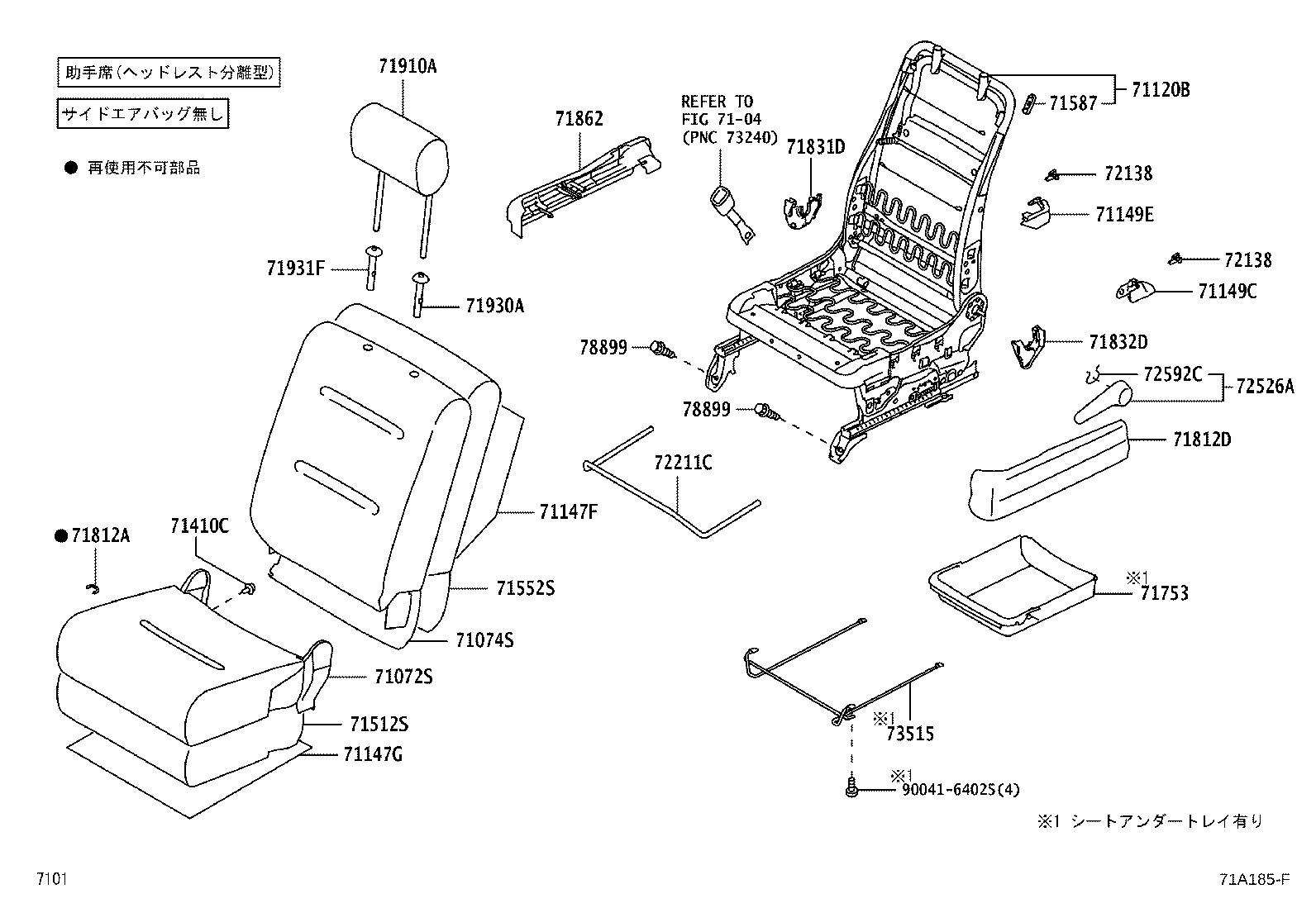

Front Seat & Seat Track
59 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 21791B | Ring, Snap |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71110A | Frame Assy, Front Seat W/Adjuster, RH |
| 71120B | Frame Assy, Front Seat W/Adjuster, LH |
| 71139C | Cover, Front Seat Leg, RH |
| 71147D | Silencer, Seat Spring, RH(FOR SEATBACK) |
| 71147E | Silencer, Seat Spring, RH(FOR SEAT CUSHION) |
| 71147F | Silencer, Seat Spring, LH(FOR SEATBACK) |
| 71147G | Silencer, Seat Spring, LH(FOR SEAT CUSHION) |
| 71149C | Cover, Front Seat Leg, LH (FOR LH SEAT) |
| 71149D | Cover, Front Seat Leg, Inner (FOR RH SEAT) |
| 71149E | Cover, Front Seat Leg, Inner (FOR LH SEAT) |
| 71410C | Clip(FOR FRONT SEAT CUSHION) |
| 71430C | Clip |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71753 | Tray, Front Seat Under |
| 71809B | Cover Sub-assy, Front Seat Armrest Holder |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812A | Ring, Hog, Small (FOR FRONT SEAT) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71825C | Plate |
| 71831B | Cover, Front Seat Hinge, RH |
| 71831D | Cover, Front Seat Hinge, RH |
| 71832B | Cover, Front Seat Hinge, LH |
| 71832D | Cover, Front Seat Hinge, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71910A | Headrest Assy, Front Seat |
| 71930A | Support Assy, Front Seat Headrest |
| 71931D | Support, Front Seat Headrest, RH |
| 71931F | Support, Front Seat Headrest, LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72413 | Lever, Vertical Adjuster Lock |
| 72462 | Cover, Vertical Adjuster RH |
| 72477 | Spacer, Vertical Adjuster |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72592C | Ring, Shaft Snap |
| 72810C | Armrest Assy, Front Seat, Center |
| 72810E | Bush, Front Seat Armrest, NO.1 |
| 72813A | Box, Front Seat Center Armrest |
| 72830F | Lock Sub-assy, Front Seat Armrest |
| 72848B | Cap, Seat Armrest, NO.1 |
| 73515 | Rail, Front Seat Under Tray, NO.1 |
| 73910A | Airbag Assy, Front Seat, RH |
| 73915 | Cover, Seat Airbag NO.1, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 73925 | Cover, Seat Airbag NO.1, LH |
| 78899 | Bolt, Front Seat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
