Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

10 part groups · 3 illustrations

Illustrations

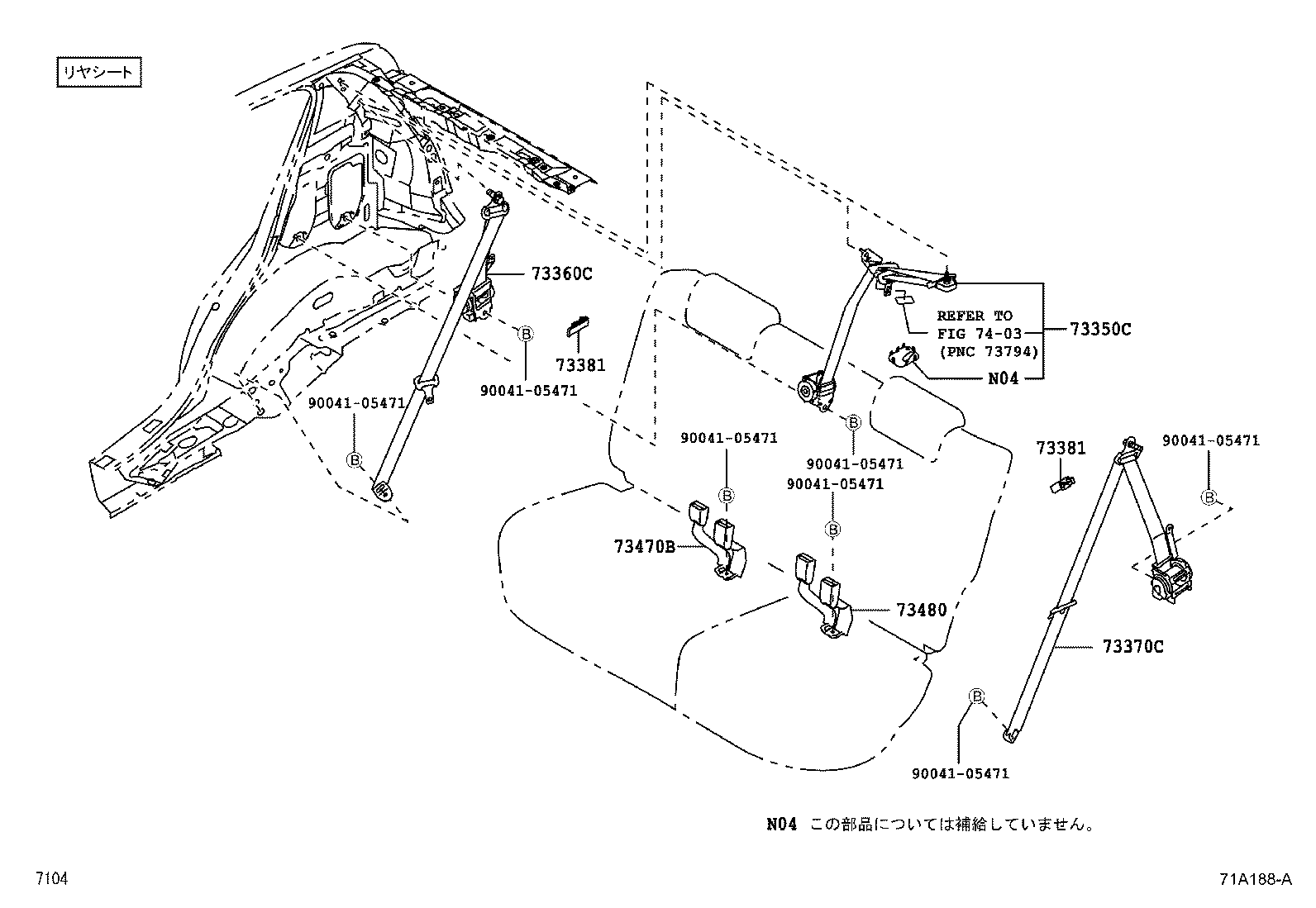

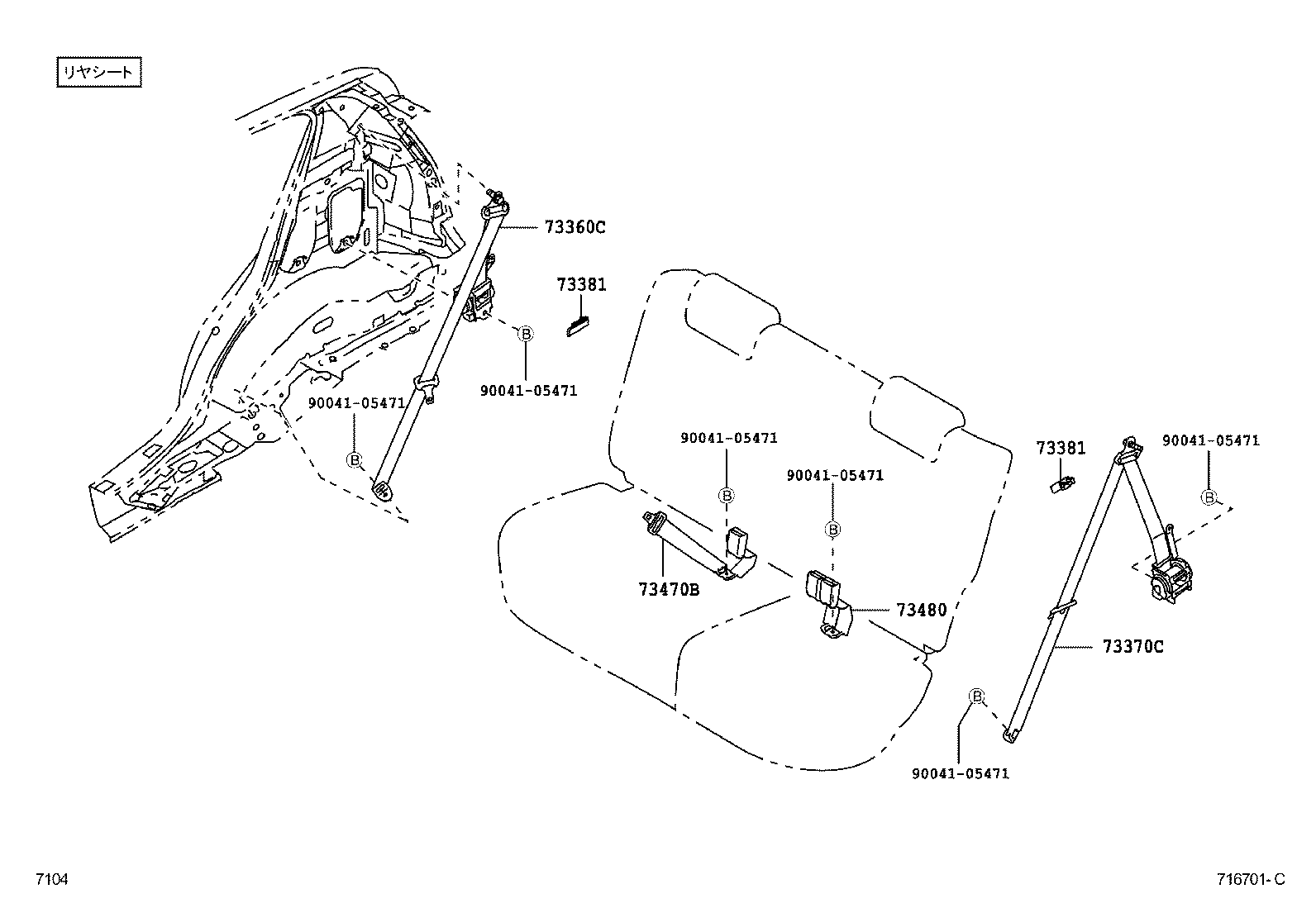

Figure 716728B 716728B 2010-02 → — Figure 716701C 716701C 2010-02 → 2012-06 Figure 71A188A 71A188A 2012-06 → —

Part groups

PNCDescription
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73381 Holder, Rear Seat Belt
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
