Toyota Passo
2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan
Supported model
Data version 2016-10

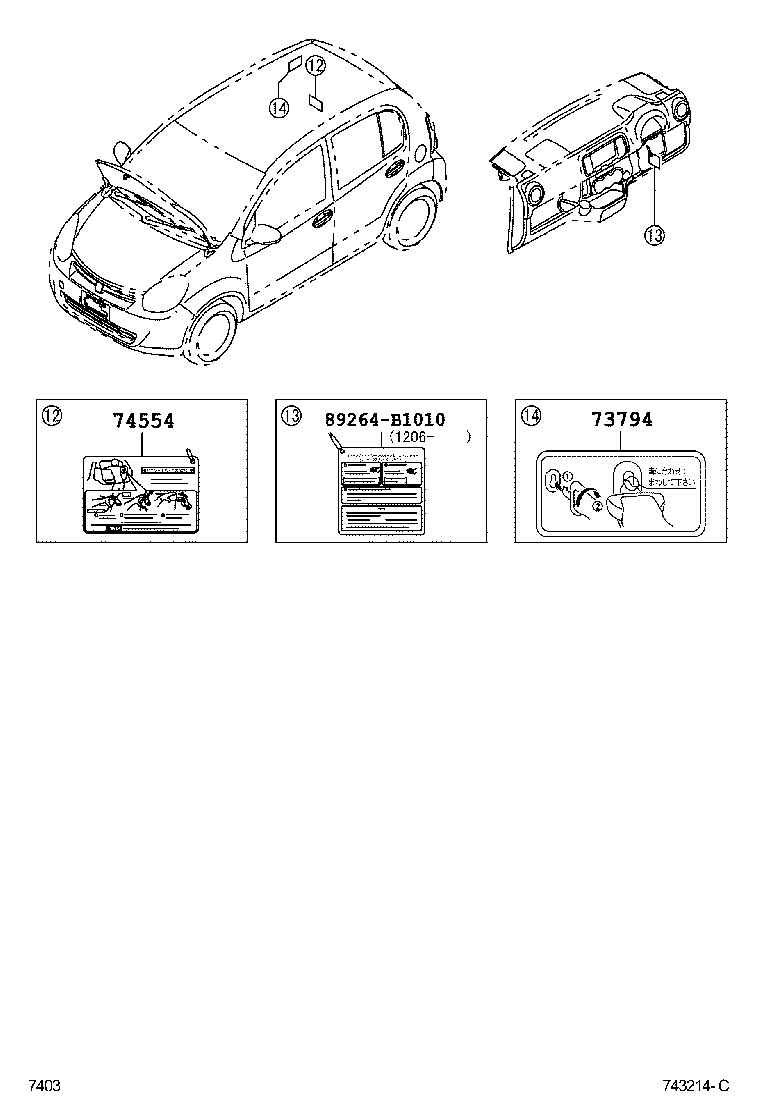

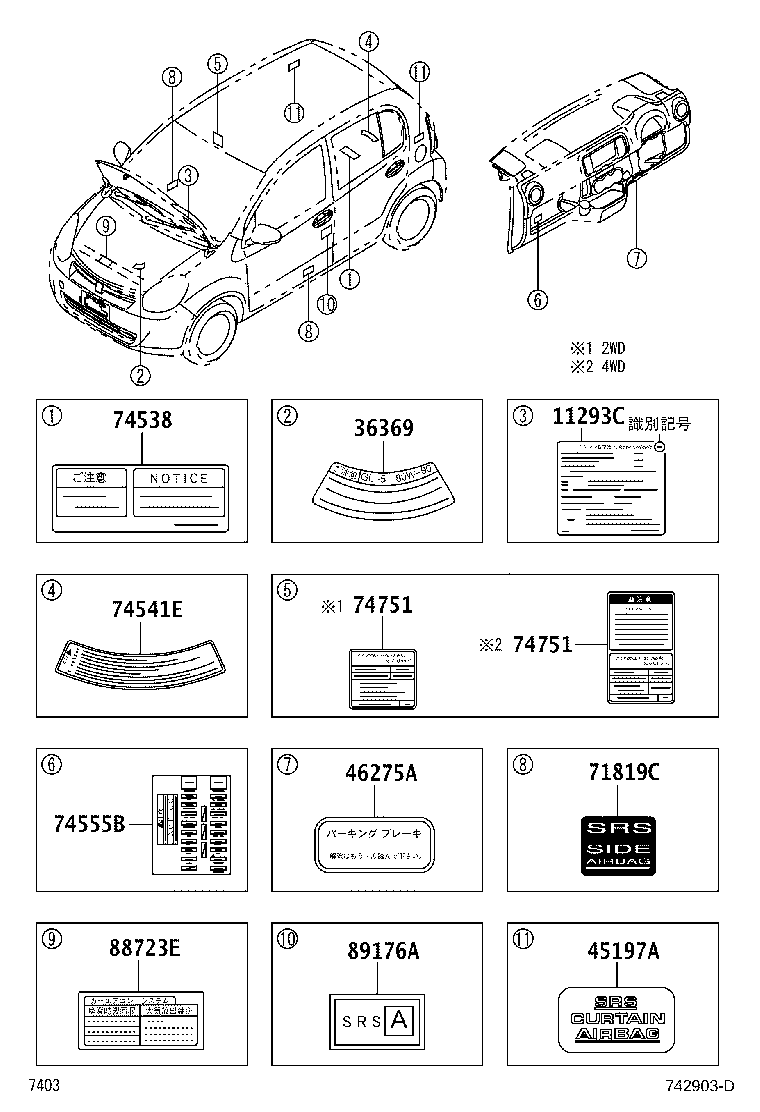

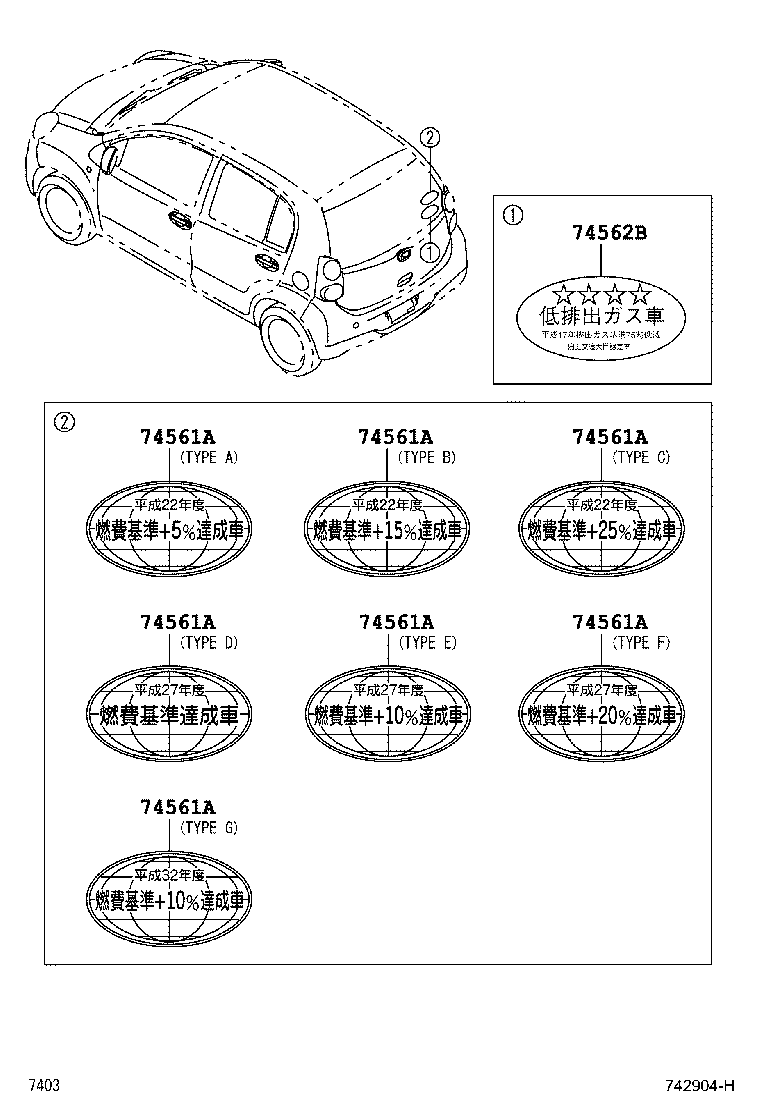

Caution Plate (EXTERIOR & INTERIOR)
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11293C | Label, Tune-up Specification Information |
| 16793E | Label, Cooling Fan Caution |
| 36369 | Label, Transfer Information |
| 45197A | Label, Airbag Caution |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 71819C | Label, Side Airbag Name |
| 73794 | Label, Rear Seat Belt Notice |
| 74538 | Plate, Jack Carrier Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74554 | Plate, Seatback Stopper Caution, LH |
| 74555B | Plate, Fuse Block Caution |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74751 | Label, Tire Pressure Information |
| 88723E | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
