Fuel Tank & Tube
39 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 23210A | Pump Assy, Fuel W/Motor & Bracket |
| 23217D | Filter, Fuel Pump |
| 23221 | Pump, Fuel |
| 23401B | Bolt |

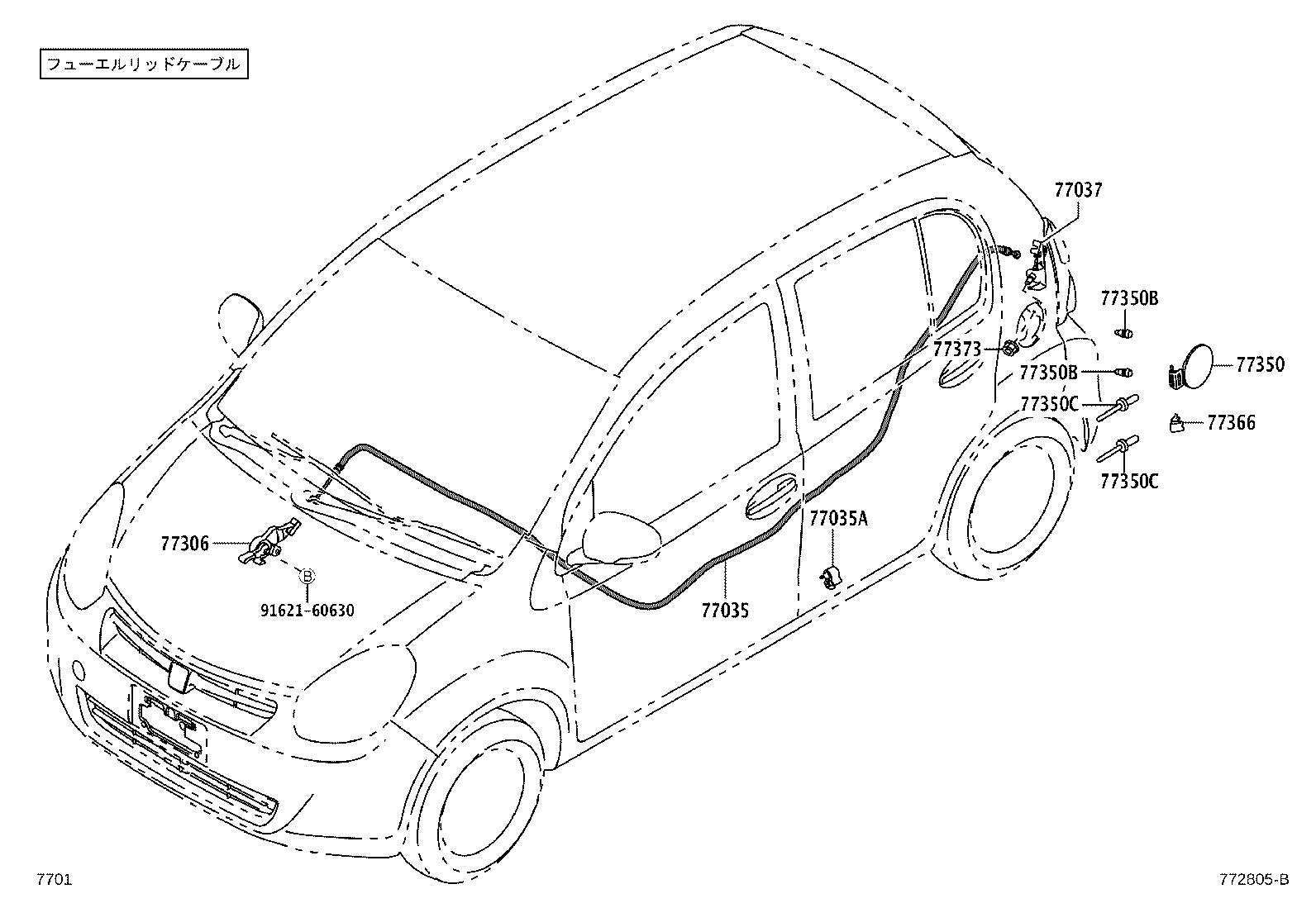

| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |

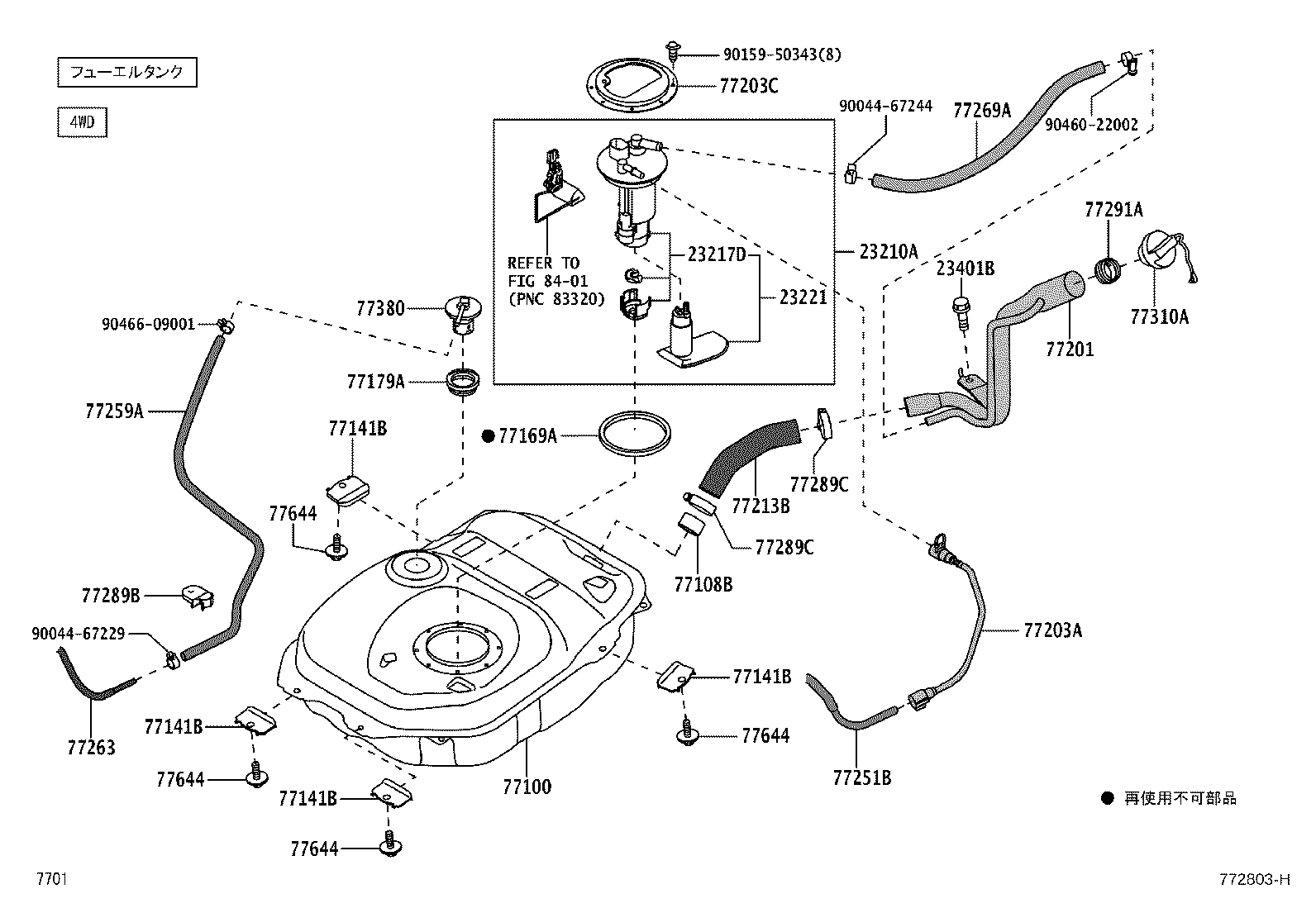

| 77100 | Tank Assy, Fuel |
| 77108B | Valve Sub-assy, Fuel Tank Filler Check |
| 77141B | Reinforcement, Fuel Tank Flange, NO.1 |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77203C | Bracket, Fuel Pump |
| 77213B | Hose, Fuel Tank TO Filler Pipe |

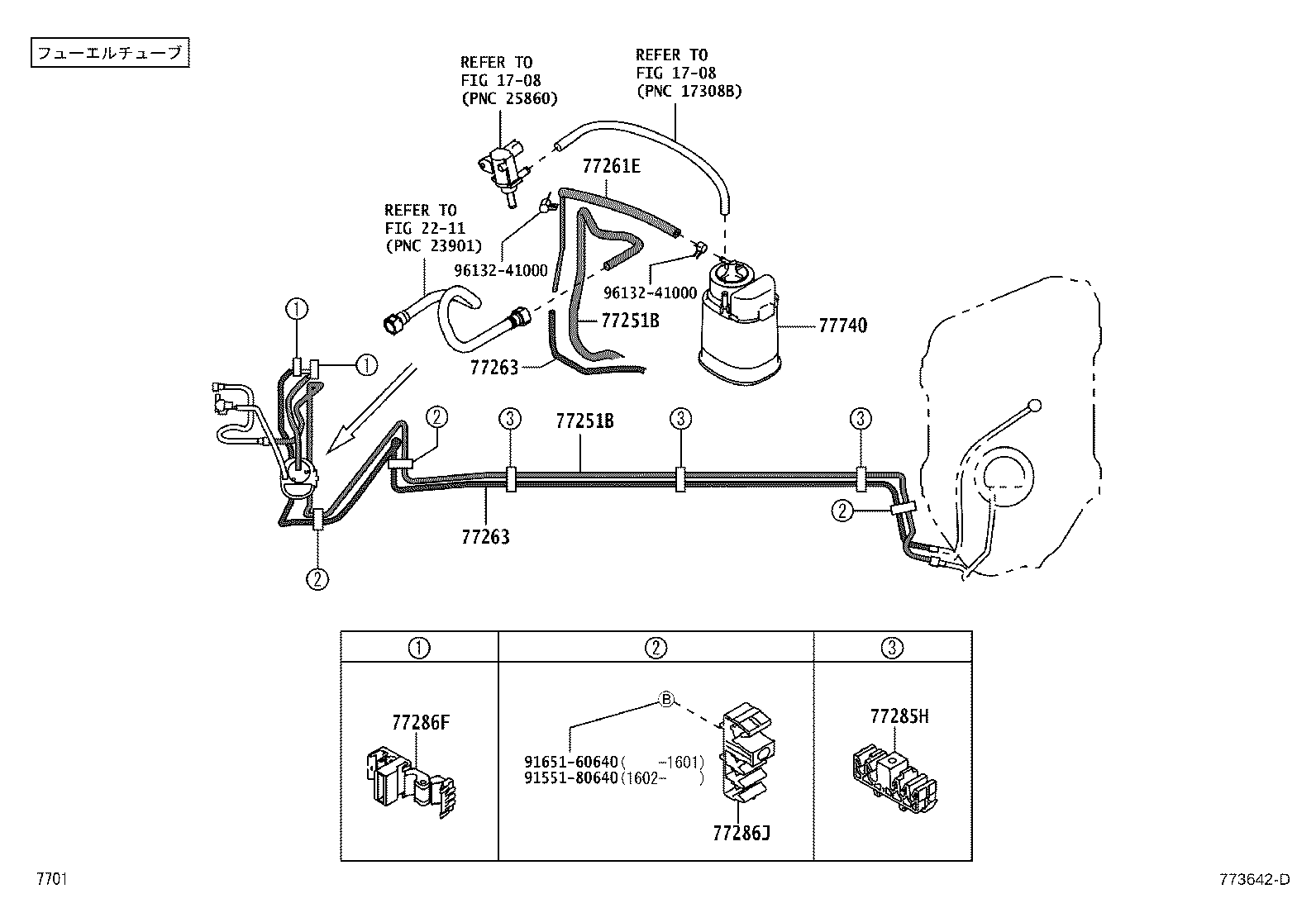

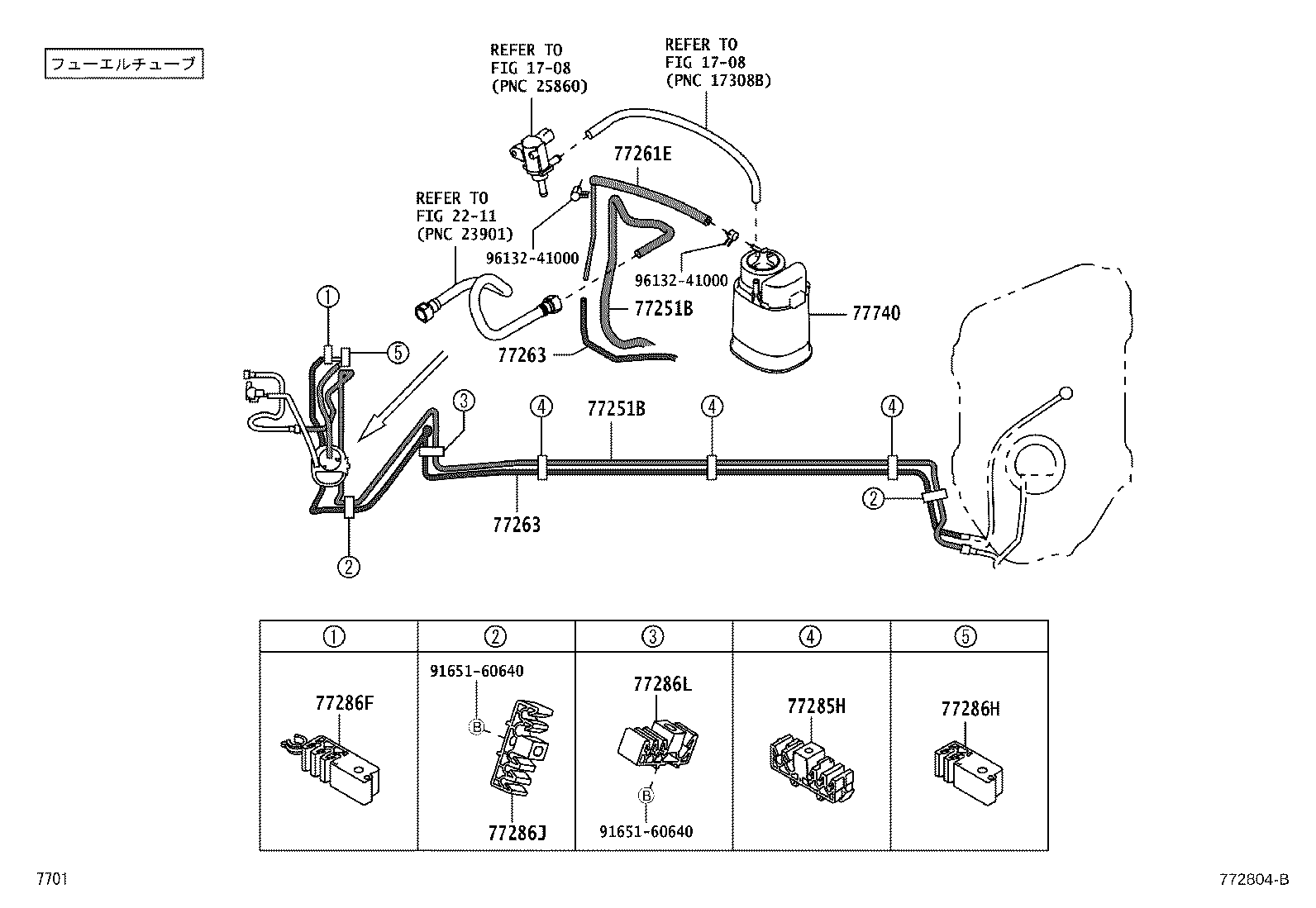

| 77251B | Tube, Fuel Main |
| 77259A | Hose, Fuel(FOR BREATHER TUBE) |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77263 | Tube, Fuel Tank TO Canister, NO.3 |
| 77269A | Hose, Fuel Tank Breather |
| 77285H | Clamp, Fuel Tube, NO.1 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286L | Clamp, Fuel Tube, NO.5 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77289C | Clamp, Fuel Tube, NO.4 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77350B | Cushion(FOR FUEL FILLER OPENING LID) |
| 77350C | Rivet |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77373 | Nut, Fuel Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77644 | Bolt, Fuel Tank |
| 77740 | Canister Assy, Charcoal |
