Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

18 part groups · 8 illustrations

Illustrations

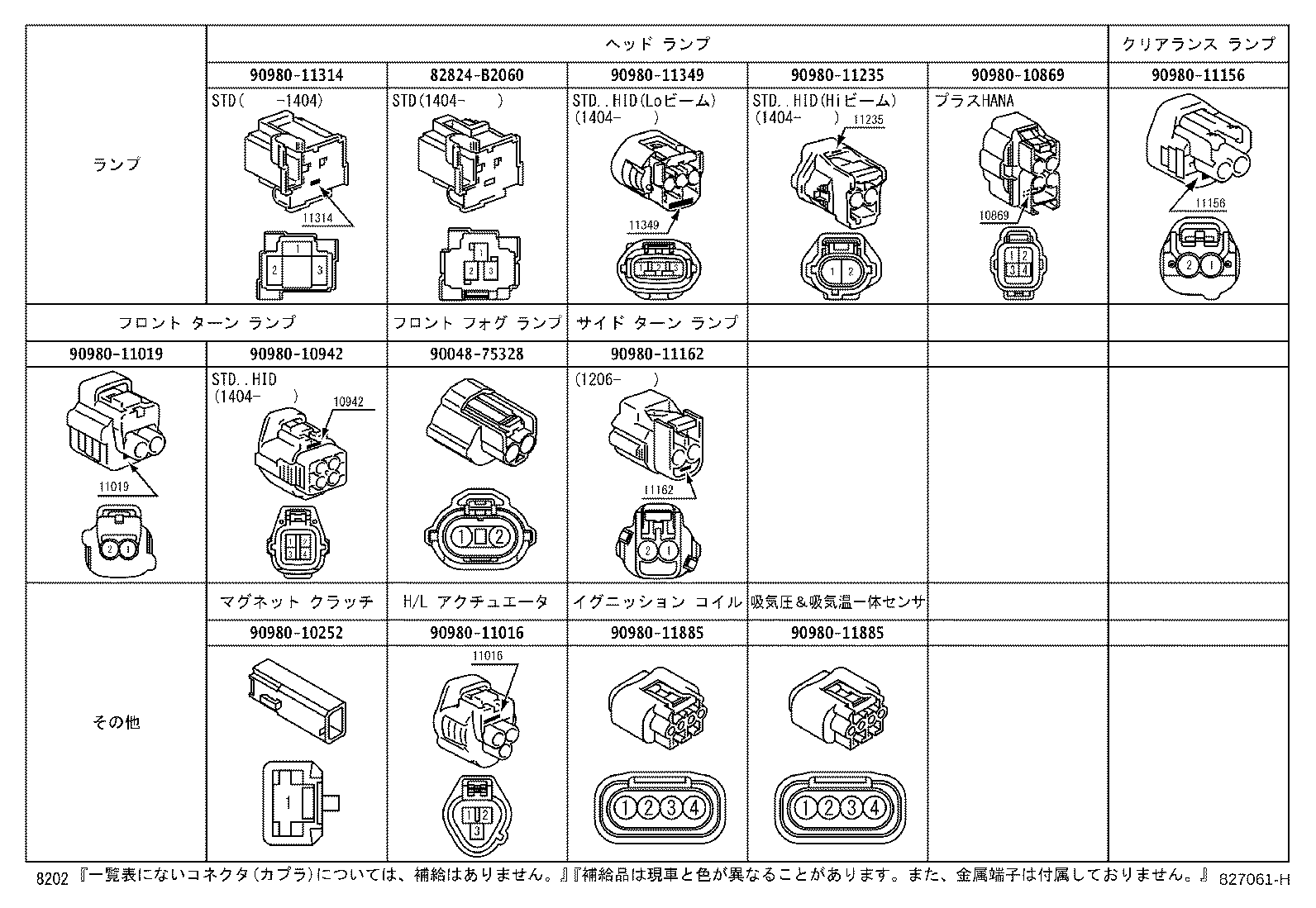

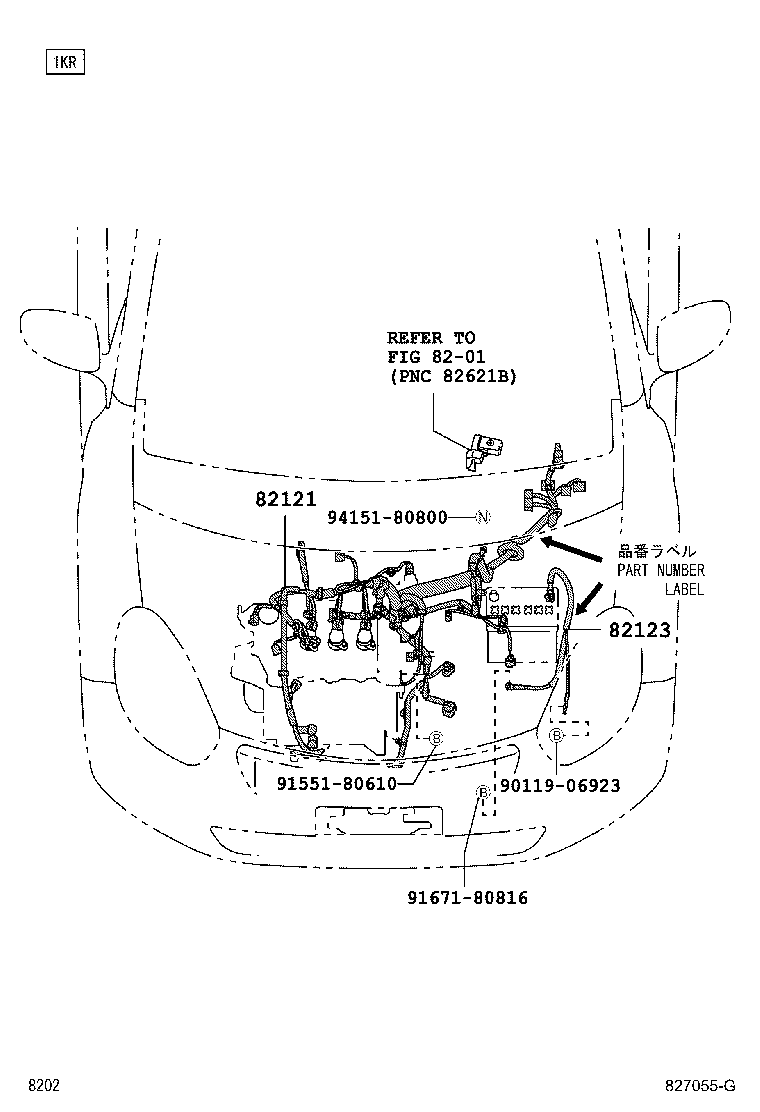

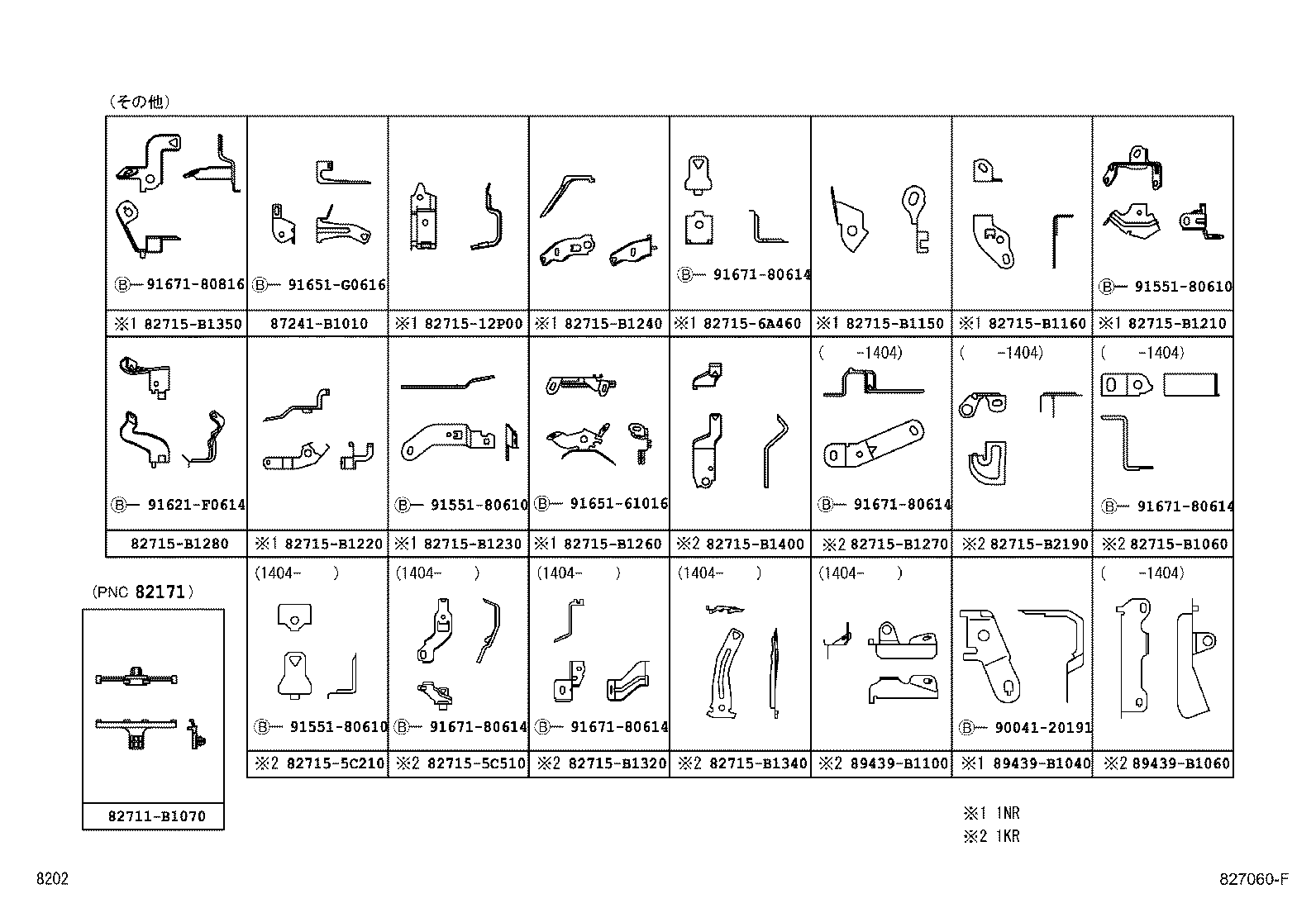

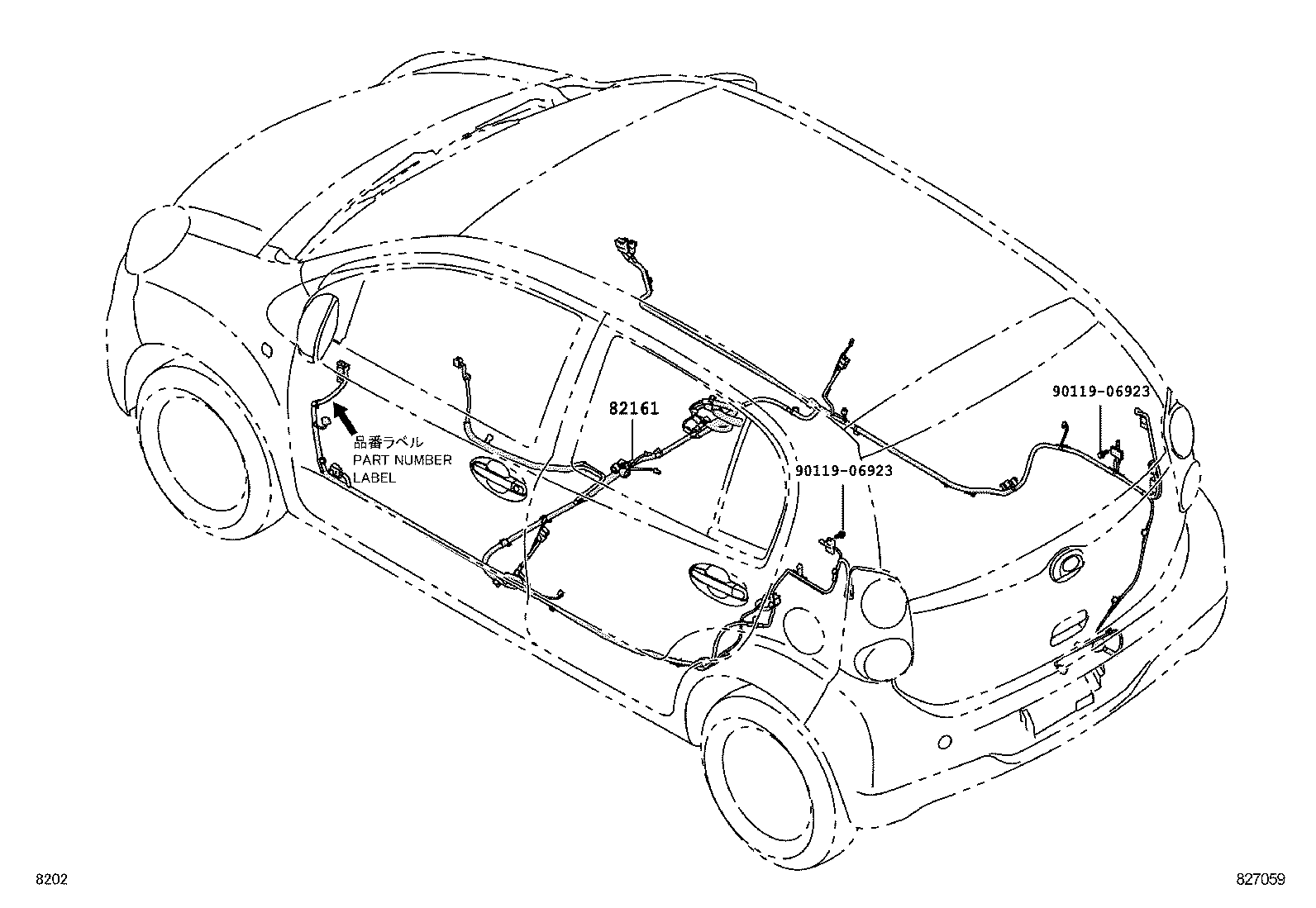

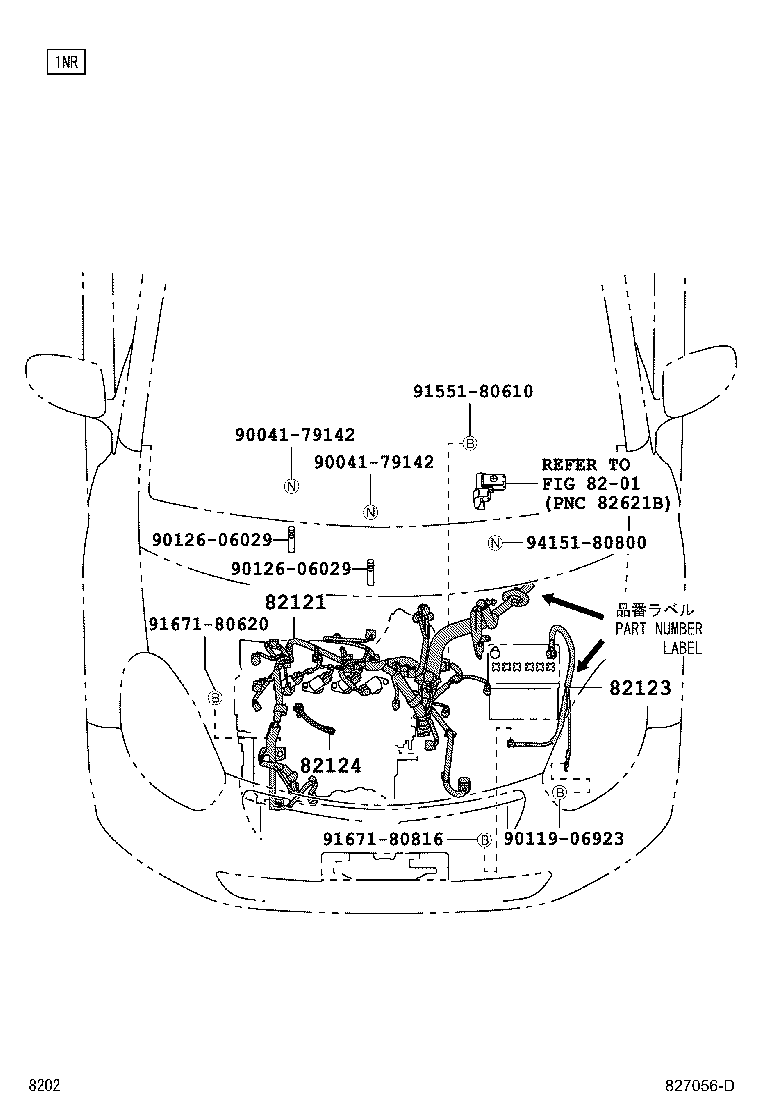

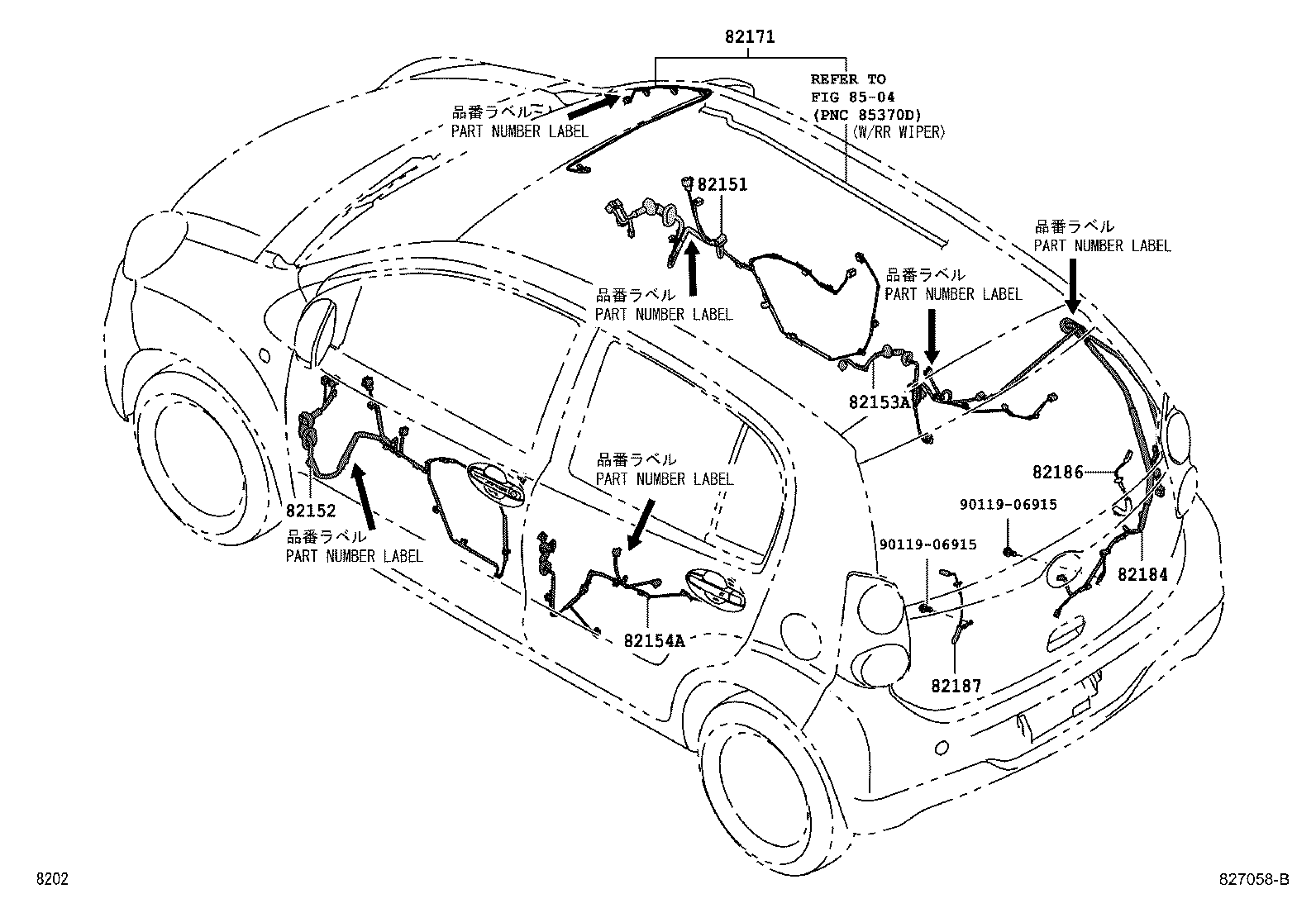

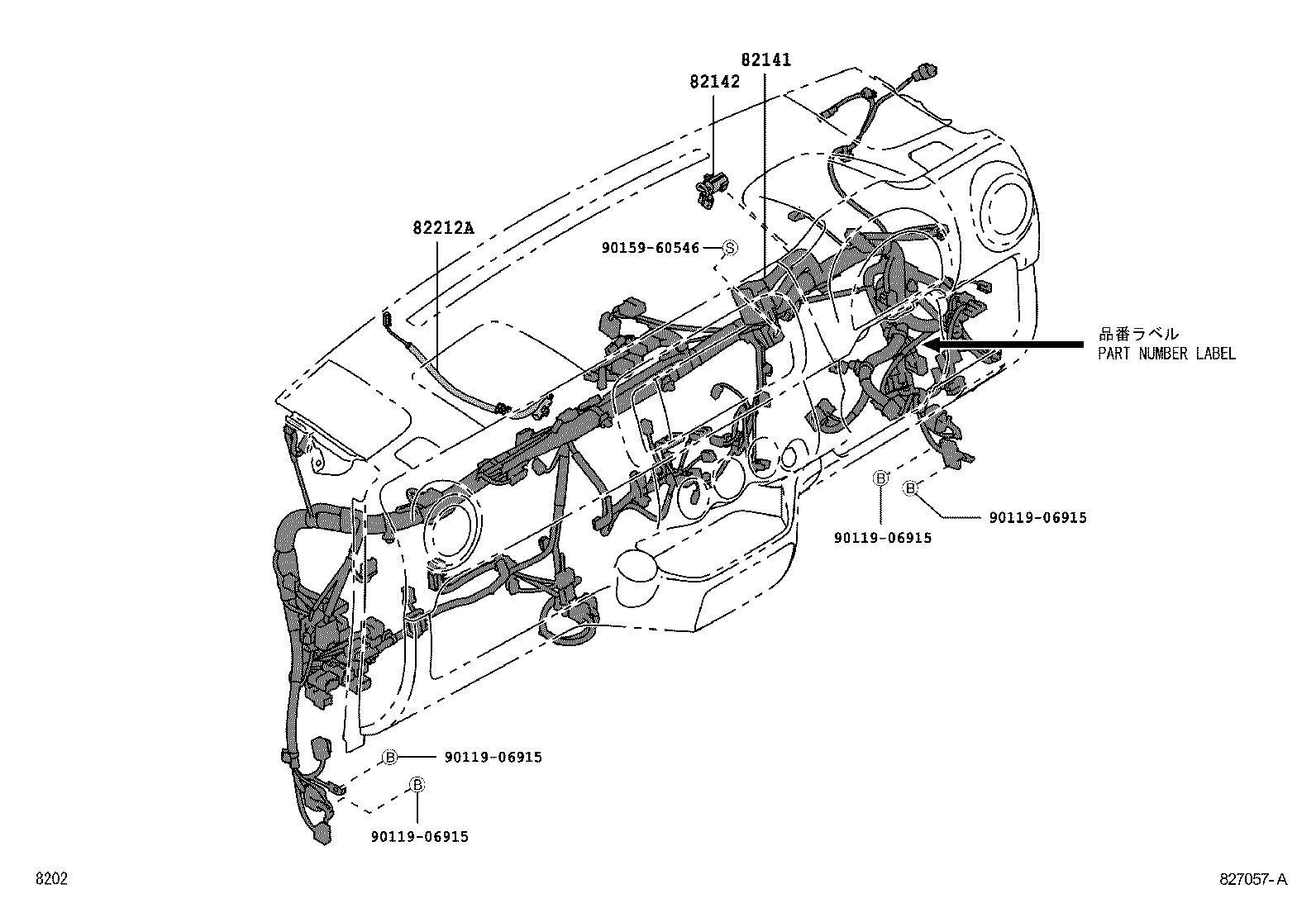

Figure 827054F 827054F 2010-02 → — Figure 827055G 827055G 2010-02 → — Figure 827056D 827056D 2010-02 → — Figure 827057A 827057A 2010-02 → — Figure 827058B 827058B 2010-02 → — Figure 827059 827059 2010-02 → — Figure 827060F 827060F 2010-02 → — Figure 827061H 827061H 2010-02 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82212A Harness, Air Conditioner
82214A Wire, Lamp
82817 Protector, Wiring Harness, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
