Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

4 part groups · 2 illustrations

Illustrations

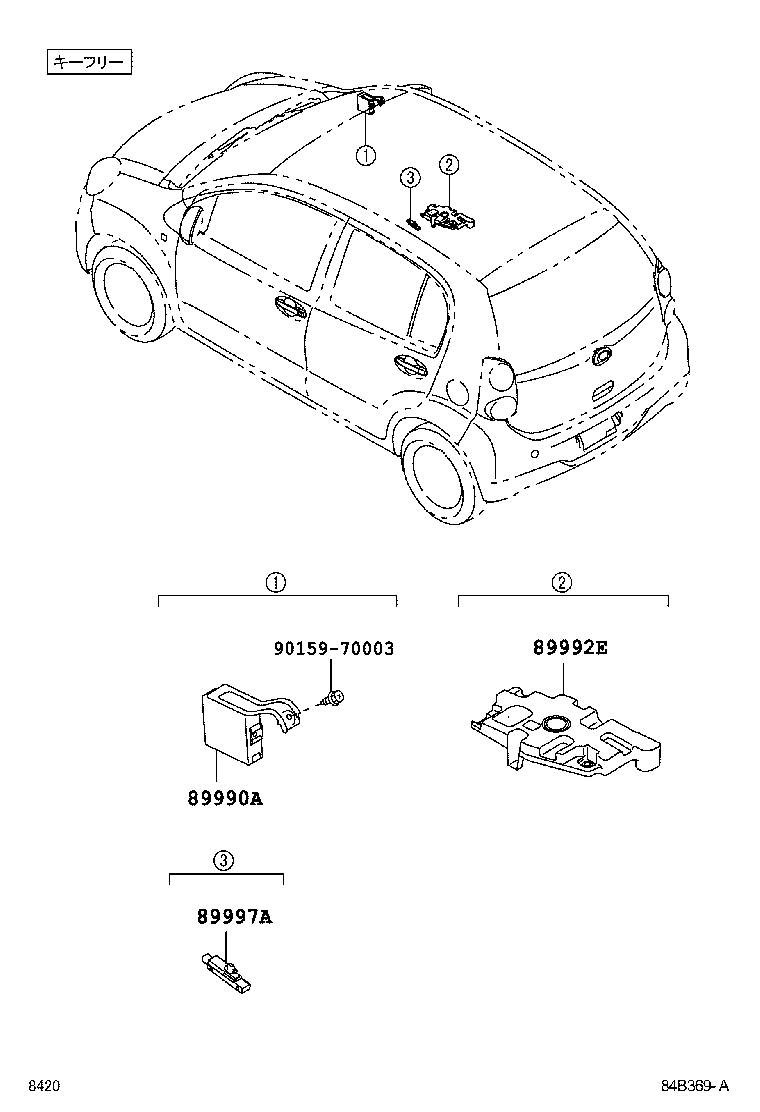

Figure 84B368 84B368 2010-02 → — Figure 84B369A 84B369A 2010-02 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89990A Computer Assy, Smart Key
89992E Case, Less Oscillator Electrical Key
89997A Antenna, Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
