Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

8 part groups · 2 illustrations

Illustrations

Figure 84B377G

84B377G 2010-02 → —

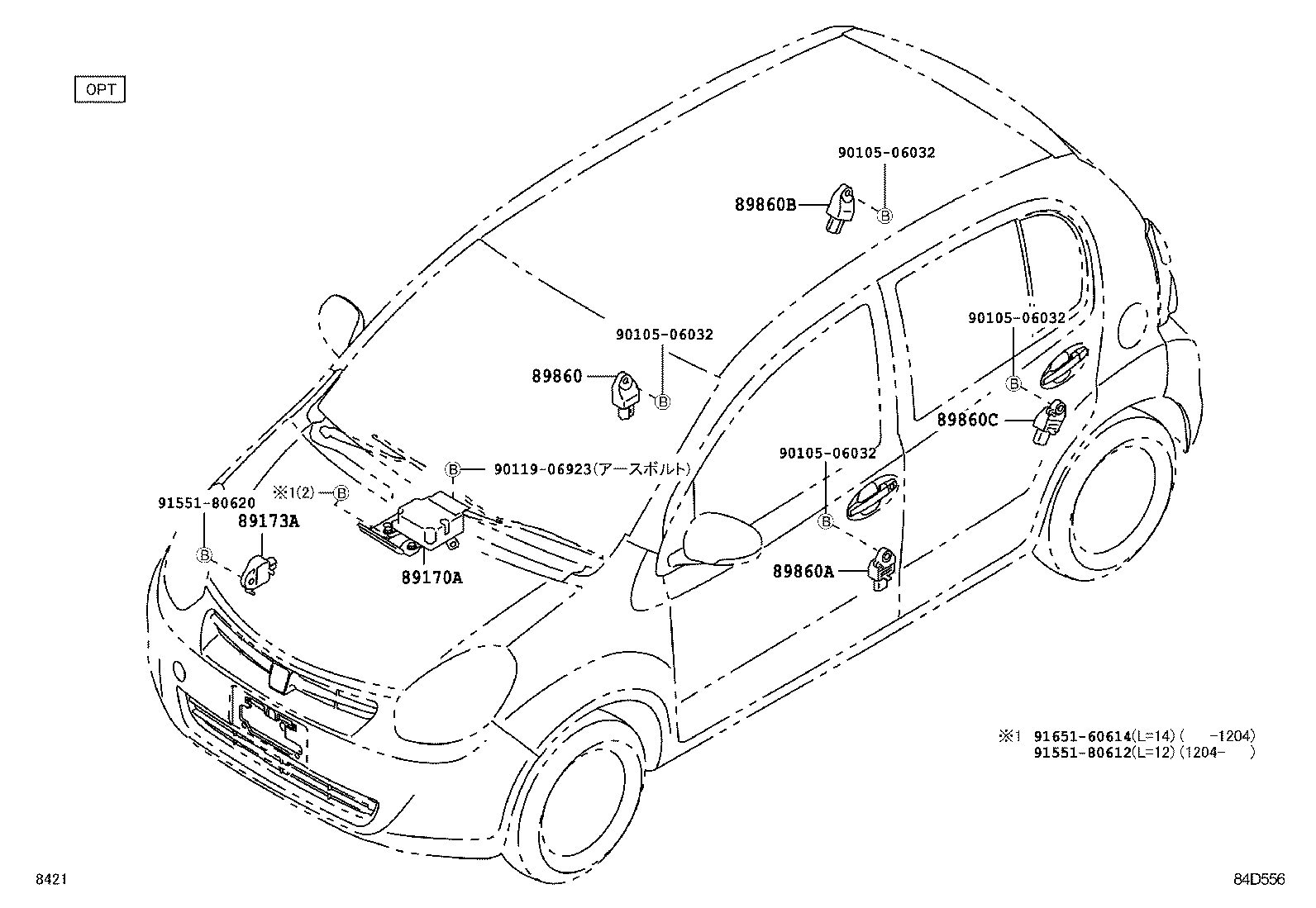

Figure 84D556

84D556 2010-02 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173A	Sensor, Airbag, Front RH
89237A	Bracket, Computer Unit
89537C	Cover, Computer
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH
89860B	Sensor Assy, Side Airbag, RH, NO.2
89860C	Sensor Assy, Side Airbag, LH, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
