Heating & Air Conditioning - Control & Air Duct

28 part groups · 4 illustrations

Illustrations

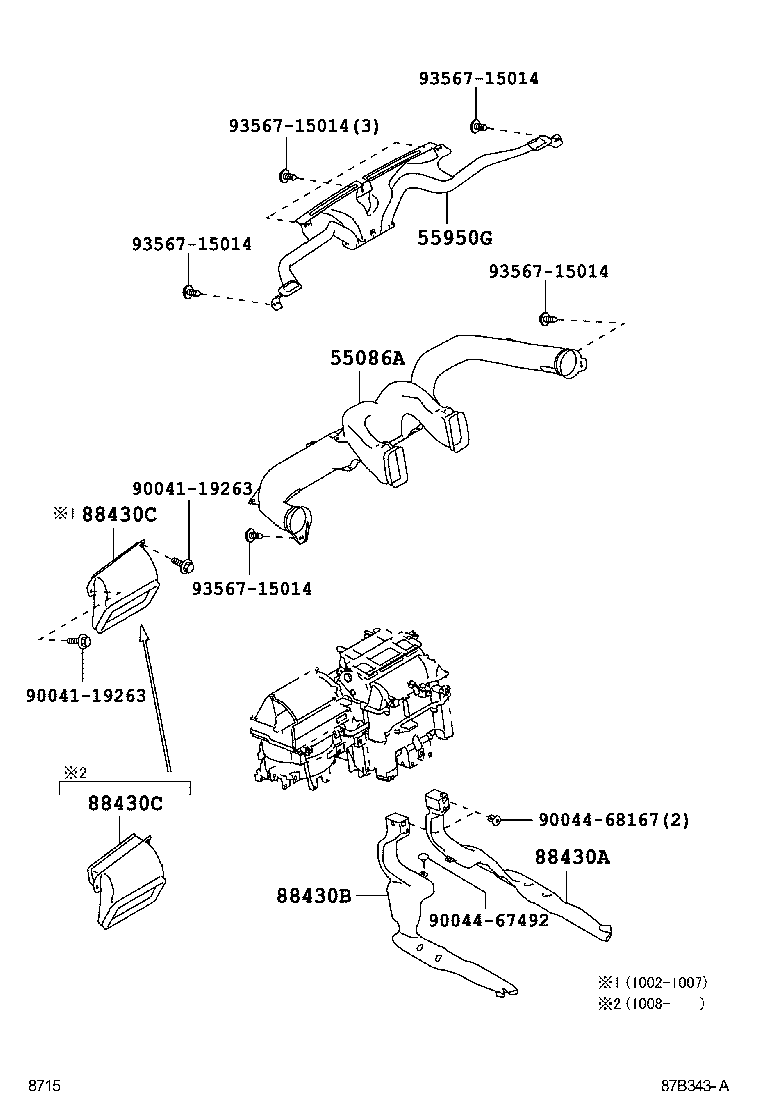

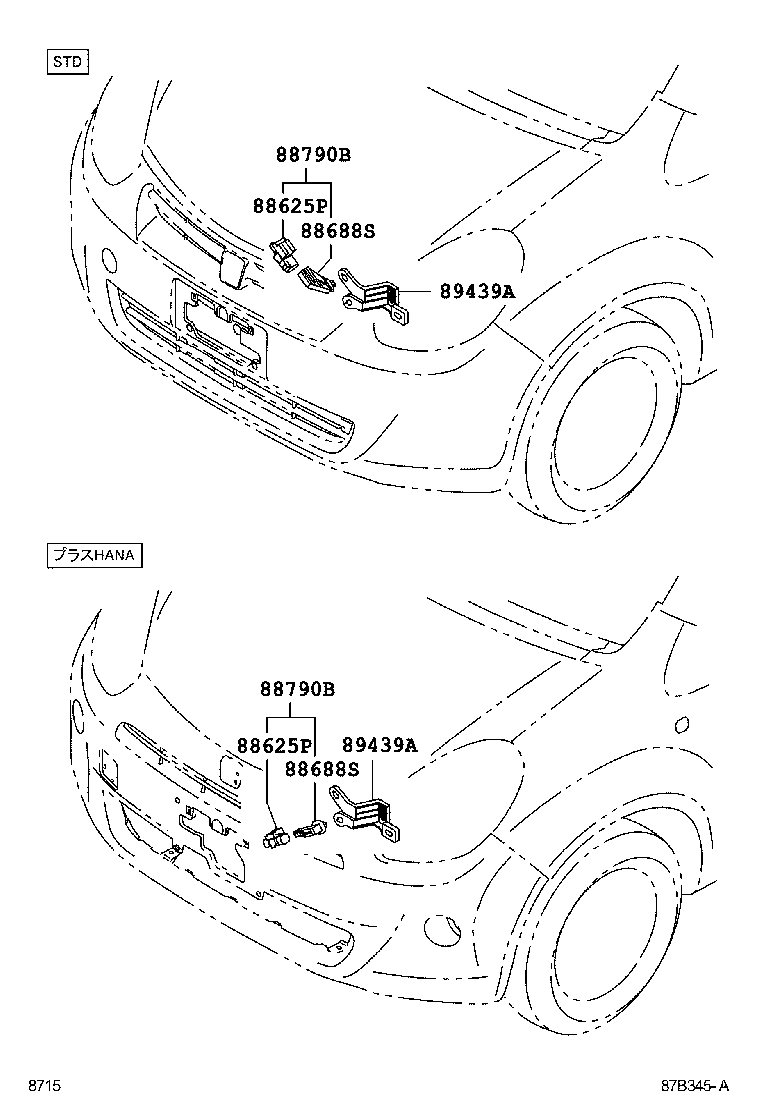

Figure 87F570A 87F570A 2010-02 → — Figure 87B343A 87B343A 2010-02 → — Figure 87B344A 87B344A 2010-02 → — Figure 87B345A 87B345A 2010-02 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55900 Control Assy, Air Conditioner
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55936B Switch, Center Cluster Module
55950G Nozzle Assy, Defroster
81940D Lens Assy, Heater Control
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
84731A Knob, Heater Blower Switch
84732K Bulb, Heater Blower Switch
88430A Duct Assy, Air, NO.1
88430B Duct Assy, Air, NO.2
88430C Duct Assy, Air, NO.3
88482C Cap, Cooler
88610C Switch Assy, Cooler Control
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88688S Bracket (FOR COOLER THERMISTOR)
88790B Thermistor Assy
89439A Bracket, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
