Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

7 part groups · 3 illustrations

Illustrations

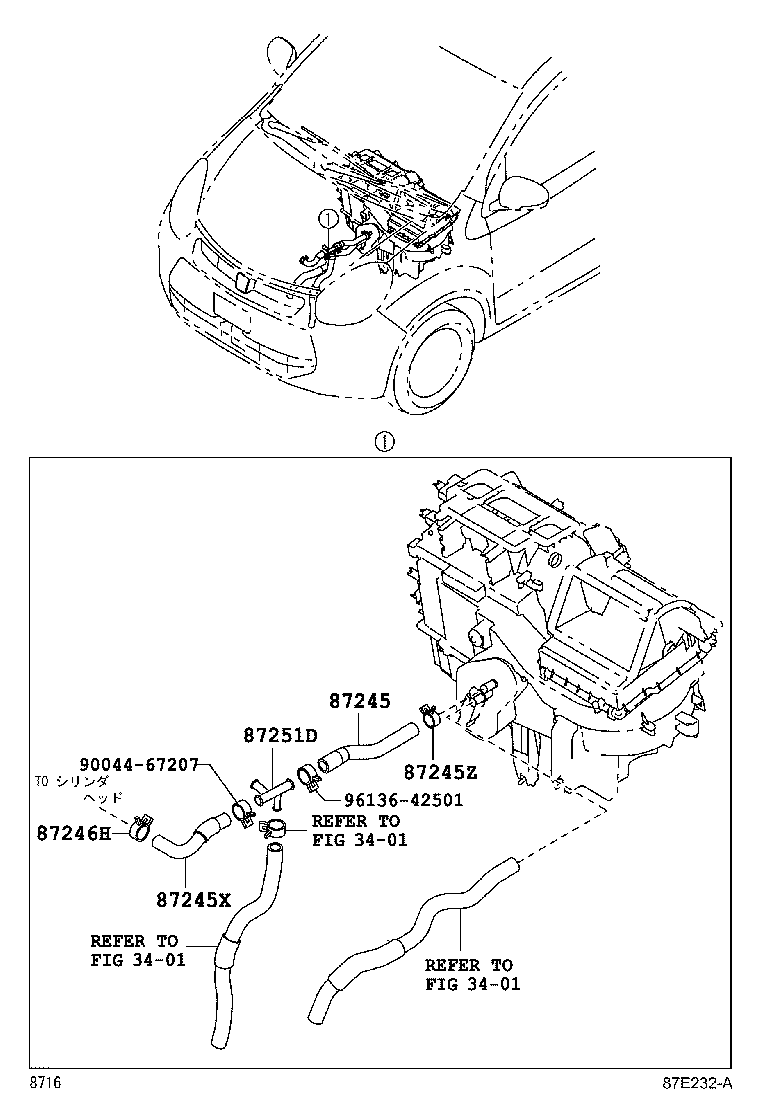

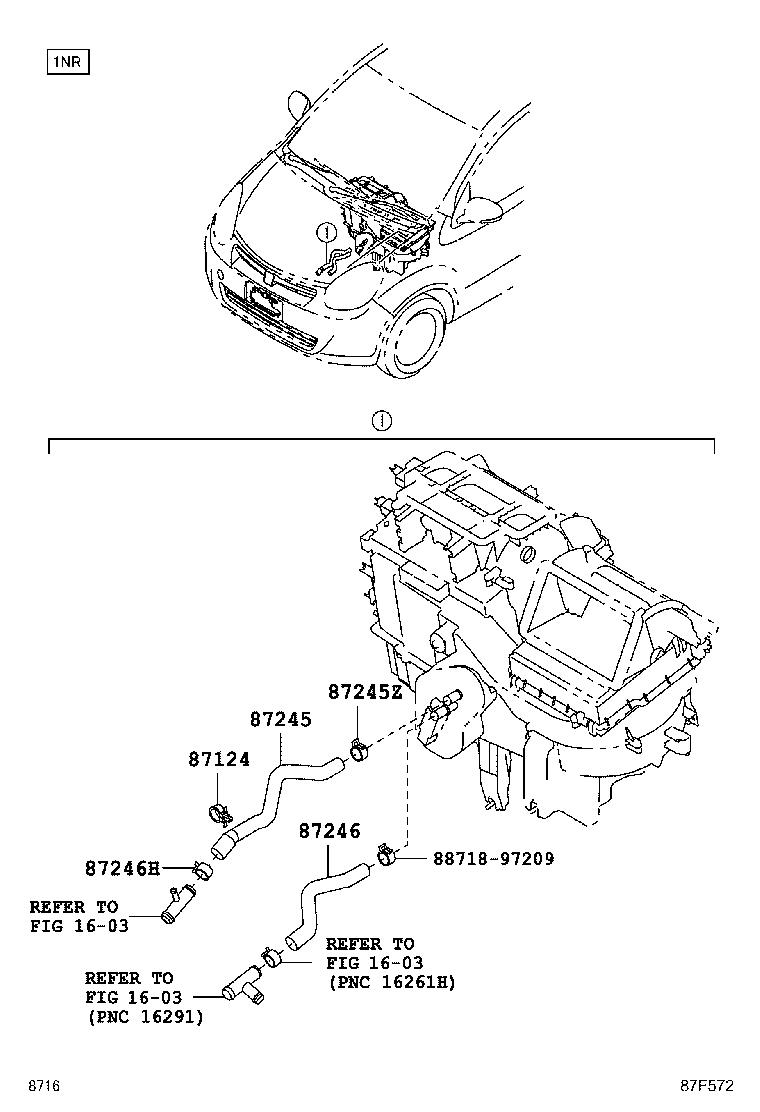

Figure 87F571 87F571 2010-02 → 2014-04 Figure 87F572 87F572 2010-02 → — Figure 87E232A 87E232A 2014-04 → —

Part groups

PNCDescription
87124 Clamp, Heater
87245 Hose, Heater Water, Inlet
87245X Hose, Heater Water
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87251D Joint, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
