Toyota Passo

2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

23 part groups · 4 illustrations

Illustrations

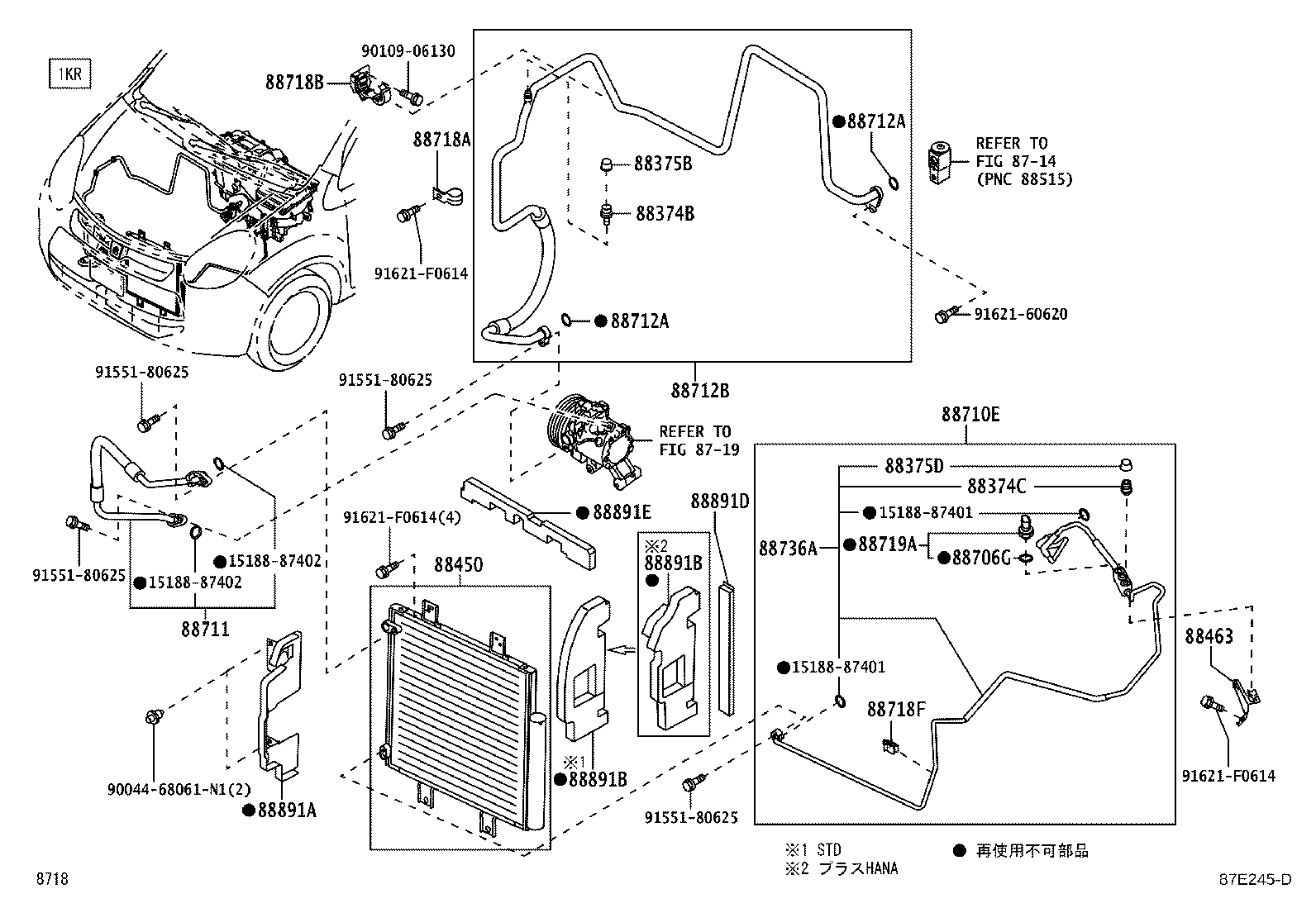

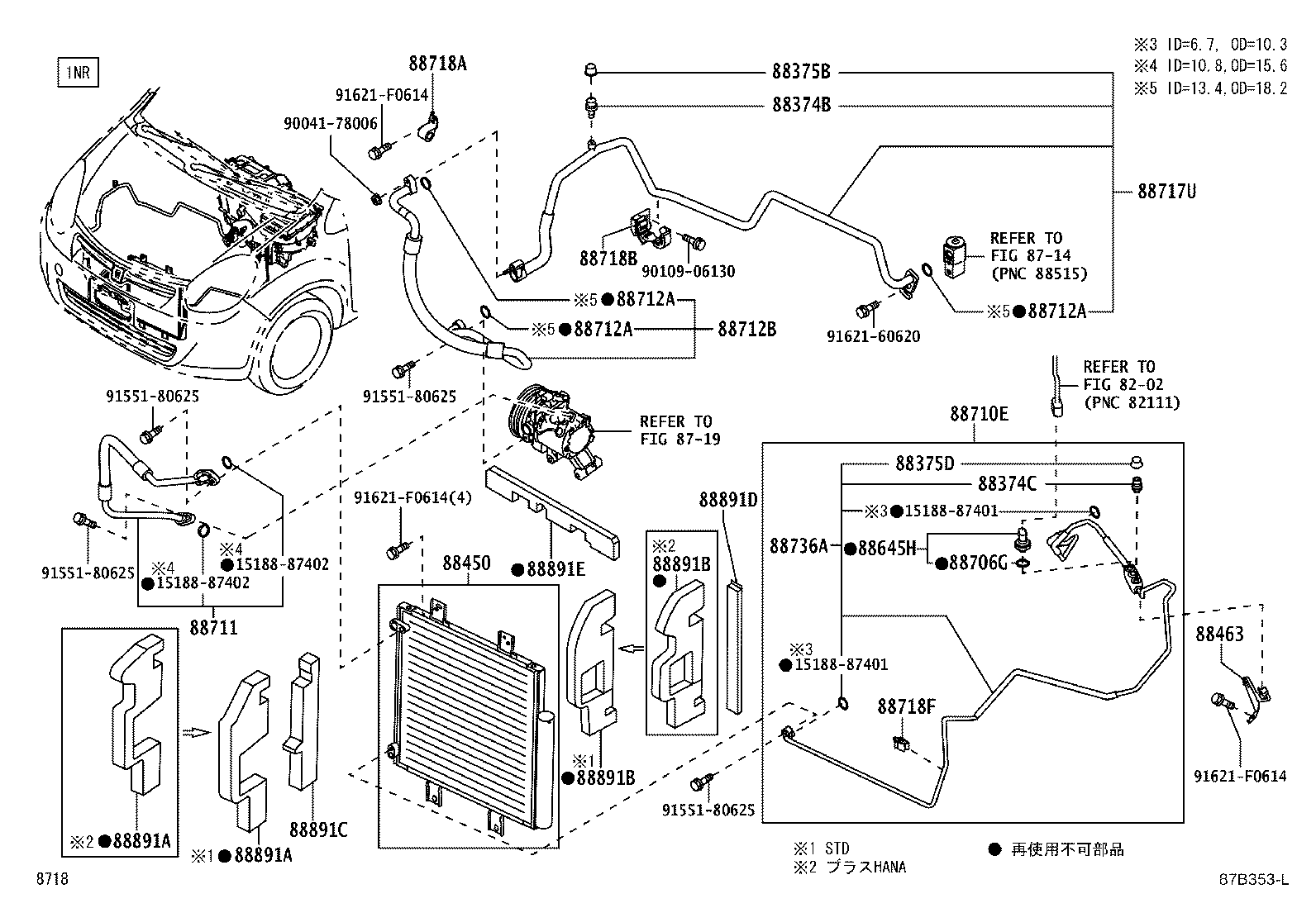

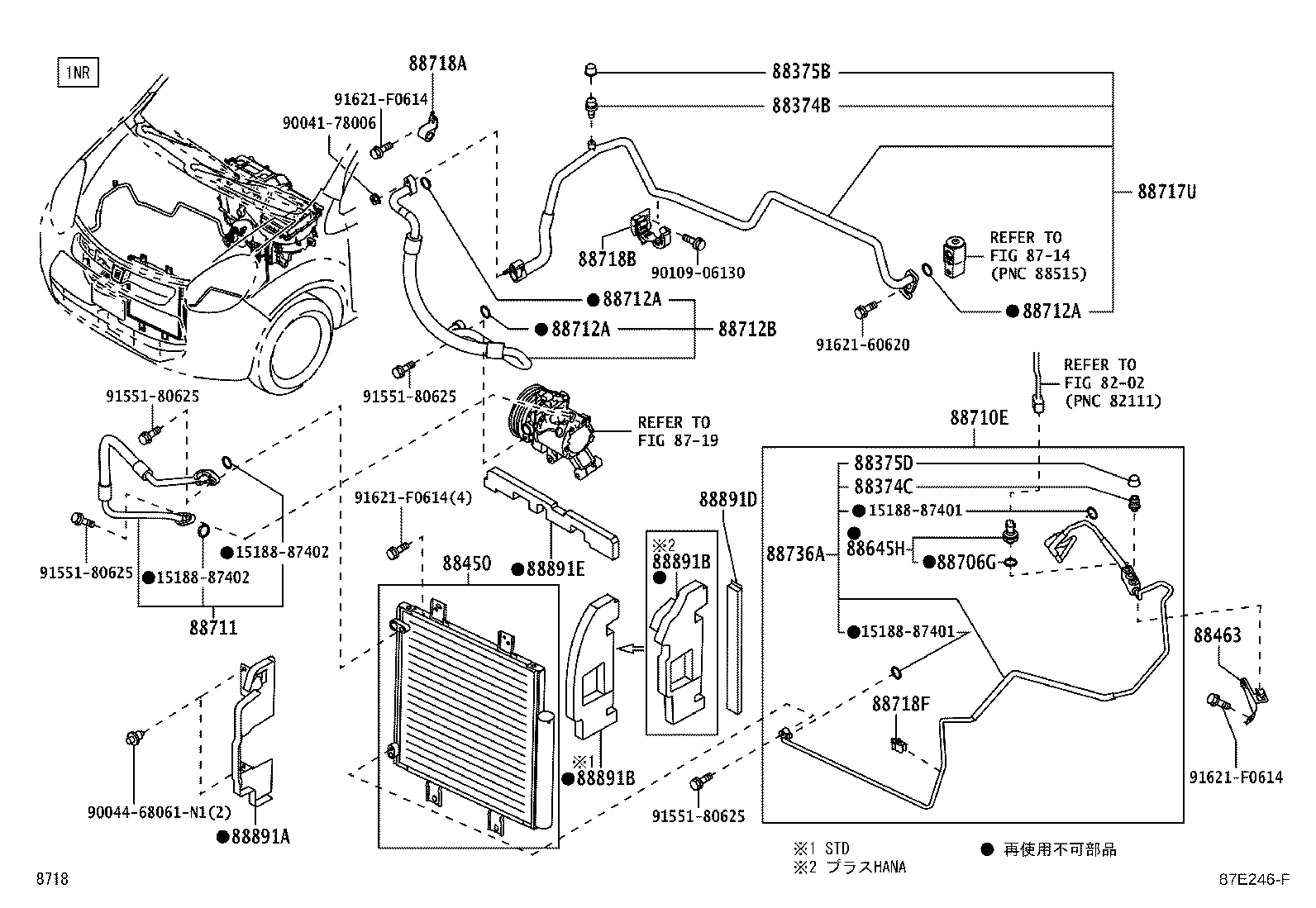

Figure 87B352L 87B352L 2010-02 → 2014-04 Figure 87E245D 87E245D 2014-04 → — Figure 87B353L 87B353L 2010-02 → 2014-04 Figure 87E246F 87E246F 2014-04 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88463 Bracket, Cooler Condenser, NO.1
88645H Switch, Pressure NO.1
88706G Ring, O(FOR LIQUID TUBE)
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88712B Hose, Cooler Refrigerant Suction
88717U Tube, Suction, NO.1
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88719A Sensor, Air Conditioner Pressure
88736A Tube, Liquid, A(FOR COOL BOX)
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
