Toyota Passo
2010-02 → 2016-04 · chassis KGC3#,NGC30 · catalogue 113130 · Japan
Supported model
Data version 2016-10

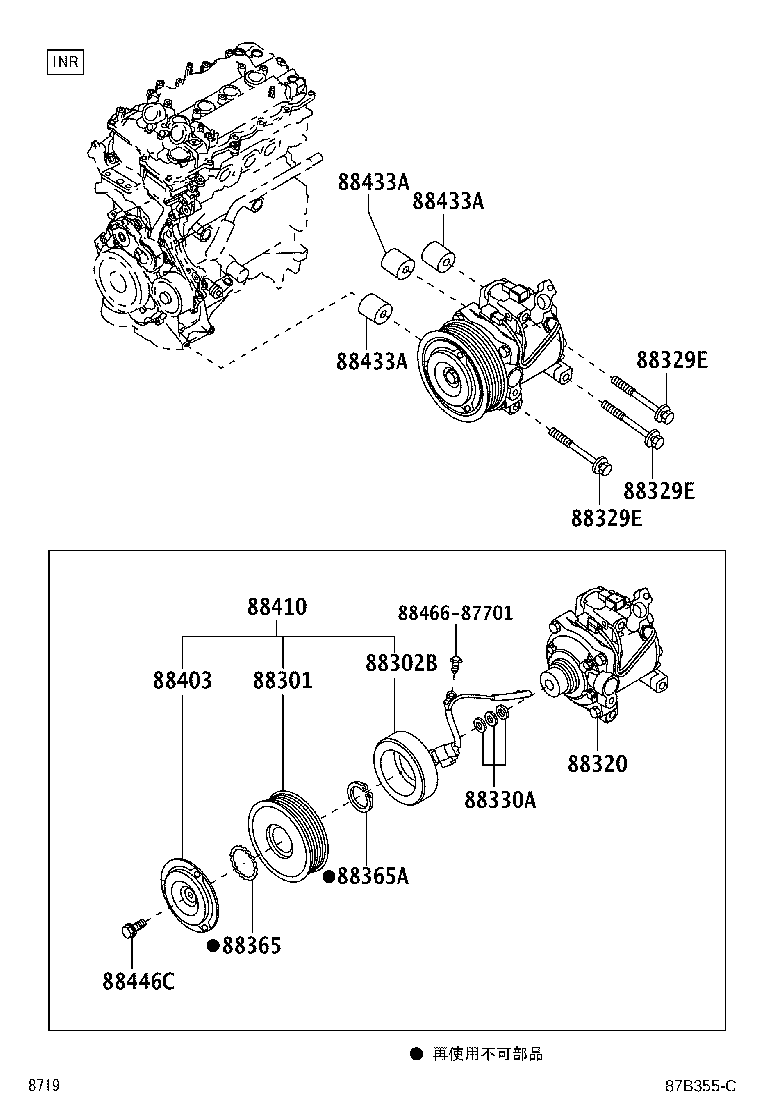

Heating & Air Conditioning - Compressor
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302B | Stator, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88329E | Bolt, Compressor, NO.1 |
| 88329F | Bolt, Compressor, NO.2 |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88365 | Ring, Snap |
| 88365A | Ring, Snap (FOR COMPRESSOR) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88433A | Stay, Compressor |
| 88446C | Bolt, Magnet Clutch Setting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
