Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

17 part groups · 2 illustrations

Illustrations

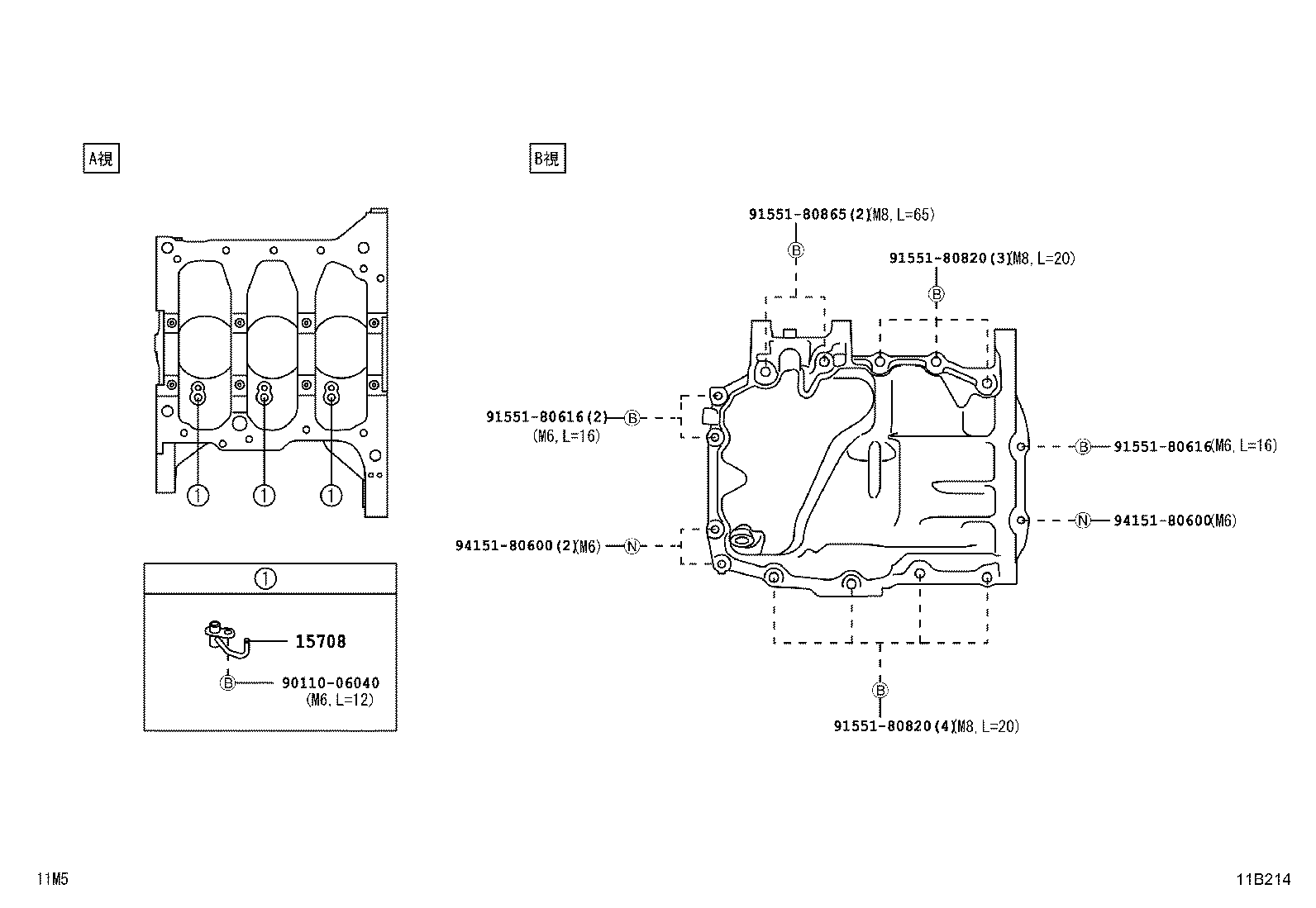

Figure 11F734 11F734 2016-04 → — Figure 11B214 11B214 2016-04 → —

Part groups

PNCDescription
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11411A Pin, Ring(FOR CYLINDER BLOCK NO.1 )
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434Y Pin, Straight(FOR OIL PAN)
11445 Spacer, Cylinder Block Water Jacket
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12121 Plate, Oil Pan Baffle, NO.1
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
