Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

6 part groups · 2 illustrations

Illustrations

Figure 179281B

179281B 2016-04 → —

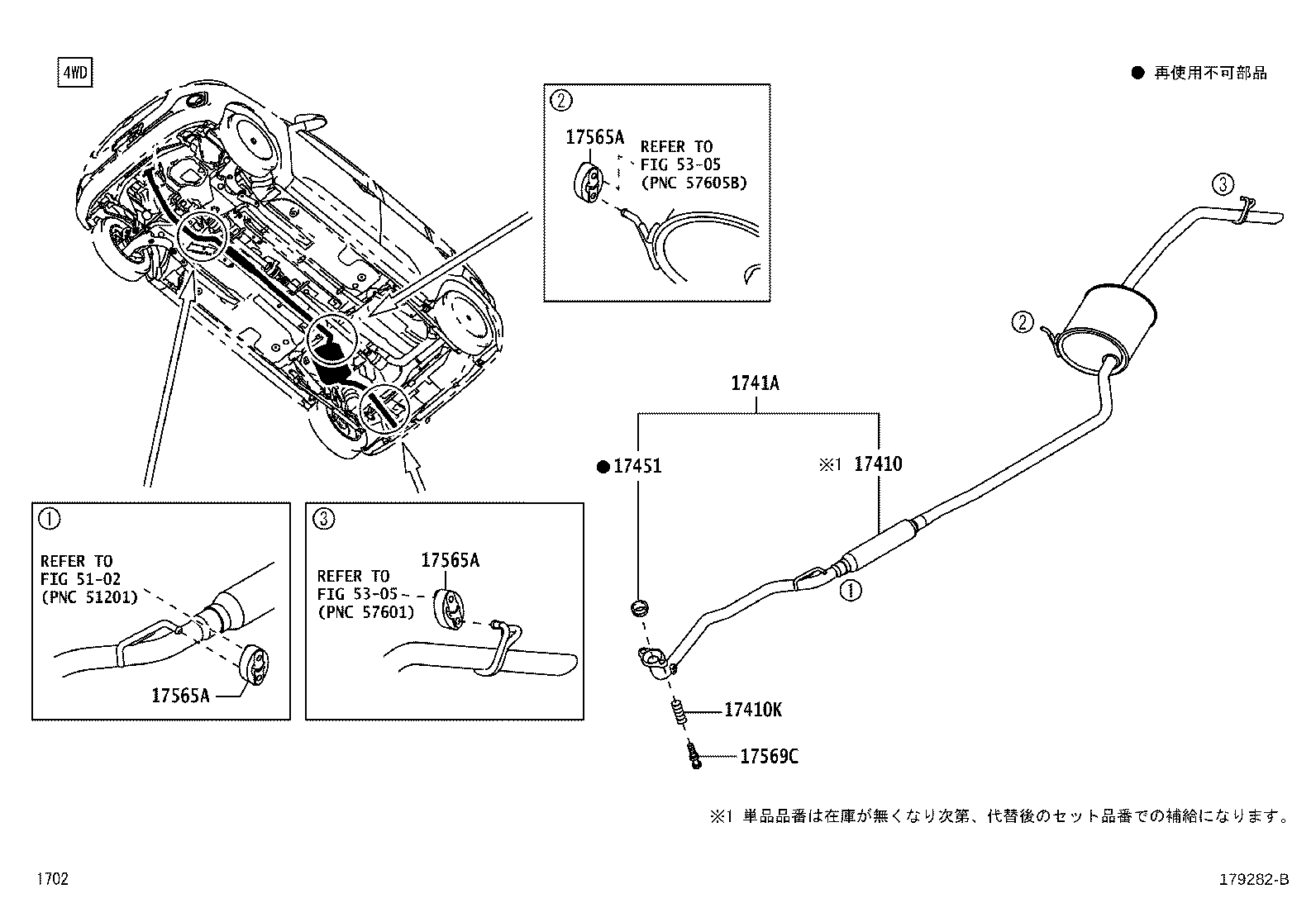

Figure 179282B

179282B 2016-04 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410K	Spring, Exhaust Pipe
1741A	Pipe Set, Exhaust
17451	Gasket, Exhaust Pipe
17565A	Support, Exhaust Pipe, NO.4
17569C	Bolt, Exhaust Pipe Support

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
