Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 2 illustrations

Illustrations

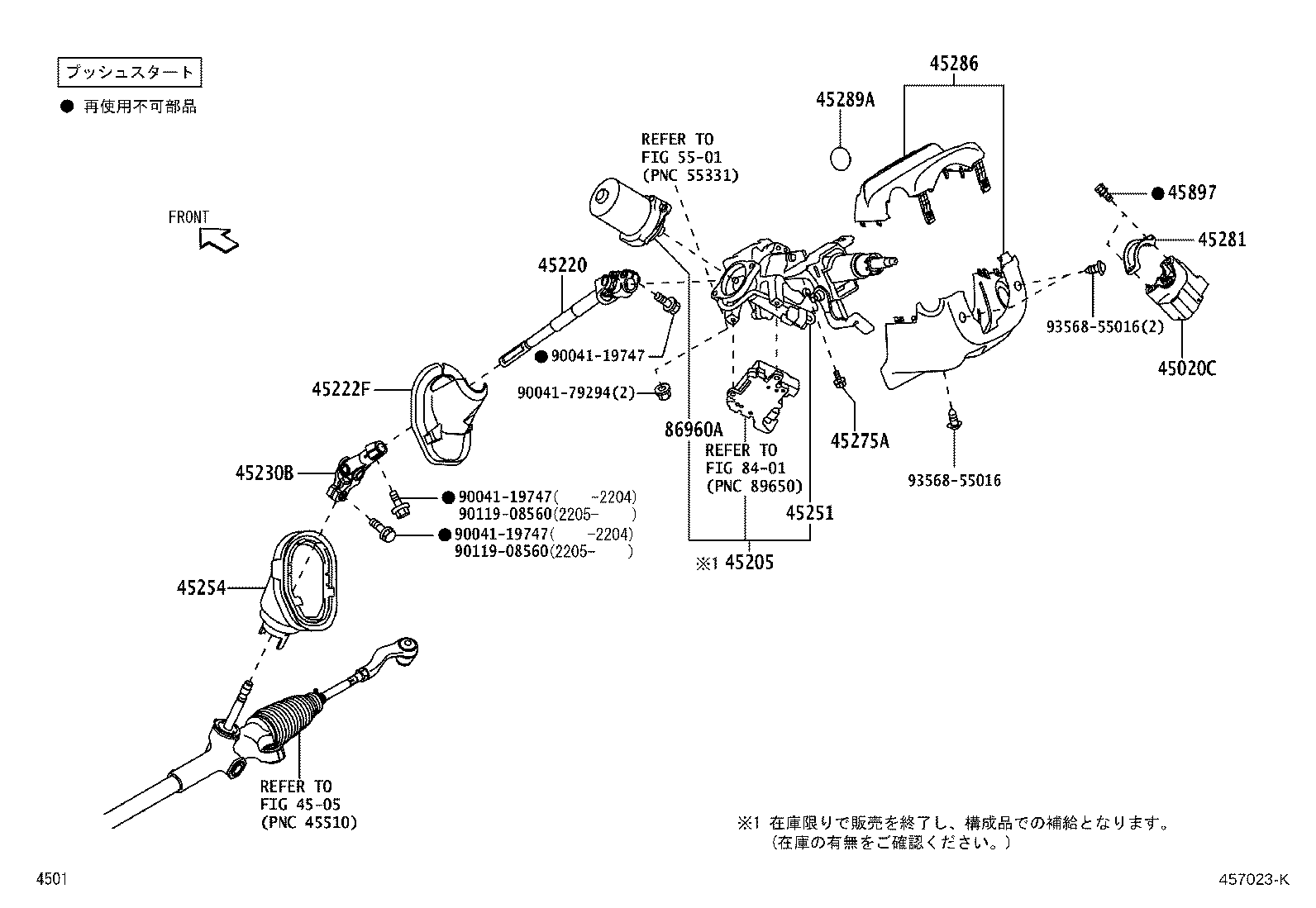

Figure 457022I 457022I 2016-04 → 2018-10 Figure 457023K 457023K 2016-04 → 2023-09

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45020C Actuator Assy, Steering Lock(W/ECU)
45205 Tube Sub-assy, Steering Column
45220 Shaft Assy, Steering Intermediate
45222F Cover, Dust
45230B Joint Assy, Steering Shaft Universal
45251 Tube Set, Steering Column
45254 Shield, Steering Column Hole
45275A Bolt, Hexagon(FOR STEERING COLUMN BRACKET)
45281 Housing, Steering Column
45286 Cover, Steering Column
45289A Support, Steering Column Cover
45897 Bolt, Steering Lock Set
86960A Motor Set, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
