Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

17 part groups · 2 illustrations

Illustrations

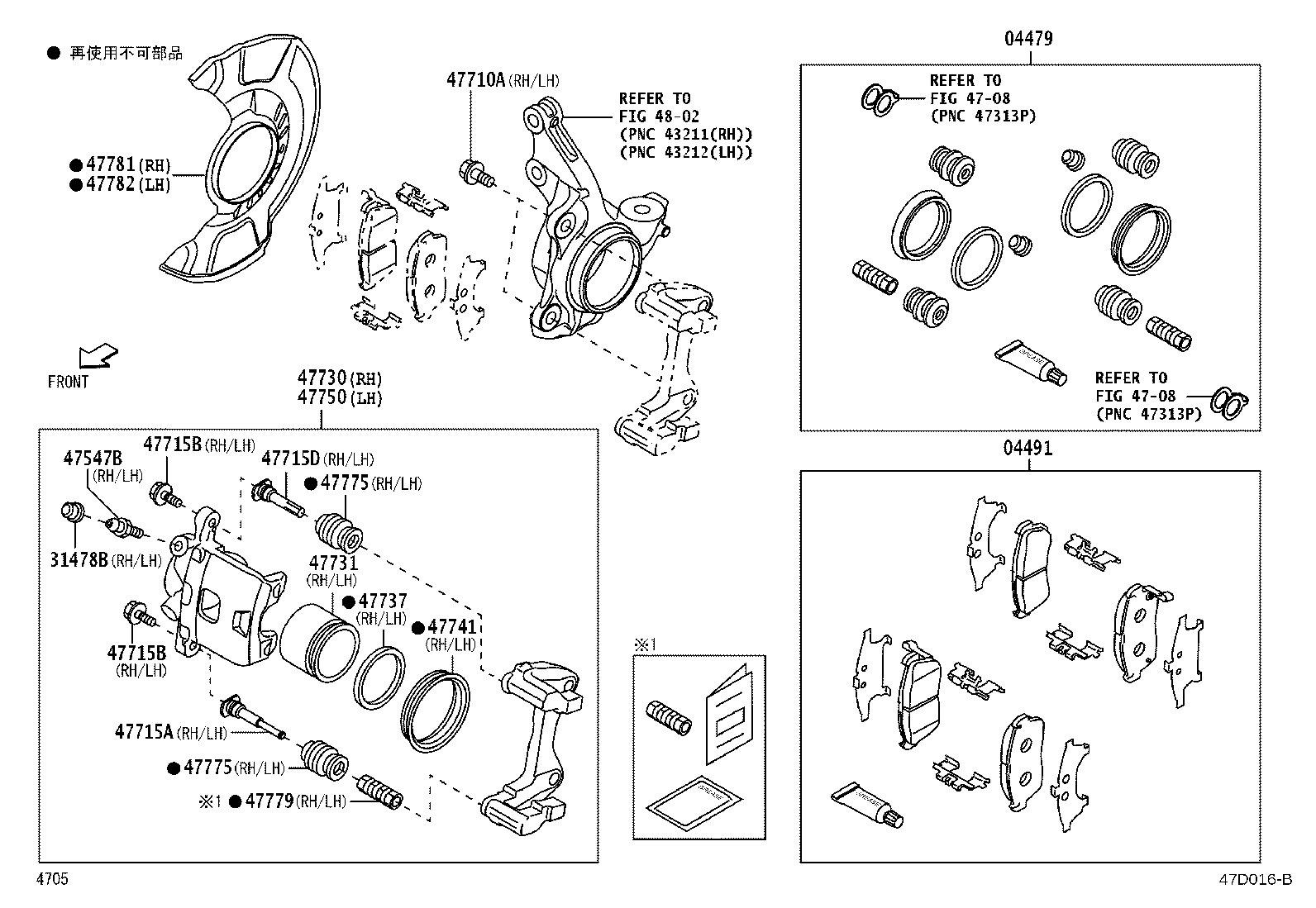

Figure 47A408C 47A408C 2016-04 → 2021-04 Figure 47D016B 47D016B 2021-04 → —

Part groups

PNCDescription
04479 Cylinder Kit, Disc Brake, Front
04491 Pad Kit, Disc Brake, Front
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47715A Pin, Front Disc Brake Cylinder Slide
47715B Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715D Pin, Front Disc Brake Cylinder Slide, NO.2
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47737 Seal, Front Disc Brake Cylinder Piston
47741 Boot, Front Disc Brake Cylinder
47750 Cylinder Assy, Disc Brake, LH
47775 Boot, Bush Dust(FOR FRONT DISC BRAKE)
47779 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
47781 Cover, Disc Brake Dust, Front RH
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
