Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

25 part groups · 2 illustrations

Illustrations

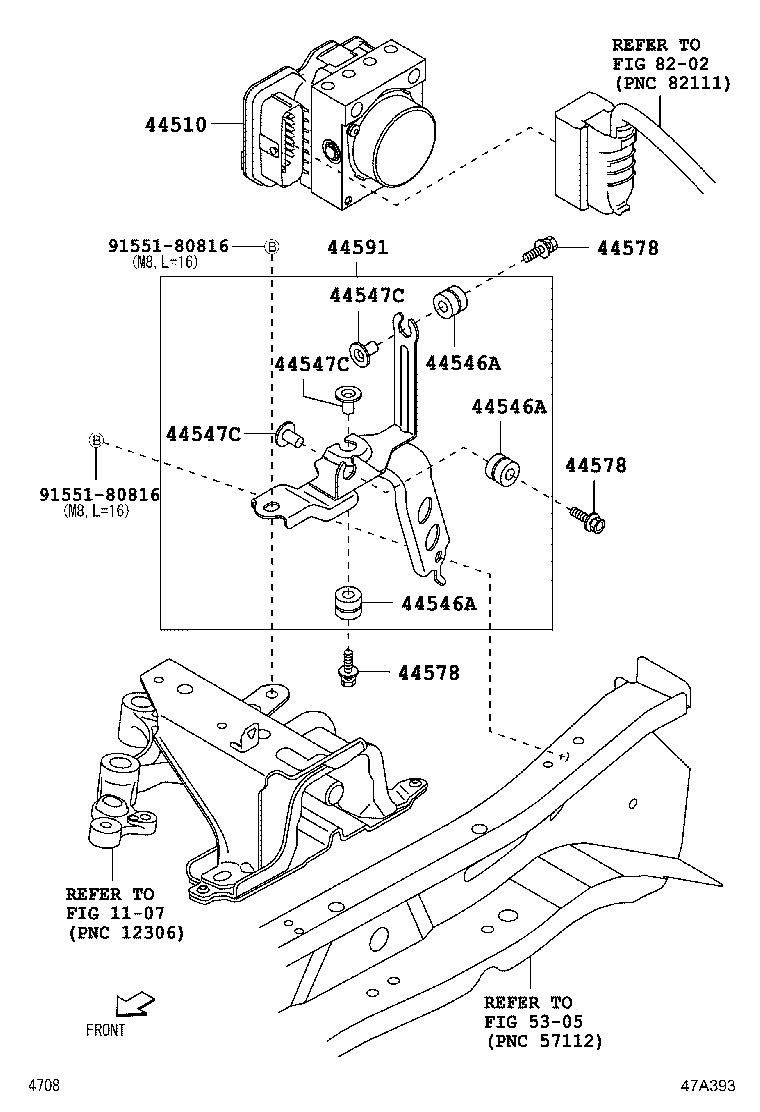

Figure 47A275C 47A275C 2016-04 → 2023-09 Figure 47A393 47A393 2016-04 → 2023-09

Part groups

PNCDescription
44510 Actuator Assy, Brake
44546A Cushion, Brake Actuator Bolt
44547C Spacer(FOR BRAKE ACTUATOR BRACKET)
44578 Bolt, Brake Actuator Cushion
44591 Bracket, Brake Actuator, NO.1
47311 Tube, Front Brake, NO.1
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313J Hose, Flexible, NO.2(FOR FRONT)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47322 Tube, Rear Brake, NO.2
47323B Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47371A Clamp, Brake Tube, NO.1
47371G Clamp, Brake Tube, NO.11
47371H Clamp, Brake Tube, NO.12
47372 Clamp, Brake Tube, NO.2
47375 Clamp, Brake Tube, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
