Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

31 part groups · 2 illustrations

Illustrations

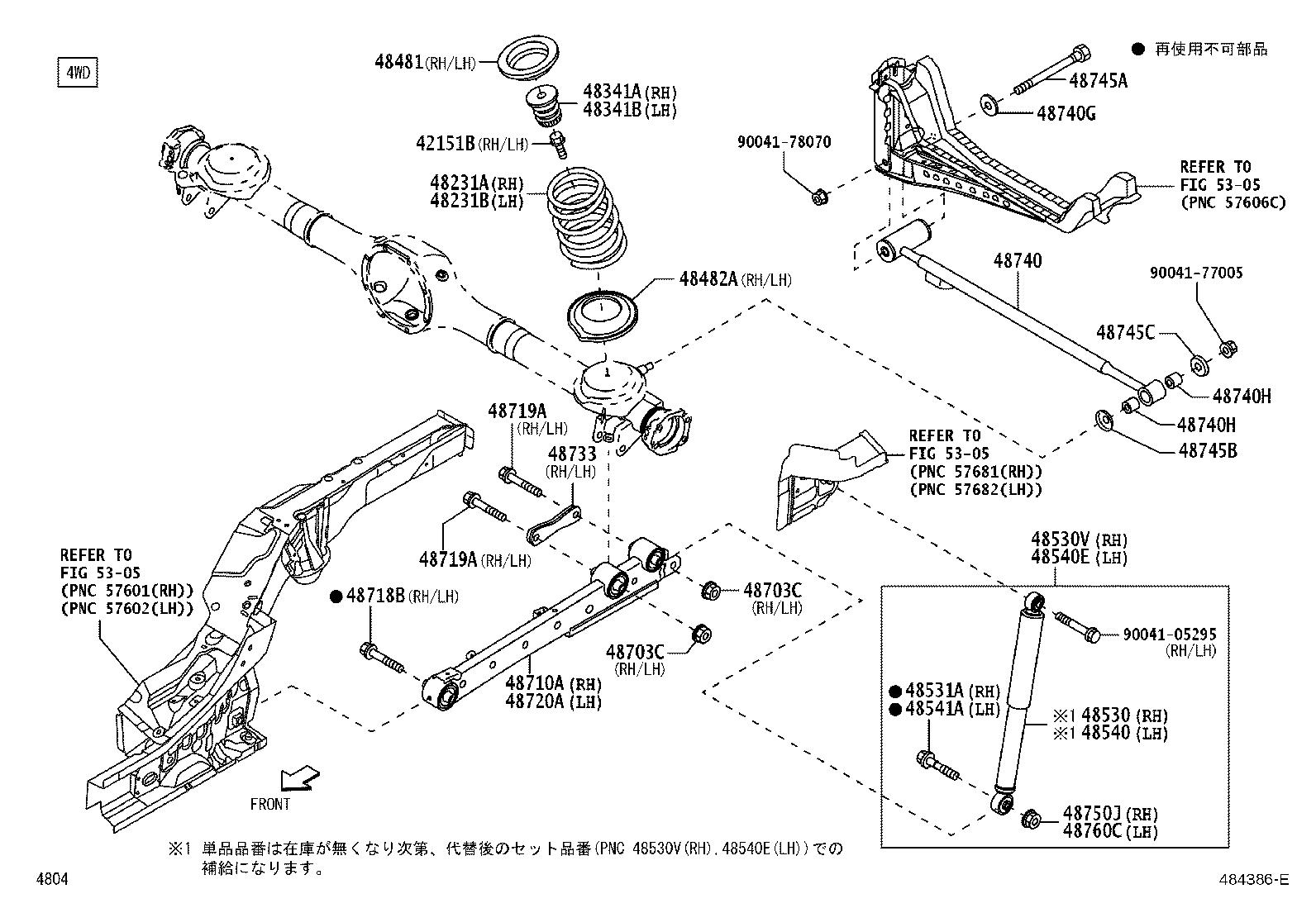

Figure 484385E 484385E 2016-04 → — Figure 484386E 484386E 2016-04 → —

Part groups

PNCDescription
42151B Bolt, Hexagon (FOR REAR SPRING SEAT BOLT)
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48481 Seat, Rear Spring, Upper
48482A Seat, Rear Spring, Lower
48530 Absorber Assy, Shock, Rear RH
48530V Absorber Set, Shock, Rear RH
48531A Bolt, Union(FOR REAR SHOCK ABSORBER RH)
48540 Absorber Assy, Shock, Rear LH
48540E Absorber Set, Shock, Rear LH
48541A Bolt, Union(FOR REAR SHOCK ABSORBER LH)
48703C Nut(FOR REAR SUSPENSION ARM)
48710A Arm Assy, Rear Suspension, NO.1 RH
48710J Arm Assy, Rear Suspension, NO.1
48718B Shaft, Rear Suspension Lower Arm, NO.1
48719A Shaft, Rear Suspension Lower Arm, NO.2
48720A Arm Assy, Rear Suspension, NO.1 LH
48725A Bolt(FOR LOWER CONTROL ARM)
48733 Reinforcement, Rear Suspension Arm
48740 Rod Assy, Rear Lateral Control
48740G Washer, Plate, NO.1(FOR REAR LATERAL CONTROL ROD)
48740H Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48745A Bolt, Hexagon(FOR LATERAL CONTROL ROD)
48745B Washer, Lateral Control Rod Cushion
48745C Washer, Lateral Control Rod Cushion
48750J Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760C Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48812 Bar, Stabilizer, Rear
48812A Bolt, Stabilizer Rear Bar
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
