Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 2 illustrations

Illustrations

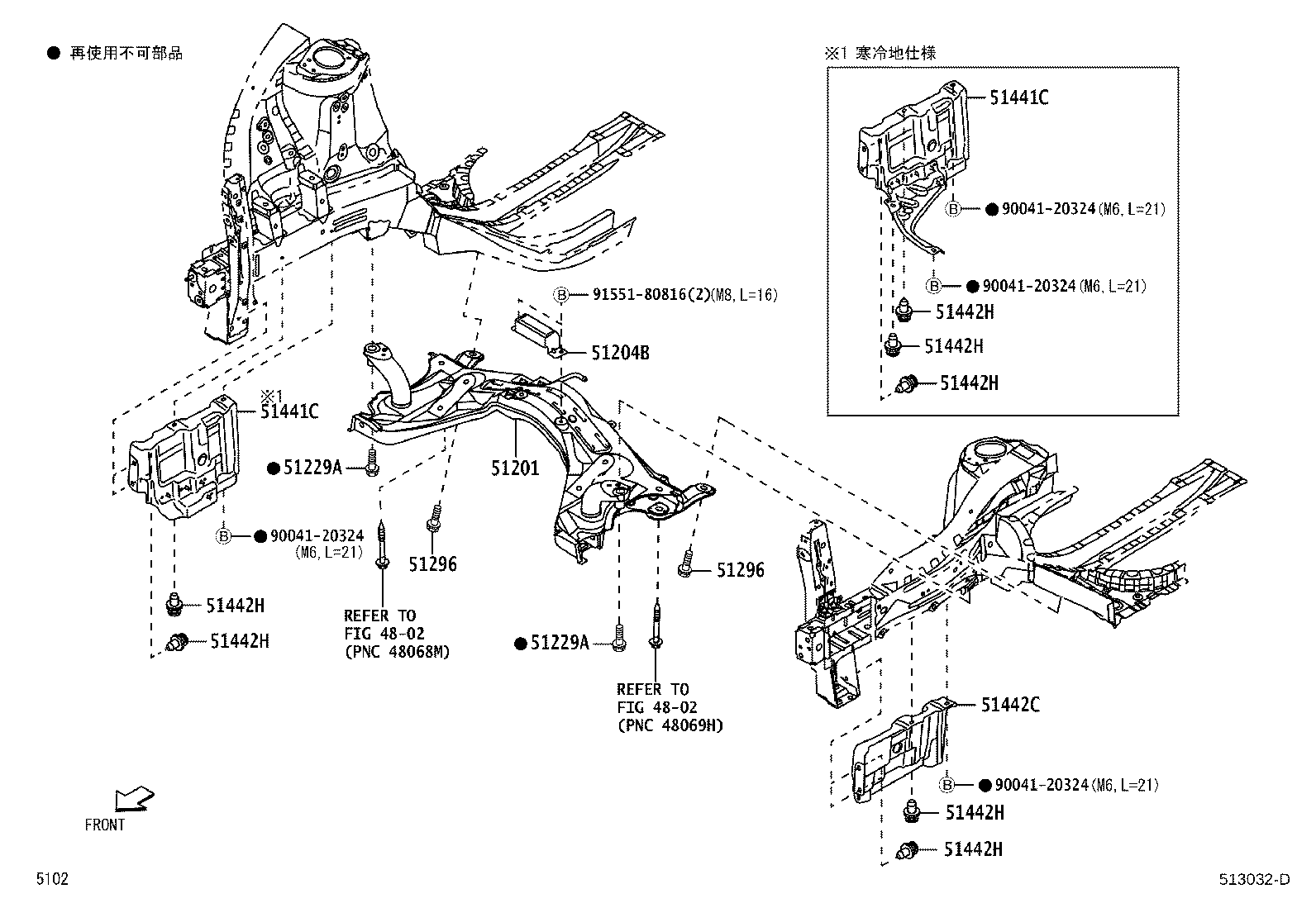

Figure 513031C 513031C 2016-04 → — Figure 513032D 513032D 2016-04 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204B Damper Sub-assy, Front Suspension Member
51223A Cover, Engine Mounting Hole
51229A Bolt, Front Suspension Member Mounting
51296 Bolt, Front Suspension Member Mounting
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51442H Clip, Engine Under Cover, NO.2
51454 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
